Digital Signal M3663.03B DVB-T2 Universal LCD TV Controller Driver Board TV/PC/VGA/HDMI/USB+7 Key Bu Digital Signal M3663.03B DVB-T2 Universal LCD TV Controller Driver Board TV/PC/VGA/HDMI/USB+7 Key Bu Digital Signal M3663.03B DVB-T2 Universal LCD TV Controller Driver Board TV/PC/VGA/HDMI/USB+7 Key Bu Digital Signal M3663.03B DVB-T2 Universal LCD TV Controller Driver Board TV/PC/VGA/HDMI/USB+7 Key Bu Digital Signal M3663.03B DVB-T2 Universal LCD TV Controller Driver Board TV/PC/VGA/HDMI/USB+7 Key Bu
Digital Signal M3663.03B DVB-T2 Universal LCD TV Controller Driver Board TV/PC/VGA/HDMI/USB+7 Key Bu Digital Signal M3663.03B DVB-T2 Universal LCD TV Controller Driver Board TV/PC/VGA/HDMI/USB+7 Key Bu Digital Signal M3663.03B DVB-T2 Universal LCD TV Controller Driver Board TV/PC/VGA/HDMI/USB+7 Key Bu Digital Signal M3663.03B DVB-T2 Universal LCD TV Controller Driver Board TV/PC/VGA/HDMI/USB+7 Key Bu Digital Signal M3663.03B DVB-T2 Universal LCD TV Controller Driver Board TV/PC/VGA/HDMI/USB+7 Key Bu

Digital Signal M3663.03B DVB-T2 Universal LCD TV Controller Driver Board TV/PC/VGA/HDMI/USB+7 Key Bu

New 20 available
R643.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
654096783


Note:M3663.03Bis not support Dolby Audio AC3 function.
Feature:

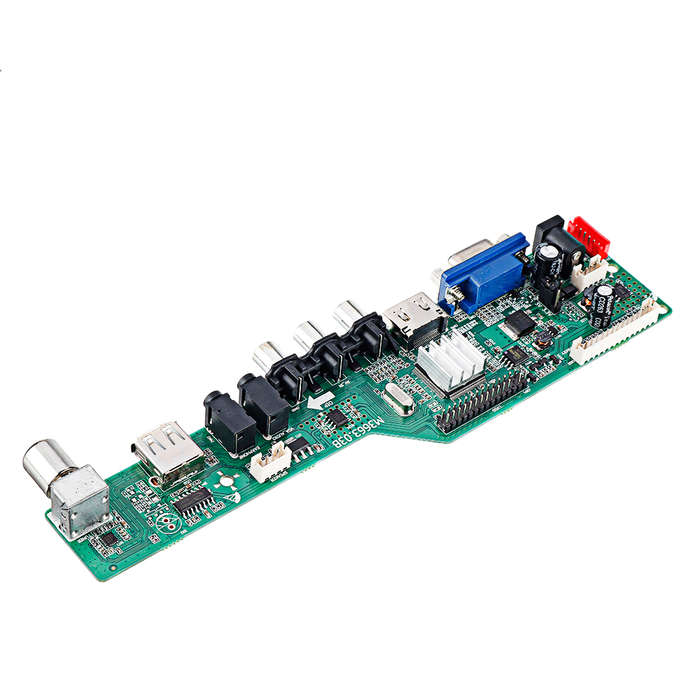

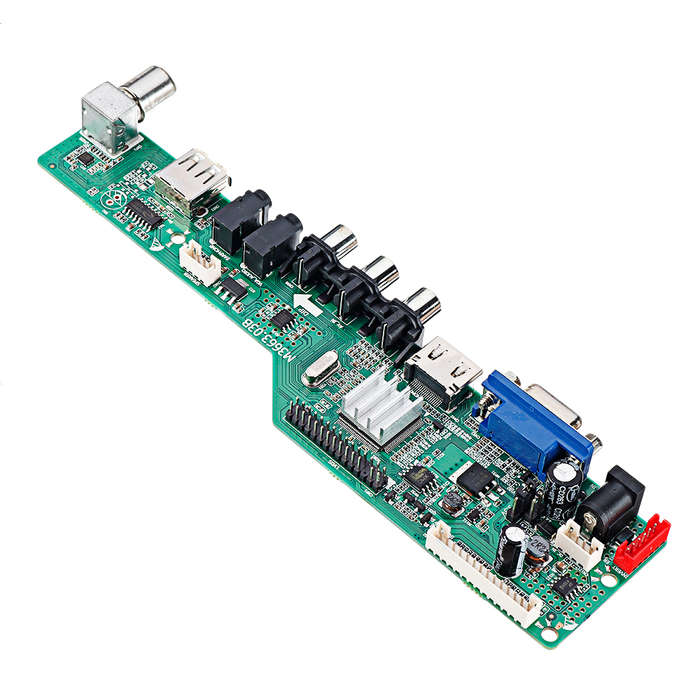

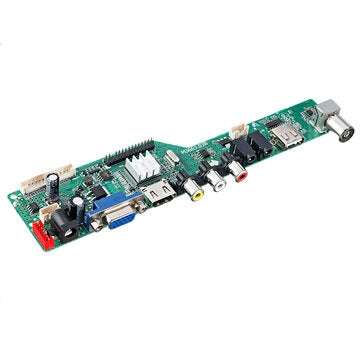

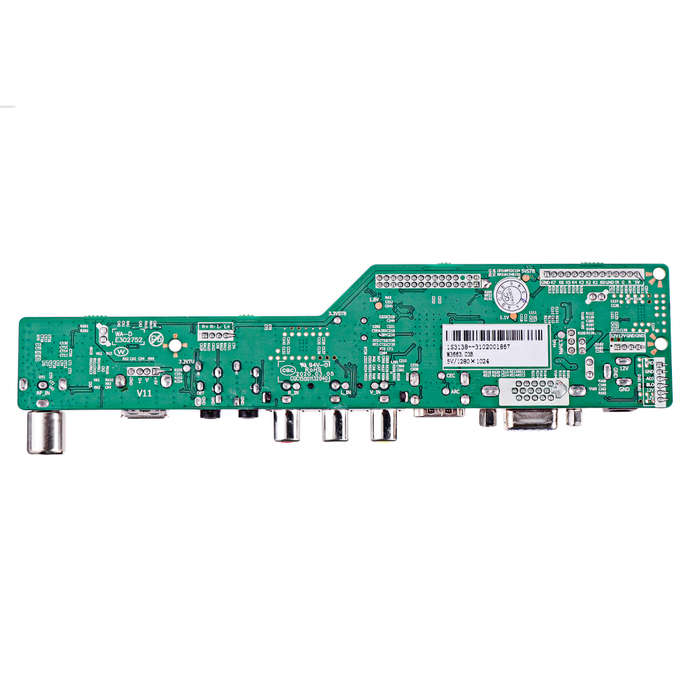

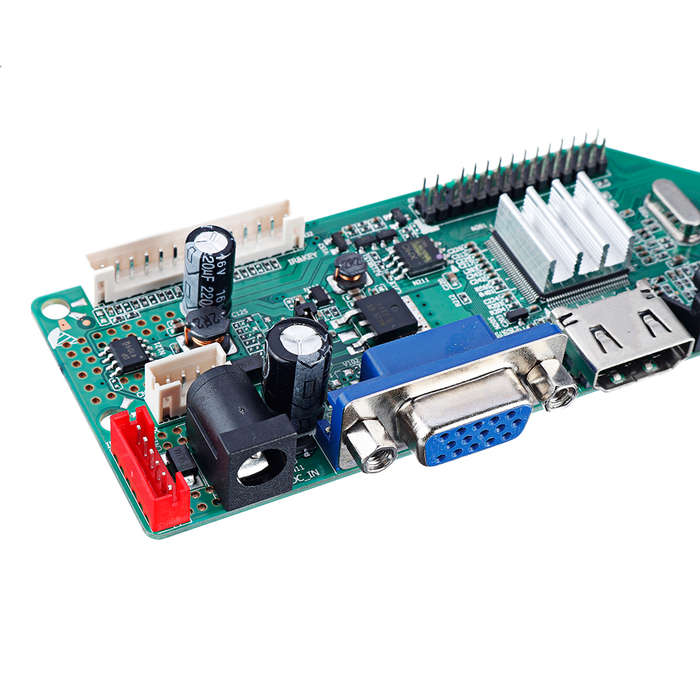

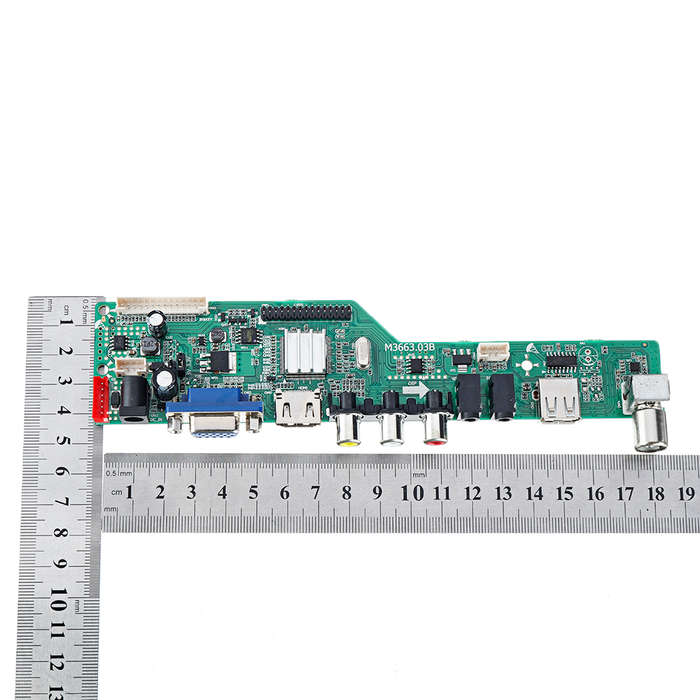

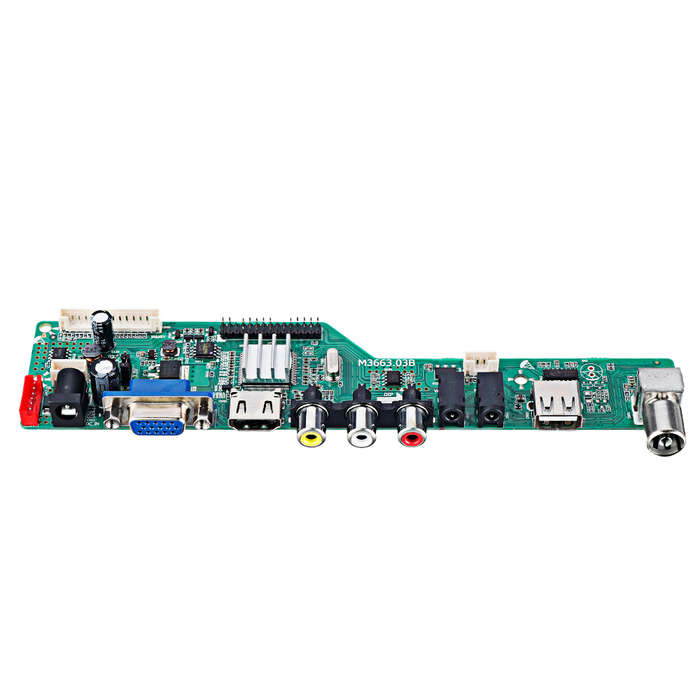

1. M3663.03B is a multi-purpose and energy-efficient LCD TV control board with single/dual 8bit LVDS interface, the resolution of LCDTV panel is up to 1920*1080. 2. M3663.03B supports DVB-T2/DVB-T/DVB-C and analog TV front-end (PAL/SECAM/NTSC) demodulator. HDMI, USB , PC-RGB, Earphone output, AV1 video and audio input an audio class D amplifier which supports 2x3W (4ohm) outputs is built in. 3. M3663.03B Software upgrade and multimedia playback function are applicable with the USB slot. 4. M3663.03B power supports DC12V input. It fits for 28panel.
Specification:
LCD Panel: TFT-LCD, LED backlight LCD Resolution: up to 1920*1080 Interface: single/dual 8bit LVDS Panel power: 12V/5V/3.3V OSD Language: English/French/Spanish/Russian/German/Italian/Turkish/Portuguese Relative Humidity: a80% Storage Temperature: -10+60a Operation Temperature: 0+40a
Package includes:

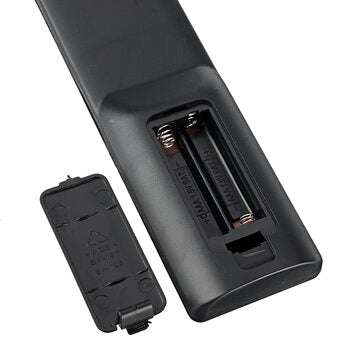

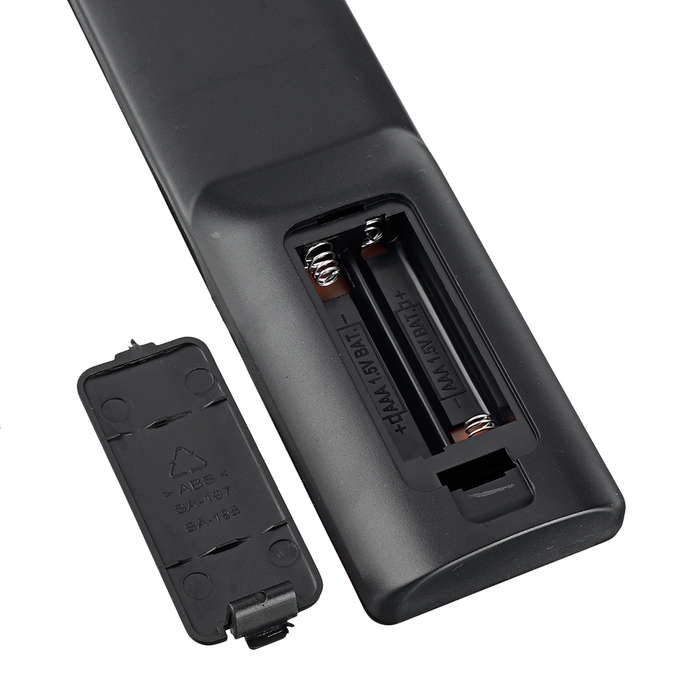

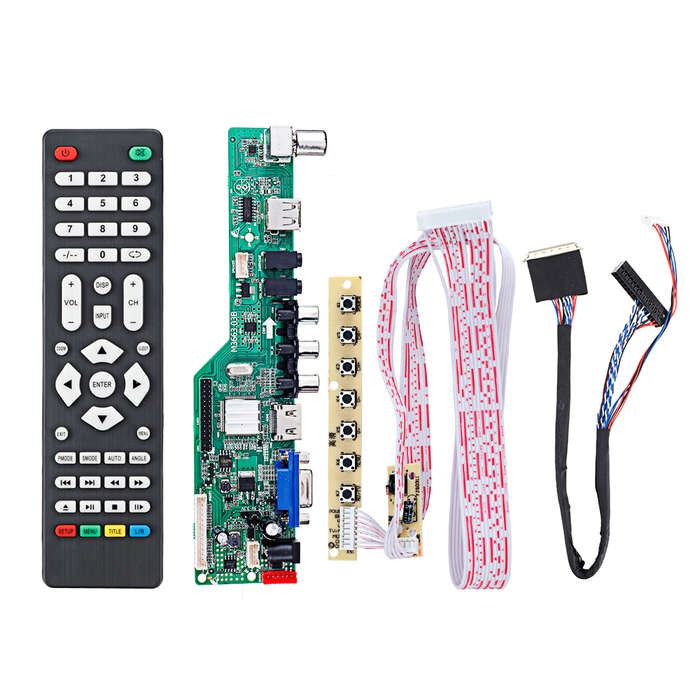

1 x Driver board 1 x English Remote control (battery not includes) 1 x 7 key button 1 x 1ch 6bit 40pins lvds cable 250mm length
