Specifications:

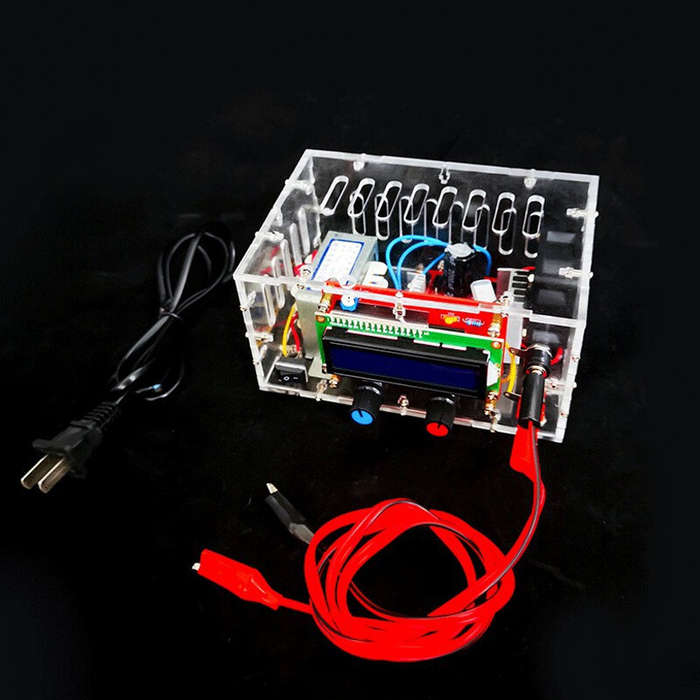

Model: 0~28V Adjustable DC Power Supply
Product Code: TL-FK-569
Input Voltage: DC 12V (Transformer not included, self-selection required)
Output Voltage: 0-28V Adjustable
Output Current: 0-2A Adjustable
Maximum Power: 56W
Voltage Stability: 0.05%
Shell Material: Transparent Acrylic
Dimensions:

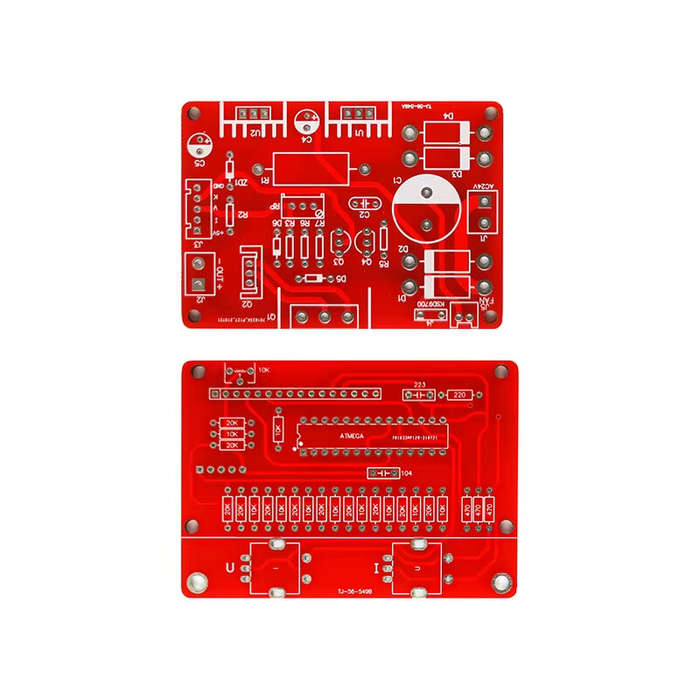

PCB Size: 80x57mm, 77x54mm
Acrylic Shell Size: 100x146x75mm

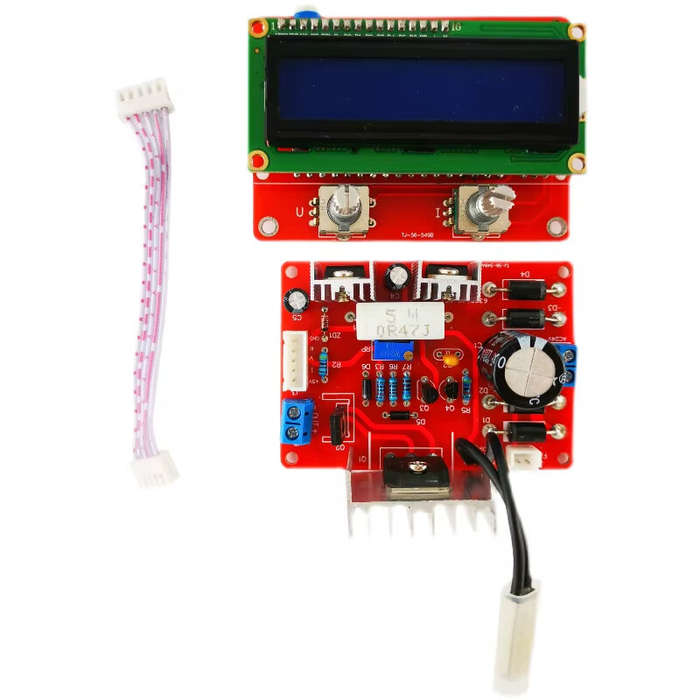

Note: This is a DIY kit, you need to assemble and solder.
Features:
1. Adjustable Voltage & Current
Customizable voltage range between 0-28V and current up to 2A, allowing precise control for diverse lab and DIY applications.
2. Safety-Oriented Design
Includes short circuit current limiting and overheating protection features, ensuring reliable operation for sensitive electro
