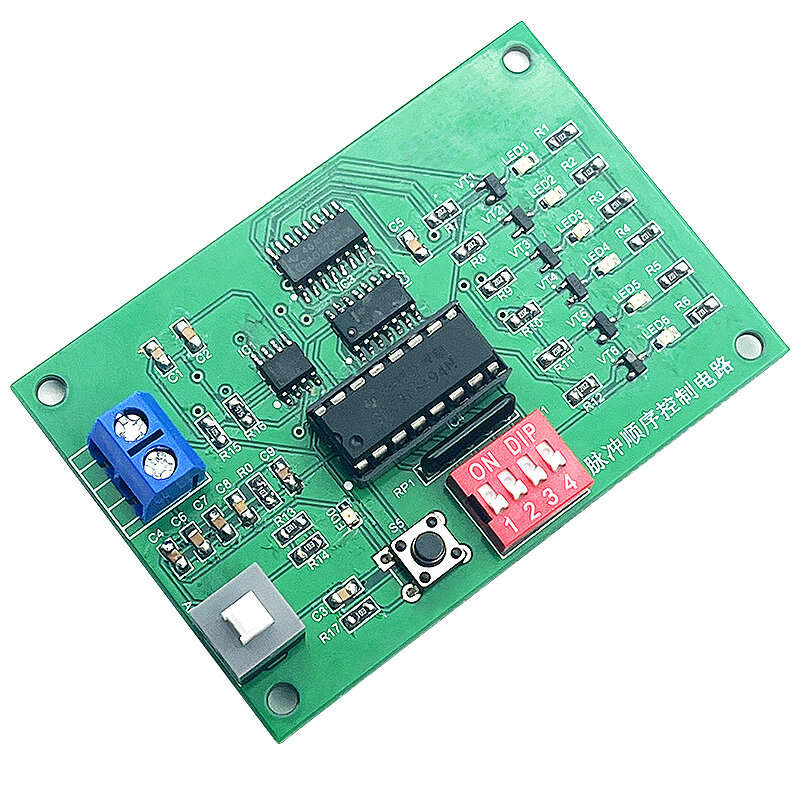

Pulse Seqquence Control Circuit Maintenance Board DIY Electronic Kit

Specifications:

Product name: pulse seqquence control circuit
Product size: 47*70MM
Operating voltage: 5V
Circuit board material: FR-4 with a thickness of 1.6MM

Package Include:

1× DIY Electronic Kit

(The product is shipped in parts and needs to be assembled by itself.)

Component list:Pulse control circuit is a new product specially developed for the examination of electronic product assembly and debugging skills. The circuit design adopts time base circuit NE555, NAND gate CD4011. JK trigger CD4027 and shift register 74LS194, and the circuit components are combined with plug-in patch devices, and five fault points need to be eliminated before the function can be realized. It is a comprehensive training kit that can effectiv
