Specifications:

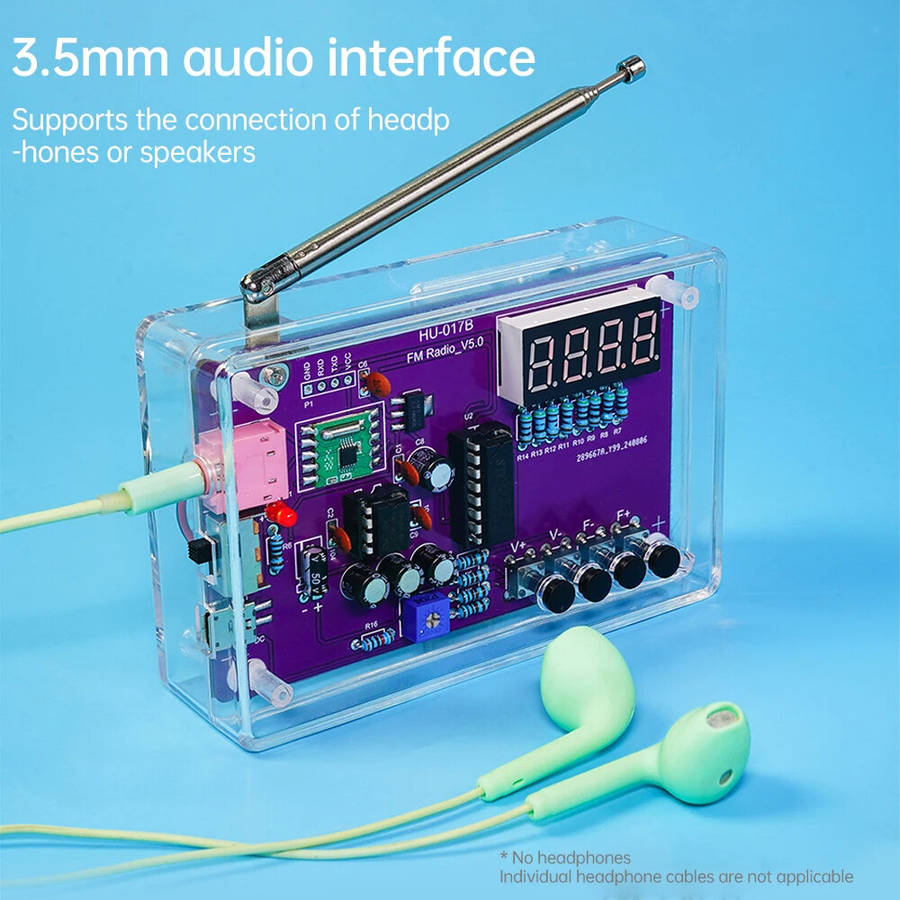

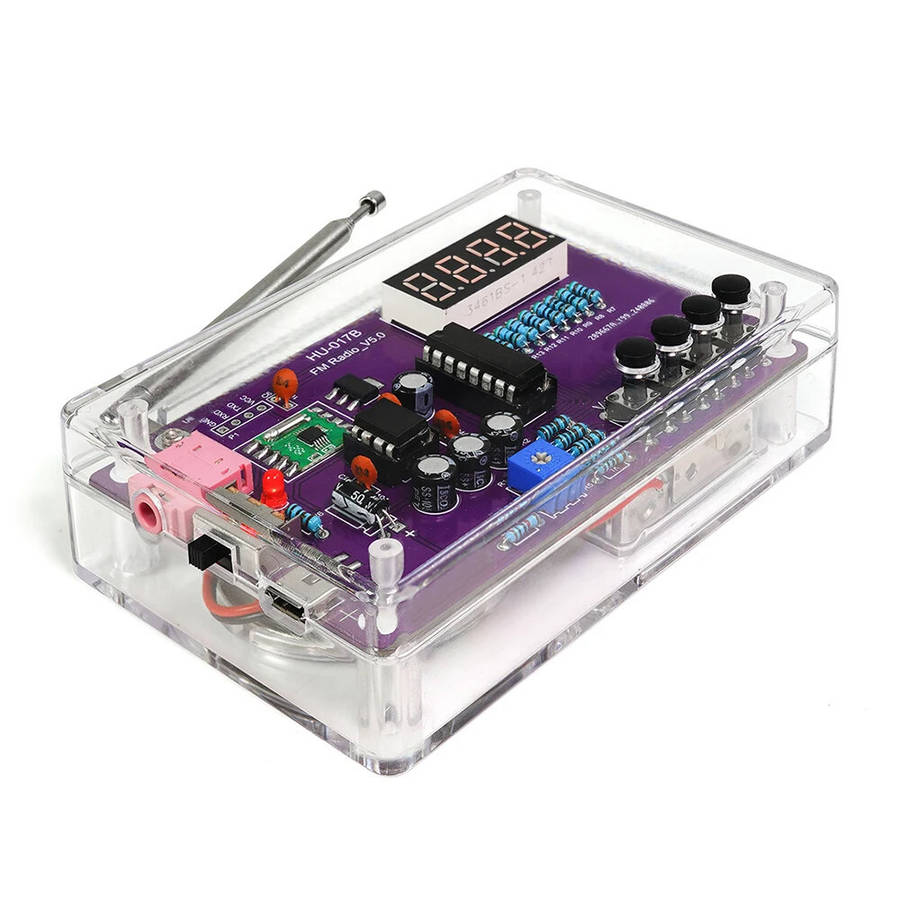

Product Name: HU-017B Multifunction Radio DIY Kit
Receiving Frequency Range: 87-108MHz

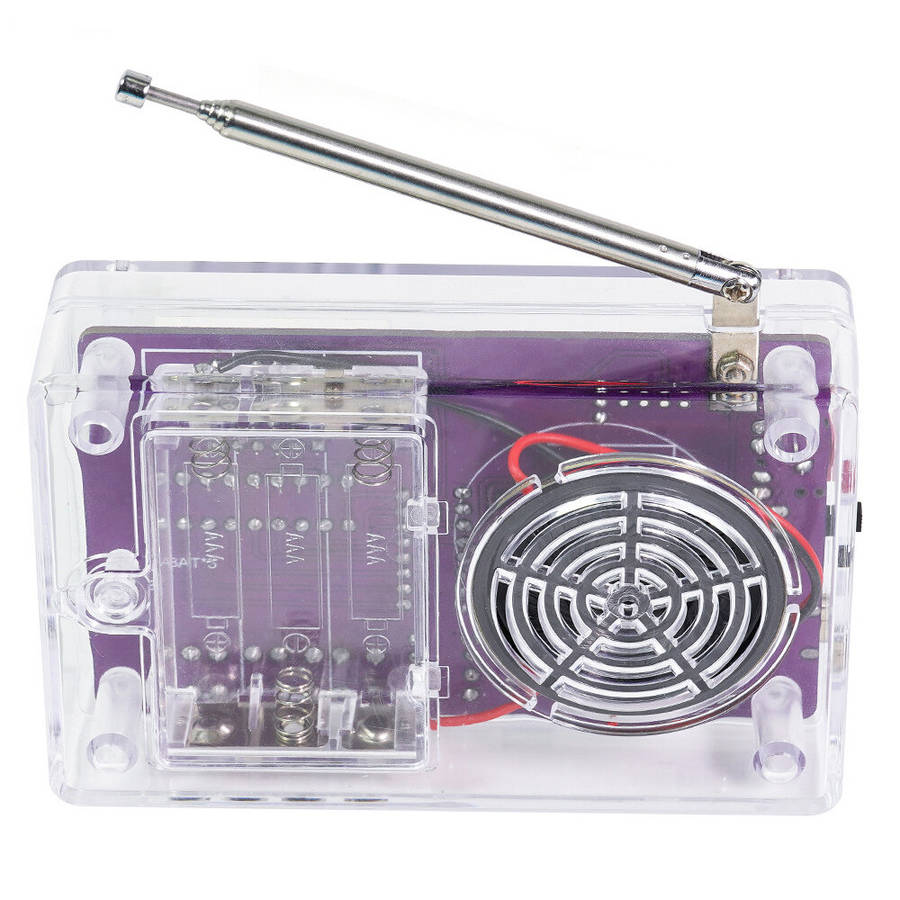

Power Supply: USB power supply (5V) or 3 AAA Batteries
Maximum Operating Current: Approx. 250mA (at maximum volume)
Radio Module: RDA5807S
Amplifier IC: TDA2822
PCB Size: 95.5mm x 59mm
Antenna Length: 84mm (extendable up to 262mm)
Display: LED Digital Tube
Note: This is a DIY kit, you need to assemble and solder.
Features:
1.High-Quality FM Reception
Equipped with the RDA5807S radio module, this kit offers exceptional sensitivity and strong anti-interference capabilities. Its global FM compatibility enables clear reception across the frequency range of 87-108MHz.
2pact LED Display
The LED digital display provides conv
