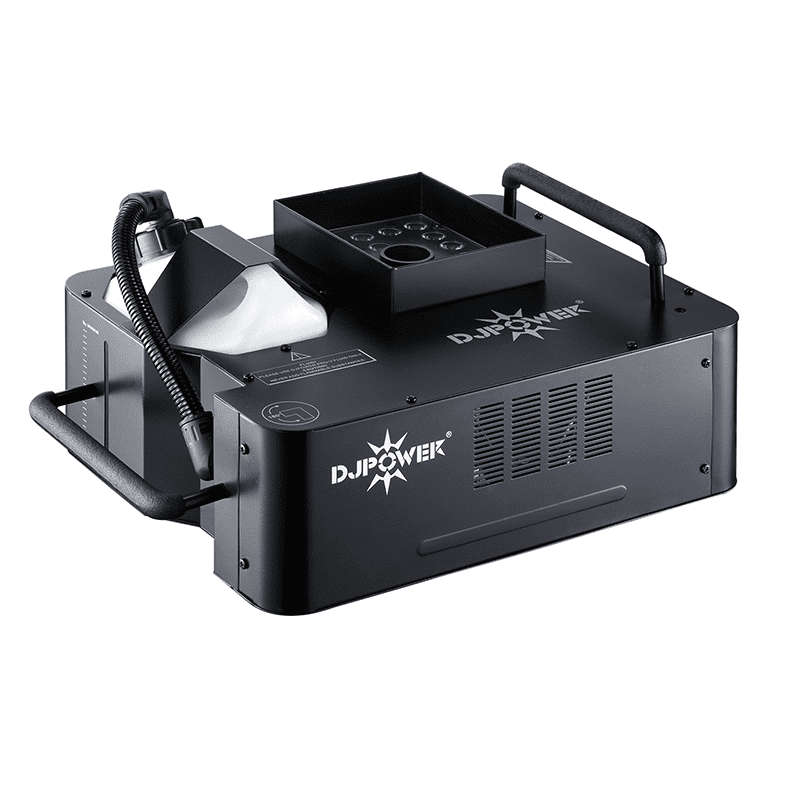

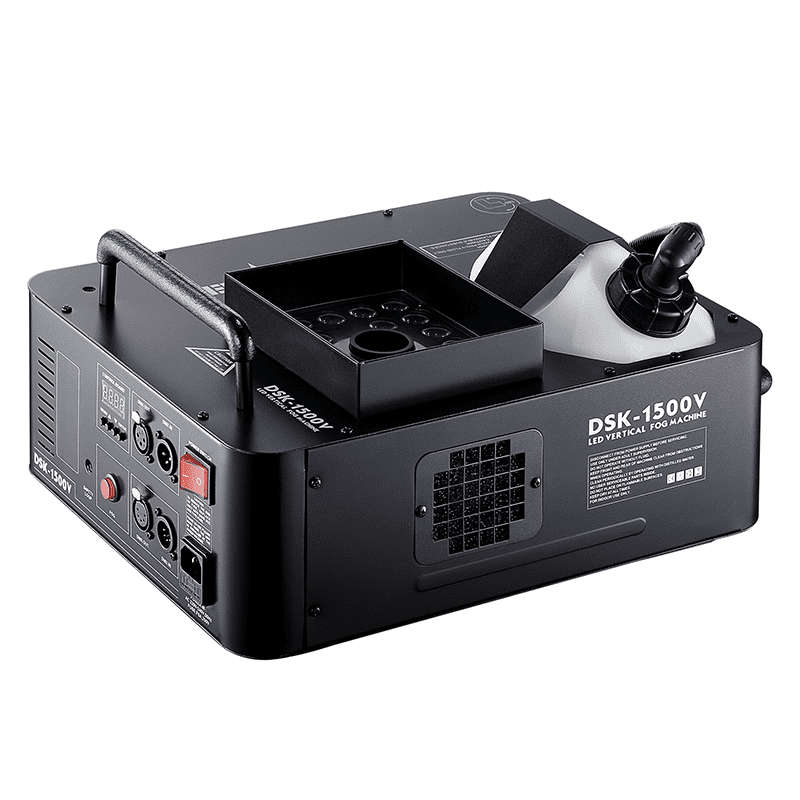

As a classical vertical fog machine, DSK-1500V has been a best seller for tens of thousands of sets in the past, which blasts a vertical stream of safe, water-based fog while simultaneously illuminating it with 21 high-power (3w) LEDs. A combination of red, green, and blue LEDs allows you to easily mix the perfect color to 6-8 meters high. More importantly, with DJPOWER's unique "immediate-stop" patented technology, it jets and stops synchronously and consistently. With newest "Anti-Squirting Plus" technology, it is safer no matter hung or placed on the floor.
AC POWER
Input Voltage & Rate: 220-240 V, 50/60 Hz
Current Limiter Type: Fuse (F)
Current Limiter Specifications: 8 A, 250 V
Total Power Consumption: 1,500 W
Operating Current: 6.5 A
Power Input Connector: IEC
HEATING
Heat Up Time: Appr. 4.0 min
Heater Type: Aluminum Heater Block
LIGHT SOURCE
LED Color: RGB
LED Type: Single Color
Power per LED: 3 W
Quantity of LED: 21 pcs
Quantity of RED: 7 pcs
Quantity of GREEN: 7 pcs
Quantity of BLUE: 7 pcs
Total Power of LED: 63 W
CAPACITY
Fluid Tank Capacity : 2.5 L
OUTPUT
Adjustable Volume: ×
Volume Adjustment Level/Range: ×
Angle Adjustment Level/Range: ×
Max Output Volume: Appr. 32,000 cuft/min
Max Output Height: Appr. 6.0~8.0 m
Fluid Consumption @ full volume : Appr. 6.3 min/L
Maximum Continuous Duration @ full volume: Appr. 7 sec
Continuous Output : ×
Fully-loaded Cumulative Output Duration @ full volume: Appr. 15 min
Consumable Type for Standard Output Test: PRO-V
FEATURES
Physical Thermostat:
Electronic Thermo-Control:
Adjustable Output : ×
No-Fluid Protection:
Instant-Stop:
Supper-Jet: ×
Inner Flame Color Changing (IFCC): ×
CONTROL
On-device Manual Control : 7-seg digital display & Physical manual trigger
Wireless Control: W-5 /RF 433MHz /Built-in
Wired Control: ×
Control Protocol: DMX-512
DMX Channel Range: 8
Data Connectors: 3- and 5-pin XLR
ACCESSORY
Power Cord:
Wireless Controller Model: W-5 / RF 433MHz / Transmitter
CONSUMABLE
Consumable: PRO-V
WEIGHT & DIMENSIONS
Net Weight: 8.7 kg
Gross Weight: 9.9 kg
Machine Dimensions: 474.5 × 314 × 205.2 mm
Packing Dimensions: 510 × 375 × 250 mm
