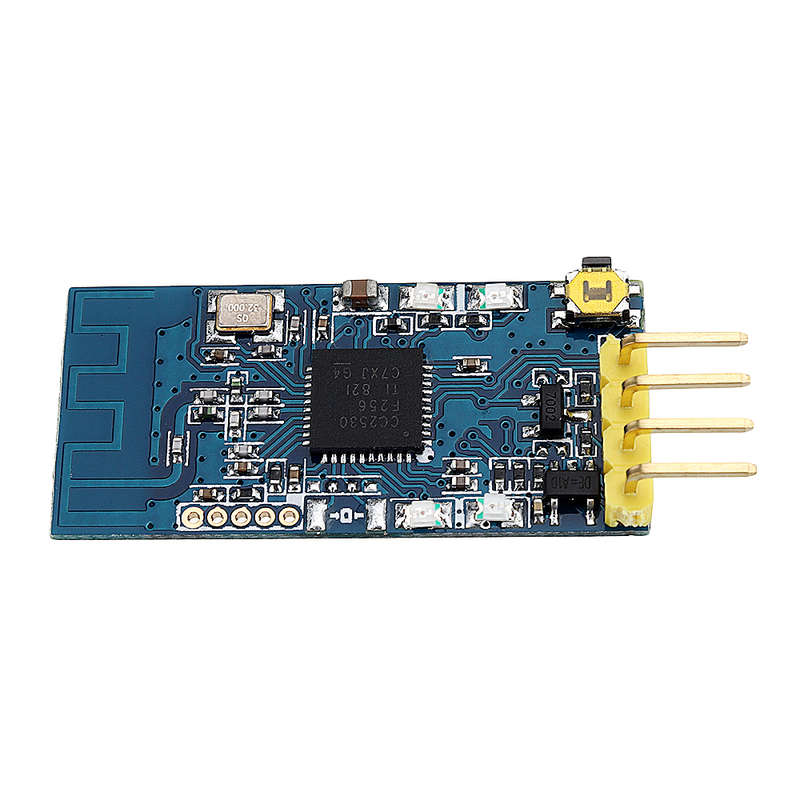

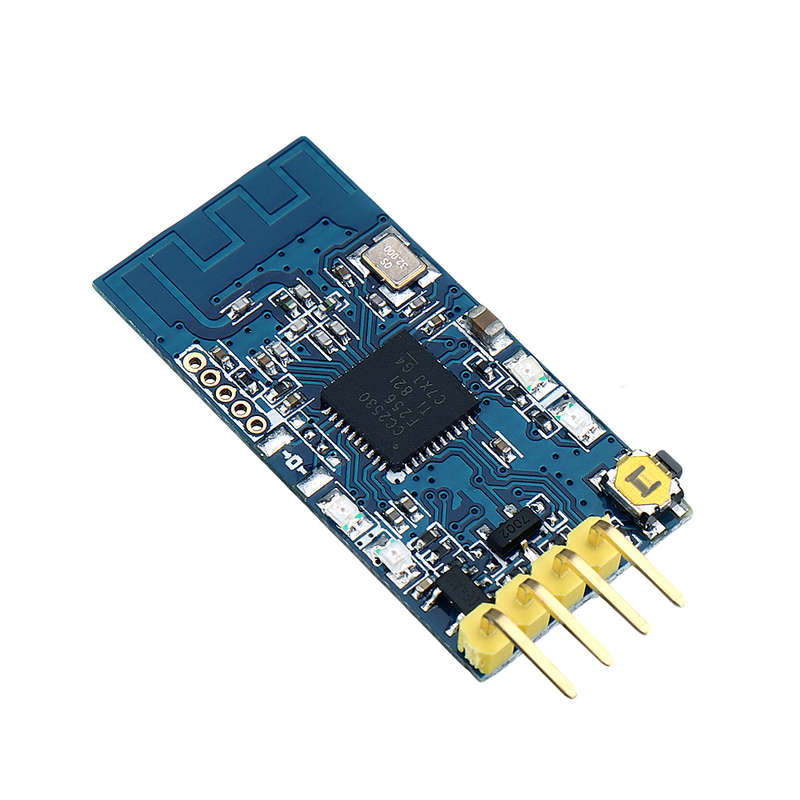

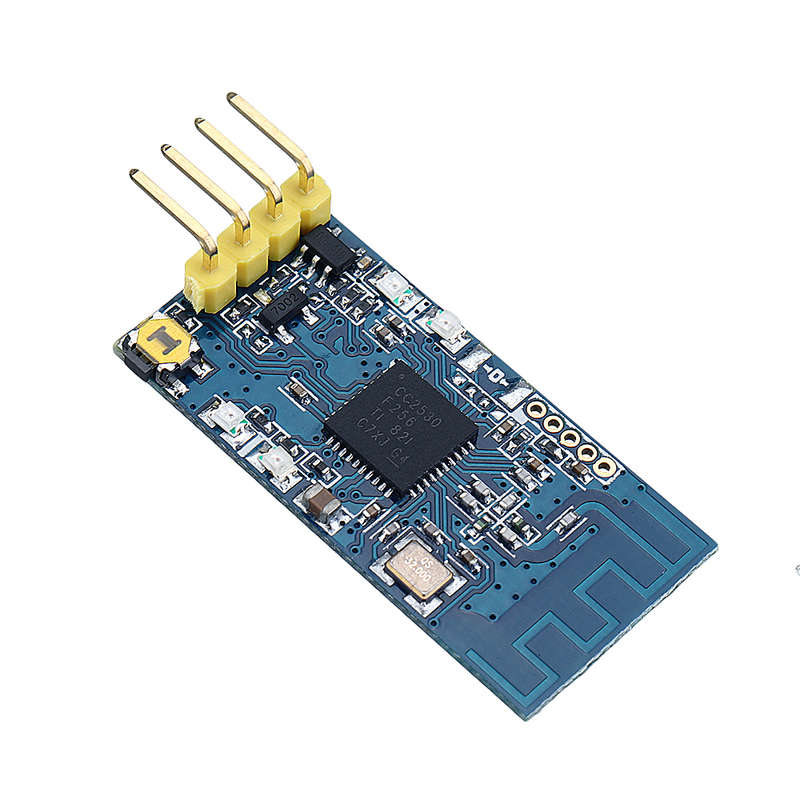

DL-20 CC2530 Wireless Transmission Serial Port Module 2.4G Wireless Transmitting and Receiving

20 available / new
R505.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
641122078

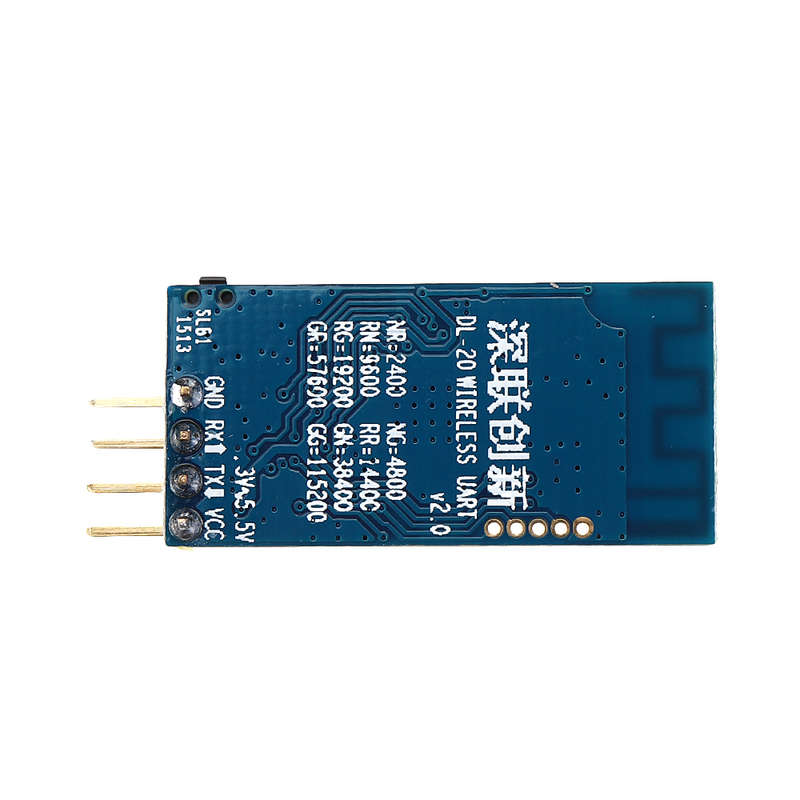

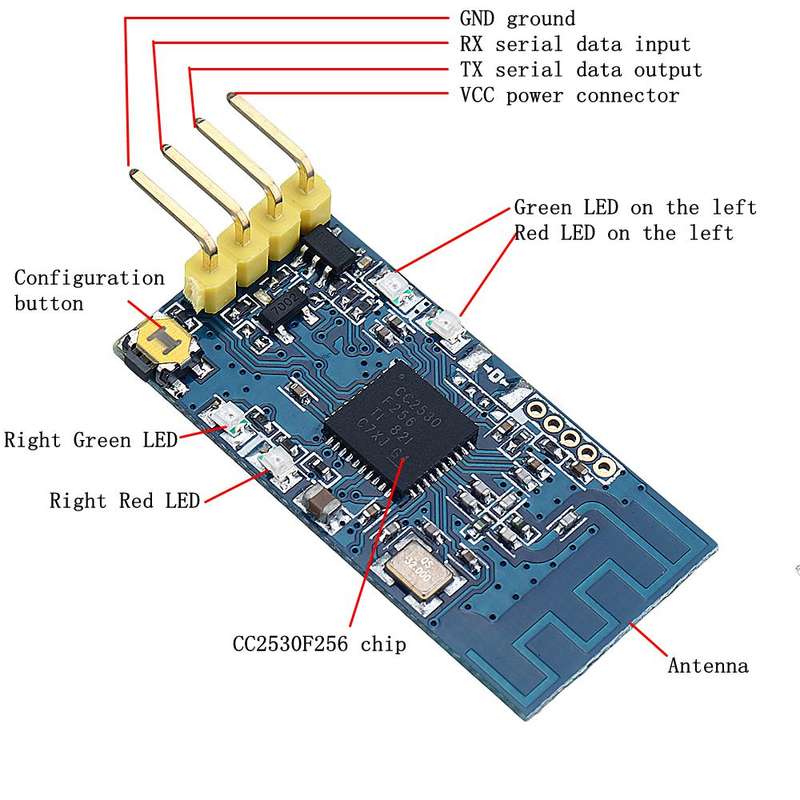

Feature: Default setting: baud rate 9600, point to point Wiring sequence: Rx is connected to Tx, Tx is connected to Rx Voltage range: 3.0V~5.5V, TTL level adaptive Button configuration: Use the onboard buttons to set up, you can modify the channel, baud rate and working mode of the module.

Project name Numerical value
Product number DL-20
Chip selection CC2530F256RHAR
working frequency 2400~2450MHz
Transmit power 4. 5dBm
Transmission rate Up to 3300Bps
Transmission distance 250 meters (outdoor unobstructed environment test)
Operating Voltage 3. 0V~5. 5V
Working current Less than 30mA
Support working mode Peer-to-peer working mode, broadcast working mode
Communication Interface UART serial port (supports 8 baud rates)
Working channel 2400/4800/9600/14400/19200/38400/57600/115200)
Receive spiritual respect 16 channel divisions in accordance with the IEEE 802.15. 4 protocol
Point-to-point bit error rate -97dBm
Broadcast bit error rate 0. 00%
Antenna interface 0. 50%
Operating temperature Built-in PCB antenna
Size -40 C~80 C

Package includes:

1 xWireless Transmission Serial Port Module
