SELECTED OPTION:
TYPE: WITHOUTANTENNA

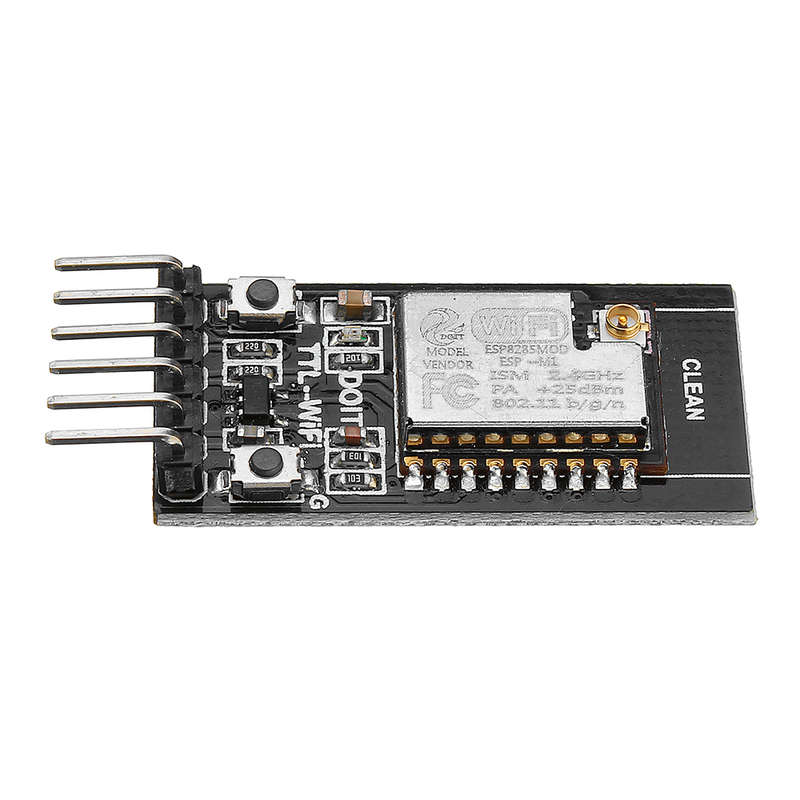

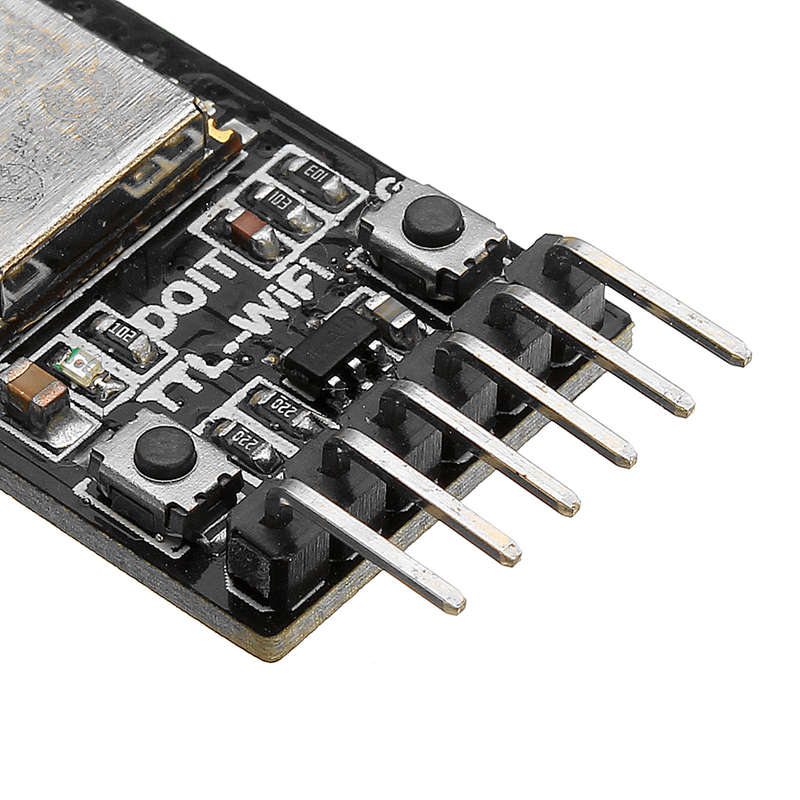

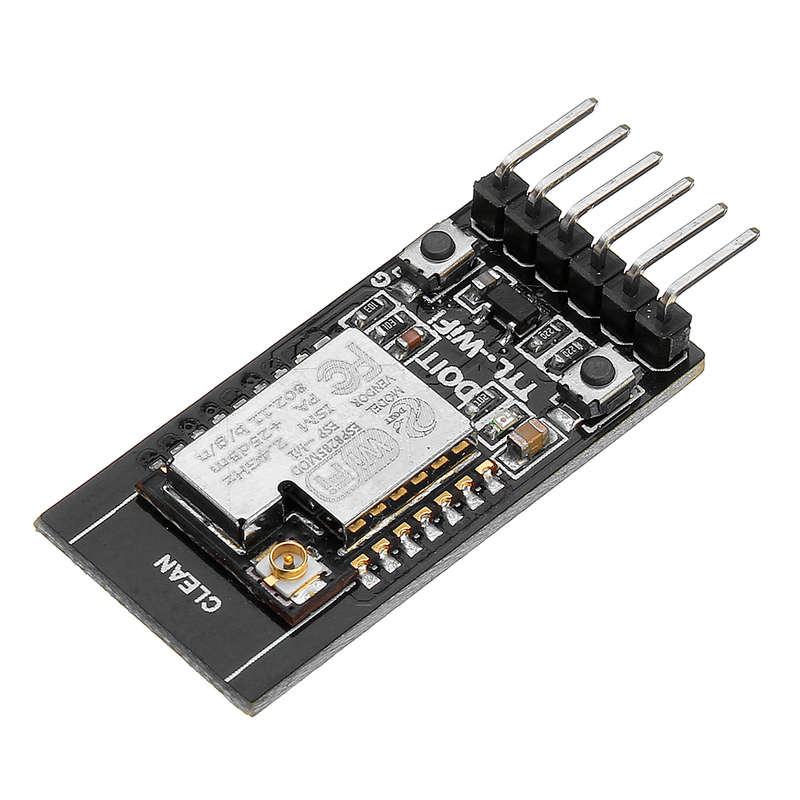

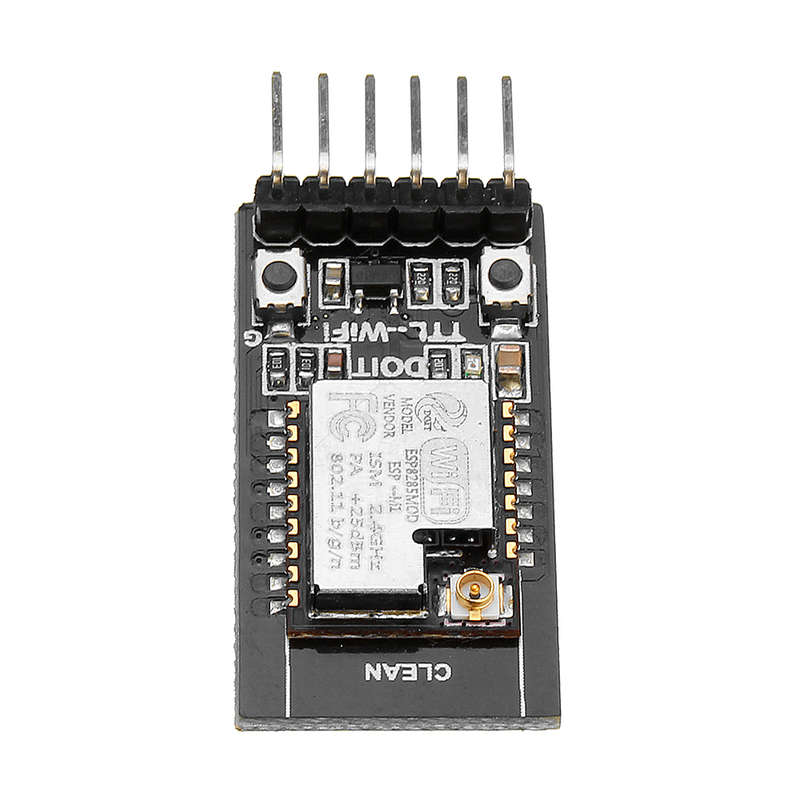

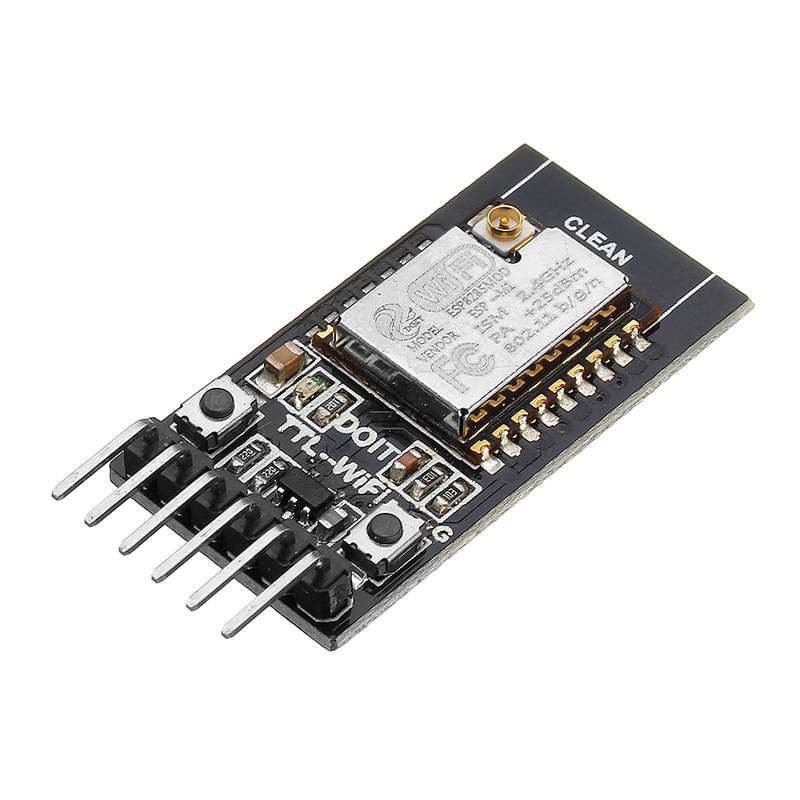

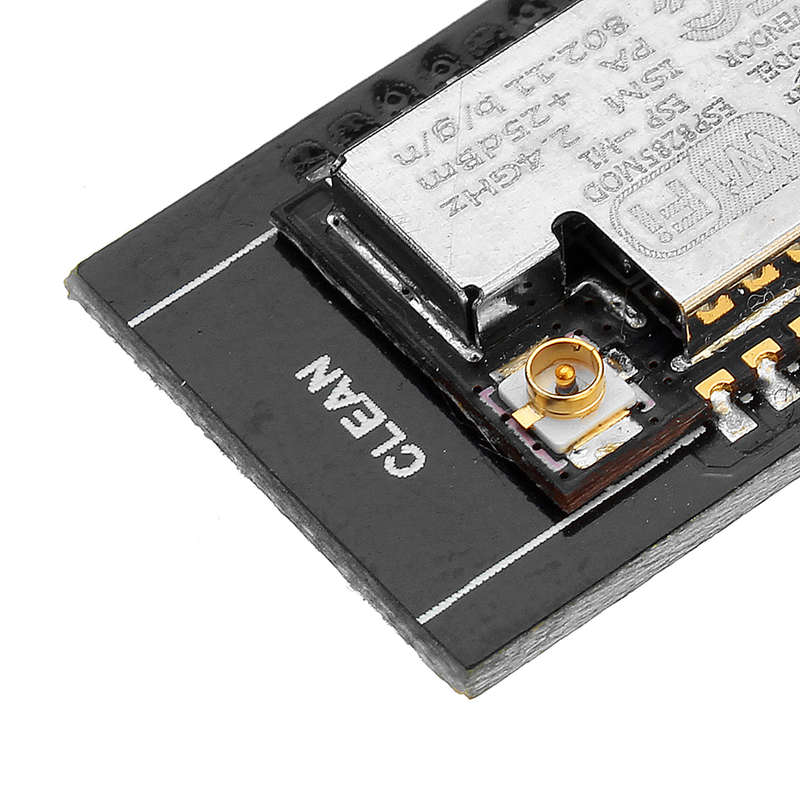

Description: 1. TTL-WiFi module is developed based on ESP-M1 WiFi module, which leads to serial port TTL, EN, STATE and other pins. 2. The latest version of Serial Port Transfer Firmware built in the product can complete the real-time data transmission from TTL port to WiFi/cloud, with low power control, status indication and other functions. 3. This module can directly replace the original wired serial port to realize data acquisition and control of embedded devices. 4. It is fully compatible with the existing electrical and physical interfaces of the bluetooth transmission module. 5. Optimized the web page configuration interface, supports AP, STA, AP+STA configuration mode, supports serial port baud rate from 300bps to 3686400bps, supports TCP Server/Client, UDP Server/Client, UDP LAN broadcast and other functions. At the same time compatible with AT command configuration, it is the most cost-effective WiFi transparent transmission product on the market. 6. The serial port receiving and transmitting performance is greatly optimized. The reconnection mechanism in WiFi STA mode and the reconnection mechanism in TCP Client mode are specially designed to ensure stable connection and transmission of the data link.

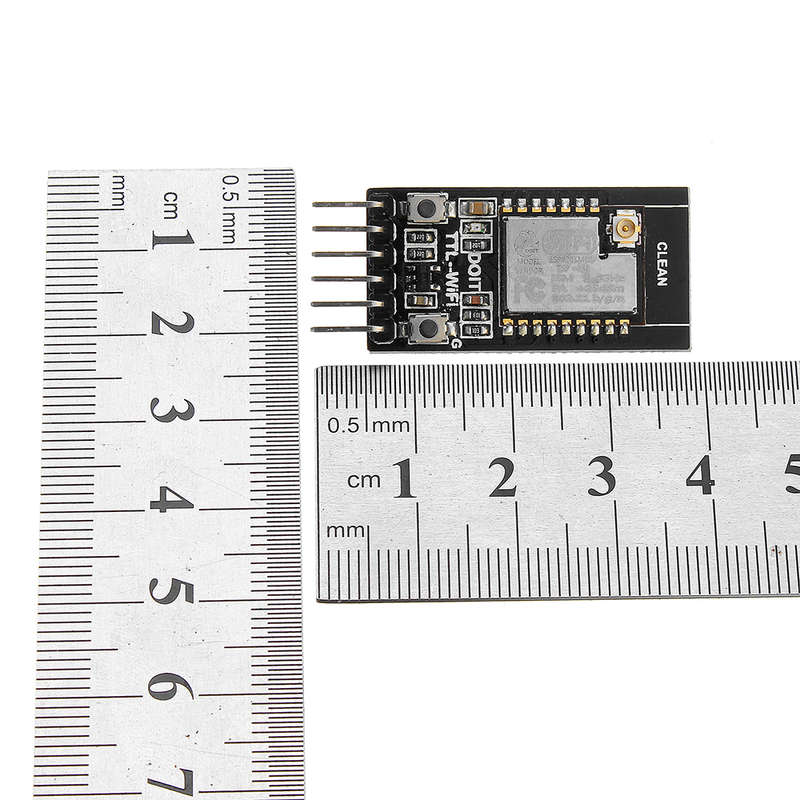

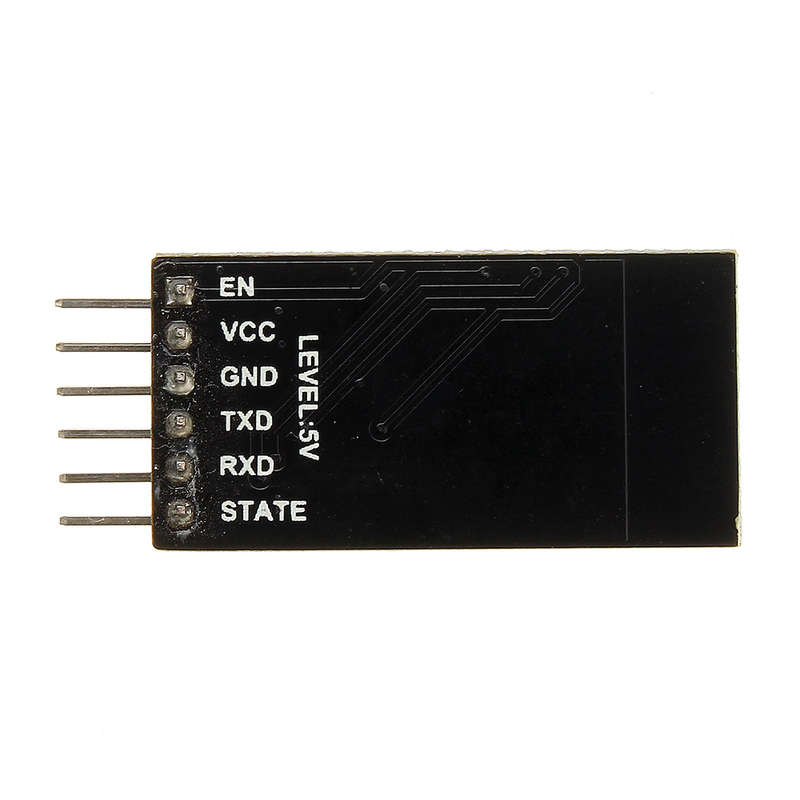

Feature: Built-in industry-class firmware V3.0, reliable and stable, WEB interface configuration Based on ESP-M1 high performance WiFi module, the overall size is 34 mm *17 mm *4 mm Supply voltage: 4.5V ~ 6.0V, TTL voltage: 3.3V (compatible with 5.0V) Leading pins: STATE, TXD, RXD, EN Average current: 80 mA; 170 mA for WiFi data transmission; 20 mA for deep sleep mode Support serial AT instruction Support reprogrammable, OTA firmware upgrade Real-time seamless transmission of serial port and WiFi data Built-in HTTP Web Server to support the configuration of web pages parameters WiFi supports three modes: AP, STA and AP + STA Support WiFi STA mode automatic reconnection, TCP Client mode automatic reconnection Serial port supports setting baud rate, data bit, parity check, stop bit and subcontracting time Support baud rate (bps): 300/600/1200/2400/4800/9600/19200/38400/57600/74800/115200/230400/460800/921600/1843200/3686400 Support AP enablement, custom SSID / password, custom IP and segment, etc Scanning peripheral hot spots automatically, supporting STA enablement, DHCP, custom IP and network segments, etc Support TCP Server, TCP Client, UDP Server, UDP Client and UDP LAN broadcasting The remote server address supports DNS domain name automatic resolution Supports viewing status through AT instructions IO4 was introduced to characterize WiFi state Work temperature range: - 40 ﾣC ~ 125ﾣC Application scenarios: smart home, wireless data collection and transmission, smart car control, wireless serial printer, outdoor LED lights, industrial control, etc.

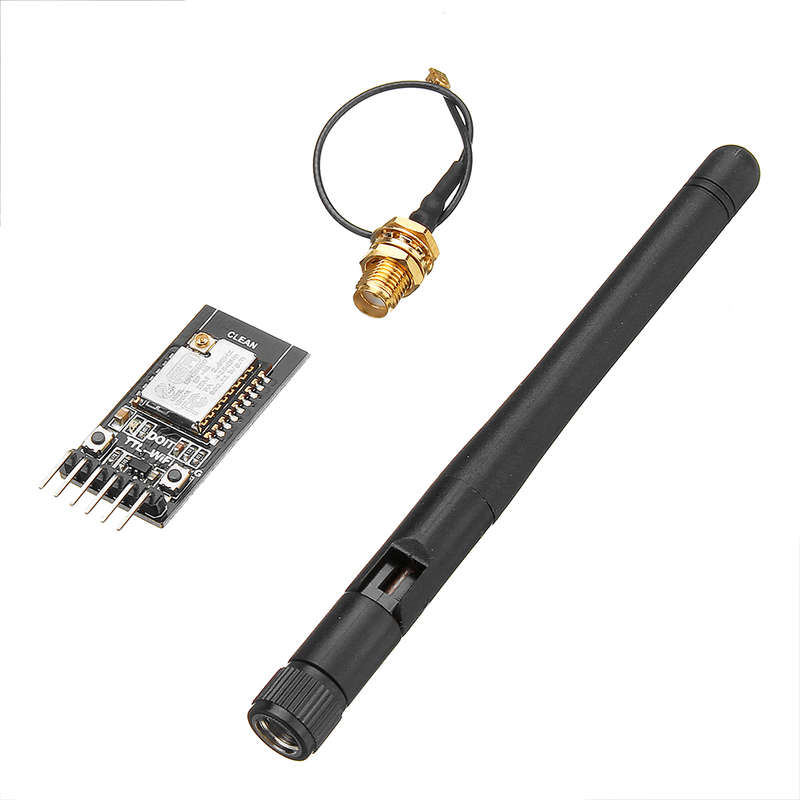

Package included: 1 x Wireless WiFi Serial Transmissions Module
2 x Antenna (optional)
