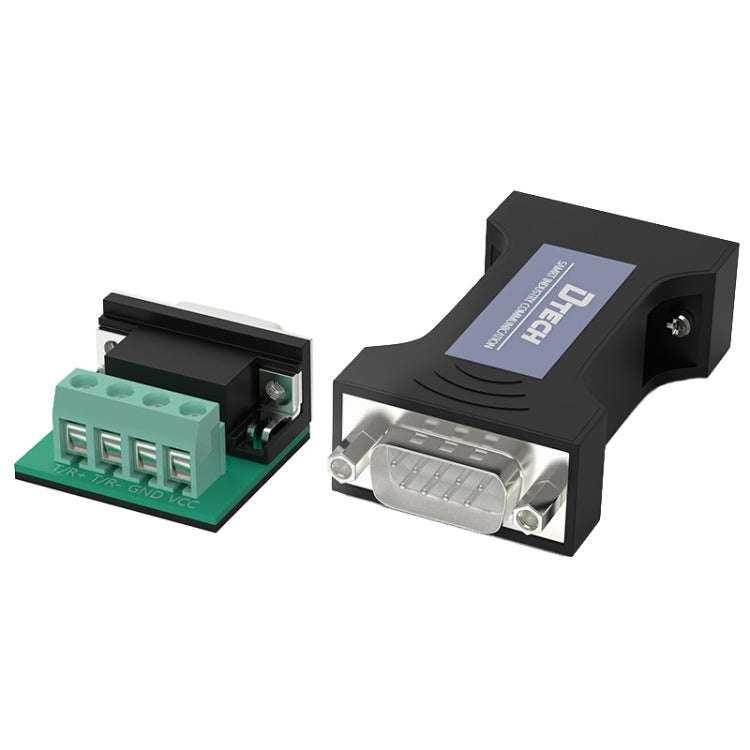

DTECH DT-9000 Passive Bidirectional RS232 To RS485 Serial Communication Protocol Module Converter

10 available / new
R235.82
Want to pay less?
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Product code
TBD06024294
Bob Shop ID
639575287

1. Interface compatible: RS485/RS232C standard
2. Material: ABS
3. Working mode: asynchronous half-duplex differential transmission
4. Protection level: 600W lightning surge protection per line, about 15KV electrostatic protection
5. Transmission distance: RS-485 is less than 1200m, RS-232 is within 15m
6. Transmission rate: 300-115.2kbps
7. Communication mode: point-to-point/two-wire half-duplex, point-to-multipoint/two-wire half-duplex

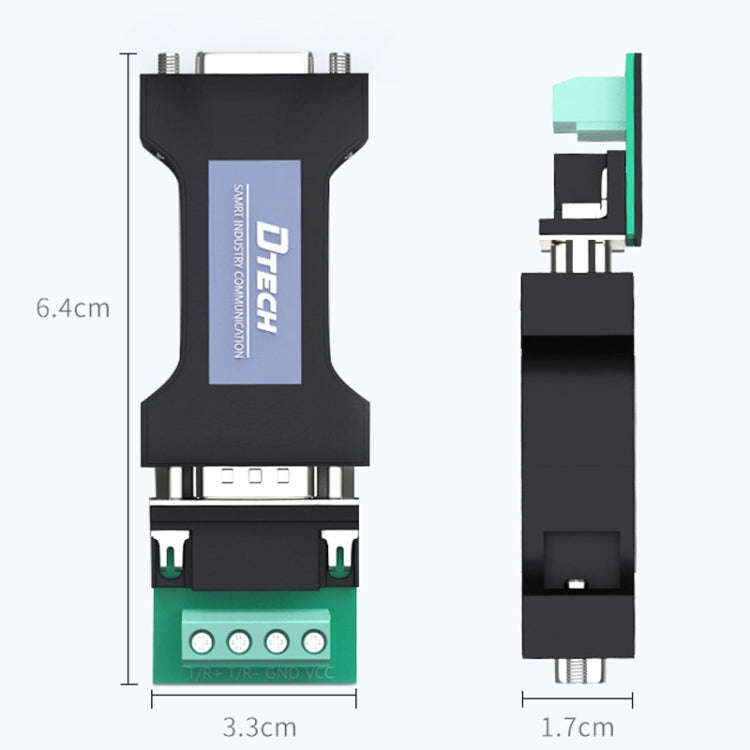

8. Size: about 6.4 x 3.3 x 1.7mm

Features:

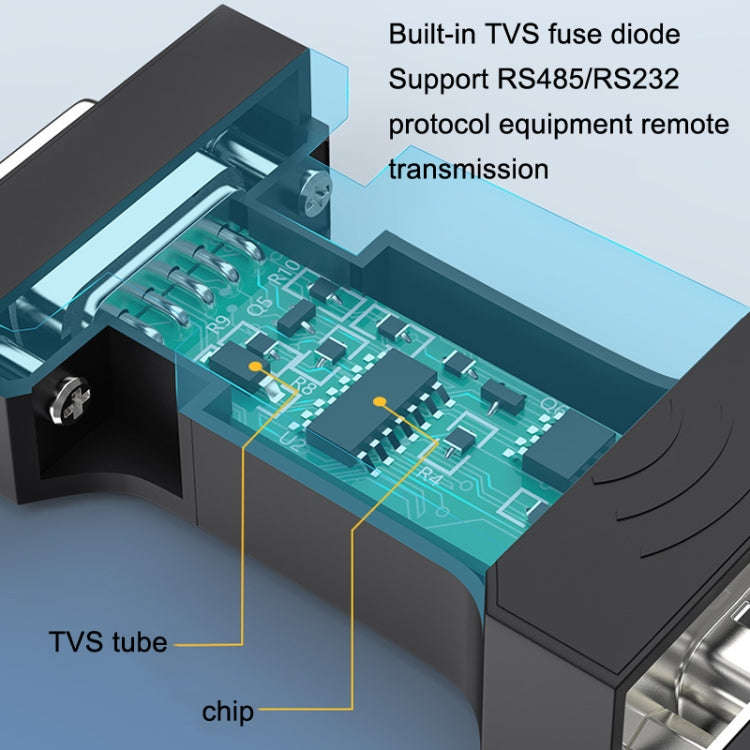

1. Built-in TVS fuse diode, support RS485/RS232 protocol equipment remote transmission

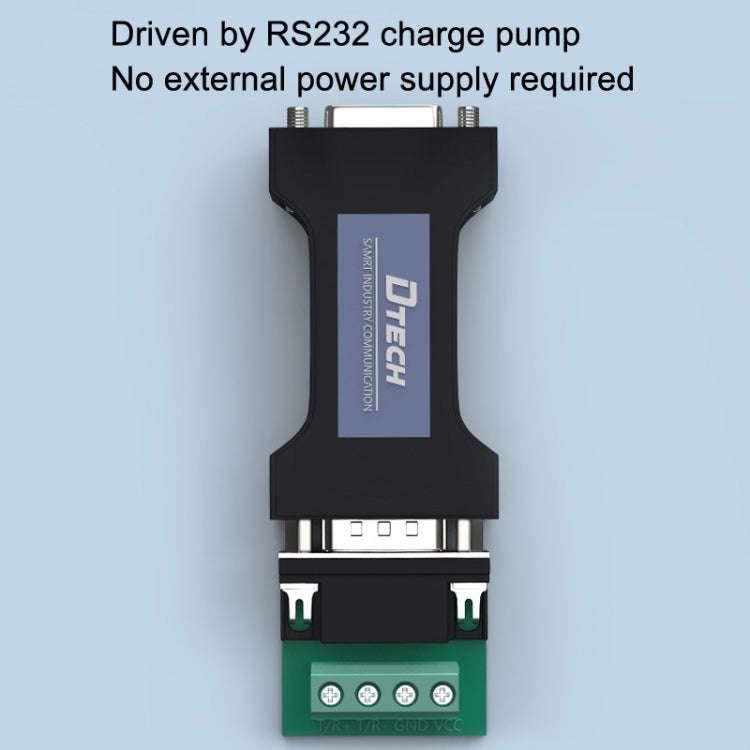

2. Driven by RS232 charge pump, no external power supply required

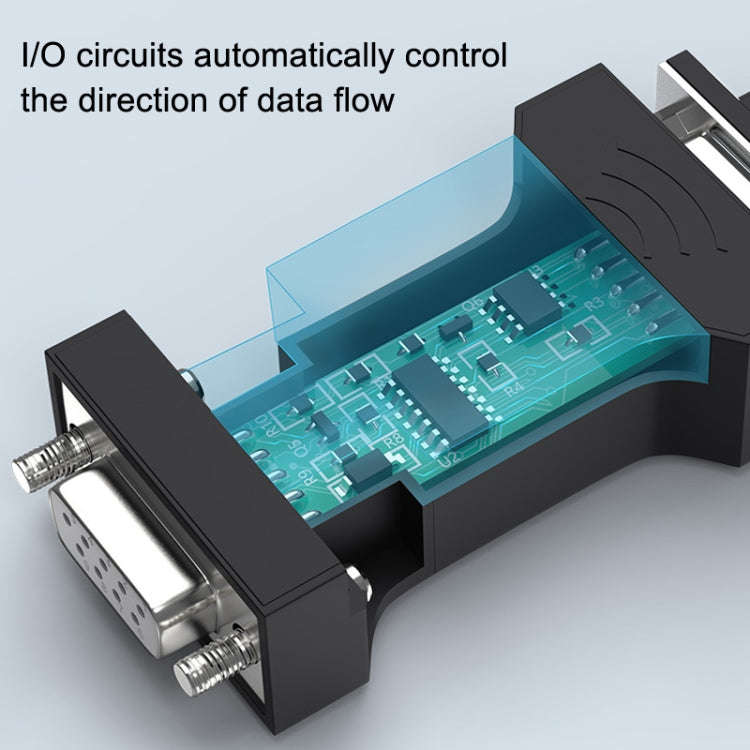

3. The I/O circuit automatically controls the data flow direction
4. Built-in zero-delay automatic transceiver conversion device, data transmission without delay
5. Multiple protections, safer to use, 600W surge protection power per line, about 15KV electrostatic protection

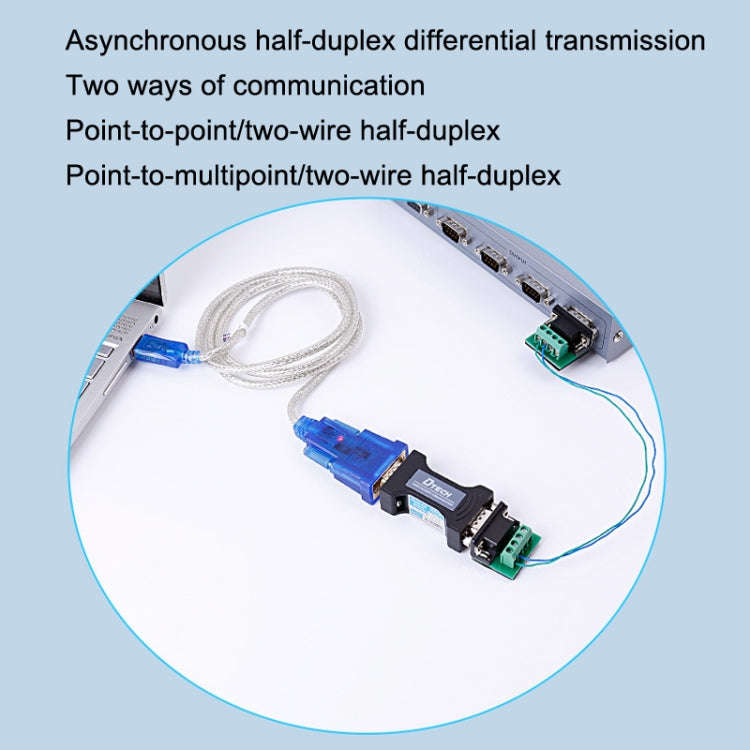

6. Asynchronous half-duplex differential transmission, two communication methods, stable transmission, convenient and fast
