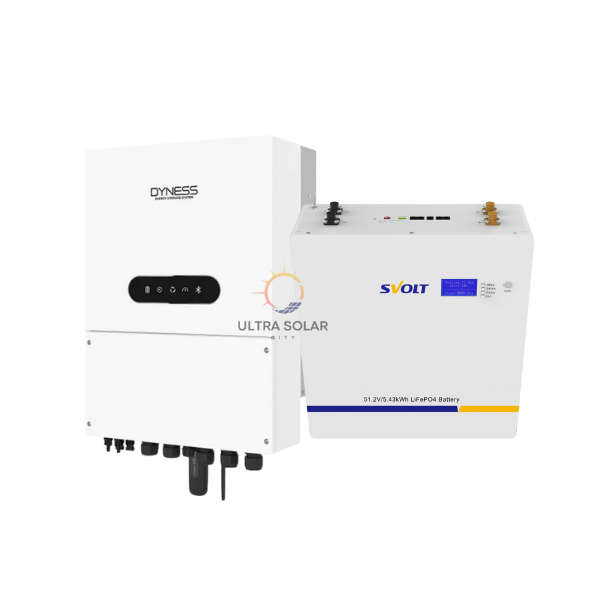

Dyness 6KVA Svolt 51.2V 5.43KWH

Dyness 6KW Single Phase LV Hybrid Inverter with CT & WIFI Included Dyne-6.0L-1P-A

INVERTER ONLY PRICE

The DYNE 5.0/6.0/8.0L-1P-A series is designed for residential hybrid systems. The inverter can work with Dyness low-voltage lithium-ion battery DL5.0X/DL5.0C/ Powerbox Pro to maximize self-consumption and provide backup power if the grid fails and there is not enough PV power to cover load demand.

Product Features:

• Generator connectivity with multiple input methods and automatic generator On/Off control
• Automatic UPS switching(<4ms)
• Supports peak shaving control in both "self-use" and "generator" mode
• Up to 135A(5.0/6.0K) and 190A(8.0K) max charge/discharge current
• 6 customizable charge/discharge time settings
• 10-second 200% surge power backup overload capability
• Supports 1ph and 3ph flexible connection with max 36kW (5.0/6.0K) and 48kW(8.0K) in parallel

SVOLT 51.2V 106Ah 5.4kWh A-Grade Lithium Battery Reliable Power Solution

BATTERY ONLY PRICE

Key Specifications:

 Energy: 5.4kWh | Battery Type: LiFePO4 | Nominal Voltage: 51.2V | Capacity: 106Ah
 Installation: Wall-mounted | Weight: 44kg | Terminal Type: M6
 Built-in BMS for safety & efficiency | Over 6000 cycle life @ 80% DOD
 Max Charge Voltage: 58.4V | Max Continuous Discharge Current: 100A
 LCD Screen Display | High Efficiency (97%) | Low Self-Discharge (<3% per month)
