Dyness 8KVA / 8KW Single-Phase LV / MPPT + WIFI

8KVA Dyness Hybrid Inverter (Single Phase)

Dyness Products

Description:

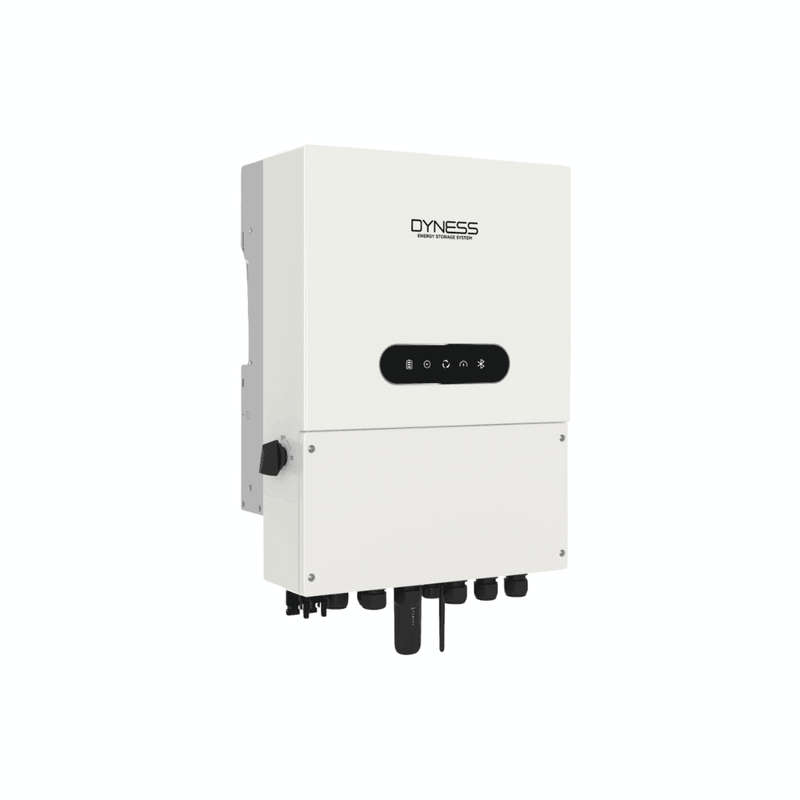

The Dyness 8KW Single-Phase Hybrid Inverter is a high-performance energy solution designed for residential hybrid solar systems. It efficiently integrates solar, battery, and grid power to maximize self-consumption and ensure backup power during grid failures.

This inverter supports automatic UPS switching (<4ms) for seamless transitions, while peak shaving control optimizes energy efficiency in self-use and generator modes. With WiFi connectivity, users can remotely monitor and manage their energy system via a mobile app. The IP66-rated enclosure ensures durability for both indoor and outdoor installations.

Key Features:

• 8KW Single-Phase Hybrid Inverter Ideal for home solar installations.
• Compatible with Dyness Low-Voltage Lithium Batteries Works with DL5.0X, DL5.0C, Powerbox Pro.
• Automatic UPS Switching (<4ms) Ensures uninterrupted power supply.
• Generator Connectivity Supports multiple input methods and automatic start/stop.
• Peak Shaving Control Manages power in self-use and generator mode.
• High Charge & Discharge Current (190A) Supports heavy loads.
• Scalable Parallel Operation Supports up to 48KW (8KVA model) in parallel mode.
• 10-Second Surge Overload Protection (200%) Handles startup loads efficiently.
• Customizable Charging & Discharging 6 programmable time settings.
• WiFi Monitoring Enables remote tracking and energy optimization.
• Durable IP66 Enclosure Water and dust-resistant for outdoor and indoor use.

Technical Specifications:

Input DC (PV Side)

• Recommended Max PV Power: 12.8KW
• Maximum Input Voltage: 600V DC
• Rated Voltage: 300V DC
• Start-Up Voltage Range: 90V - 520V DC
• Maximum Input Current: 32A / 20A
• Maximum Short Circuit Current: 36A / 30A

Battery Specifications

• Battery Type: Lithium-Ion (Li-ion)
• Maximum Charge/Discharge Power: 8KW
• Maximum Charge/Discharge Current: 190A

AC Output (Grid Side)

• Rated Output Power: 8KW
• Maximum Output Current: 40A
• Maximum Input Current: 50A

General & Environmental

• Dimensions (W x H x D): 405mm x 560mm x 215mm
• Weight: 27kg
• Ingress Protection: IP66 (Weatherproof)
• Warranty: 5 Years

Installation & Warranty Requirements:

• Professional Installation Required Must be installed by a qualified electrical wireman or master electrician.
• Valid Certificate of Compliance (COC) Required Installation must comply with SANS 10142 standards.
• Warranty Claims Must include installation photos, a valid COC, and proof of a qualified installer.
