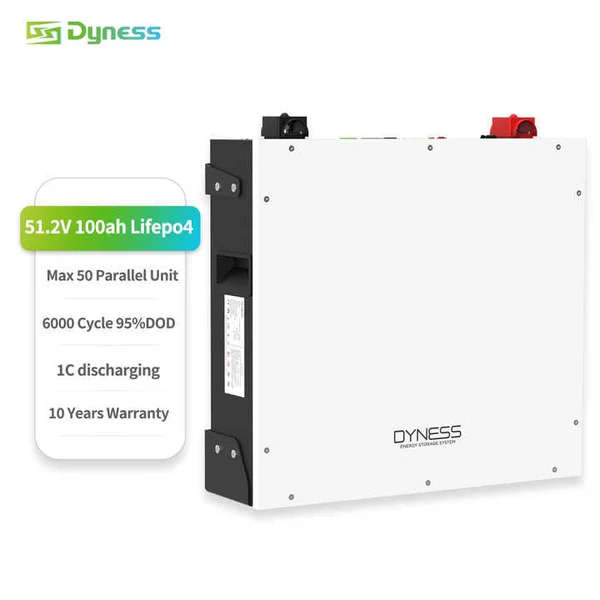

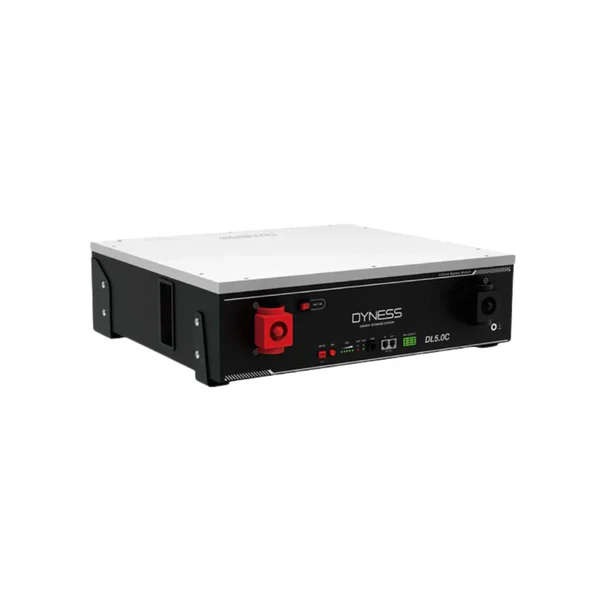

DYNESS DL5.0C 5.12kWh LiFeP04 Lithium Battery

DL5.0C 5.12kWh LiFePO Battery | 51.2V | Industrial-Grade | Grid Solutions SA

Description:
Reliable Lithium Storage for Commercial & Off-Grid Energy Systems

The GridSolutions DL5.0C 5.12kWh LiFePO battery is a robust and high-efficiency storage unit tailored for industrial and off-grid solar applications. Its durable design and long cycle life make it ideal for critical backup systems and scalable energy infrastructure.

Technical Advantages:

• High Energy Output: 5.12kWh, 51.2V, 100Ah capacity

• Deep Discharge Efficiency: 90% Depth of Discharge (DoD)

• Cycle Longevity: Over 6000 cycles at 0.5C, 80% DoD

• C-Rate Performance: Supports up to 1C discharge with 110A peak (15s)

Optimized Power Flow:

• 50A recommended charge/discharge

• Max charge: 75A | Max discharge: 100A

• Compatible with hybrid/off-grid inverter systems

Designed for System Integration:

• Expandable: Up to 50 units in parallel

• Communication: CAN, RS485, RS232

• IP20 protection with wide temp tolerance (20°C to 55°C)

Specifications:

• Dimensions: 558×545×150 mm

• Weight: 54 kg

• Certified: UN38.3, CE-EMC, IEC62619, CEI-021

Warranty & Compliance:

Backed by a manufacturer warranty (terms apply). Installation must be completed by a certified electrician per SANS 10142. COC and installation documentation are required for support and warranty validation.
