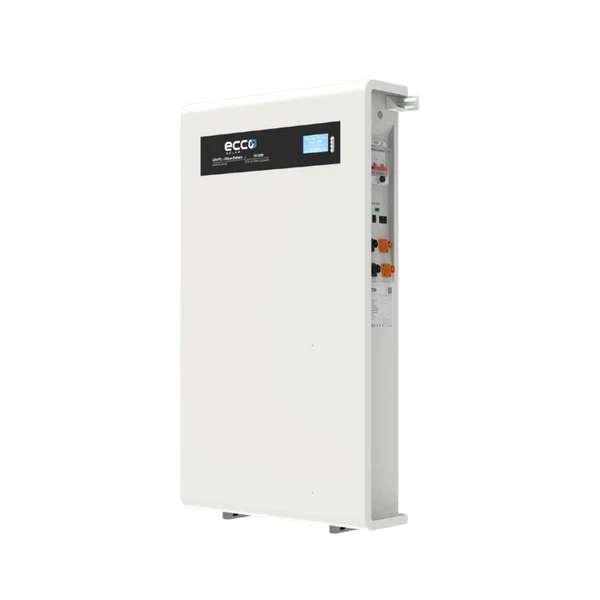

ECCO 10.24kWh LiFeP04 Lithium Battery (F51200)

GridSolutions 16.08kWh LiFePO Battery | 51.2V | 180A Output | Scalable Storage

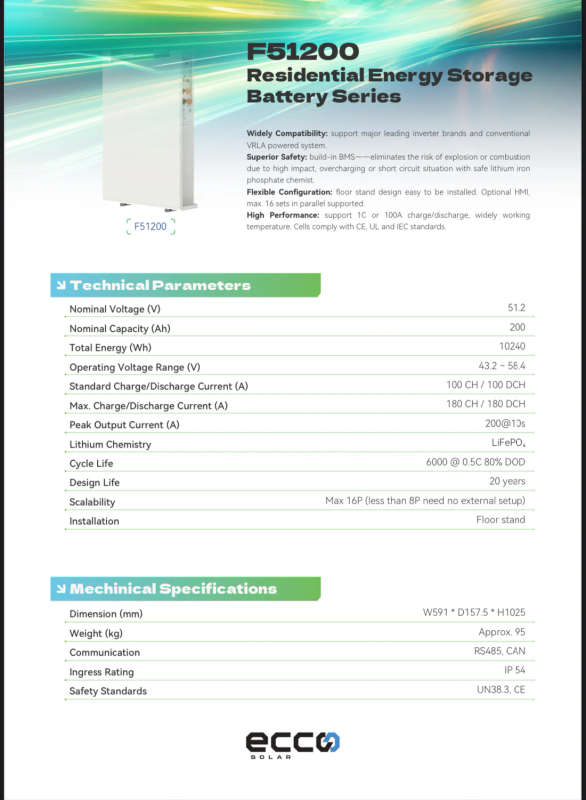

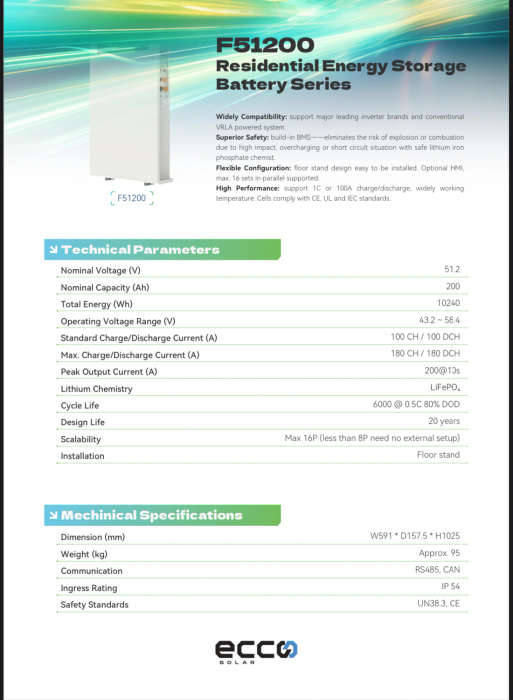

ECCO_F51200_datasheet_EN 2

Description:
Reliable High-Capacity Storage for Demanding Residential Energy Systems

The F51314 Lithium Iron Phosphate Battery, distributed by GridSolutions SA, offers a robust energy storage solution for hybrid solar systems and off-grid power configurations. Engineered for performance, safety, and compatibility, this battery supports high-output demands, extensive cycle life, and seamless integration with leading inverter platforms.

Key Features:

• Large Energy Capacity: Delivers 16.08kWh of usable energy with a nominal 51.2V, 314Ah configuration.

• Industrial-Grade Output: Supports continuous 180A and peak 200A current delivery for high-load applications.

• Built-In BMS: Intelligent management system protects against overvoltage, undervoltage, overcurrent, and short circuits.

• Expandable Architecture: Scalable to 16 units, with plug-and-play support for up to 8 without external infrastructure.

• Protocol Compatibility: Communicates via RS485 and CAN ideal for integration with modern inverter ecosystems.

• Durable Build: IP54-rated enclosure suited for protected residential installations.

• Certified Safety: Complies with CE, UN38.3, and IEC standards for safe lithium energy storage.

Technical Specifications:

• Voltage/Capacity: 51.2V, 314Ah

• Usable Energy: 16.08kWh

• Max Discharge Current: 180A (continuous), 200A (peak)

• Battery Chemistry: LiFePO

• Cycle Life: 6000 cycles @ 80% DOD

• Design Life: 20 years

• Dimensions: 591 × 157.5 × 1025 mm

• Weight: 110kg

• IP Rating: IP54

Warranty & Compliance:
Includes a 5-year manufacturer warranty. Installation must be carried out by a qualified wireman or master electrician registered with the Department of Labour. A COC is mandatory, and all installations must comply with SANS 10142. Warranty claims require installation evidence, photos, and valid documentation.
