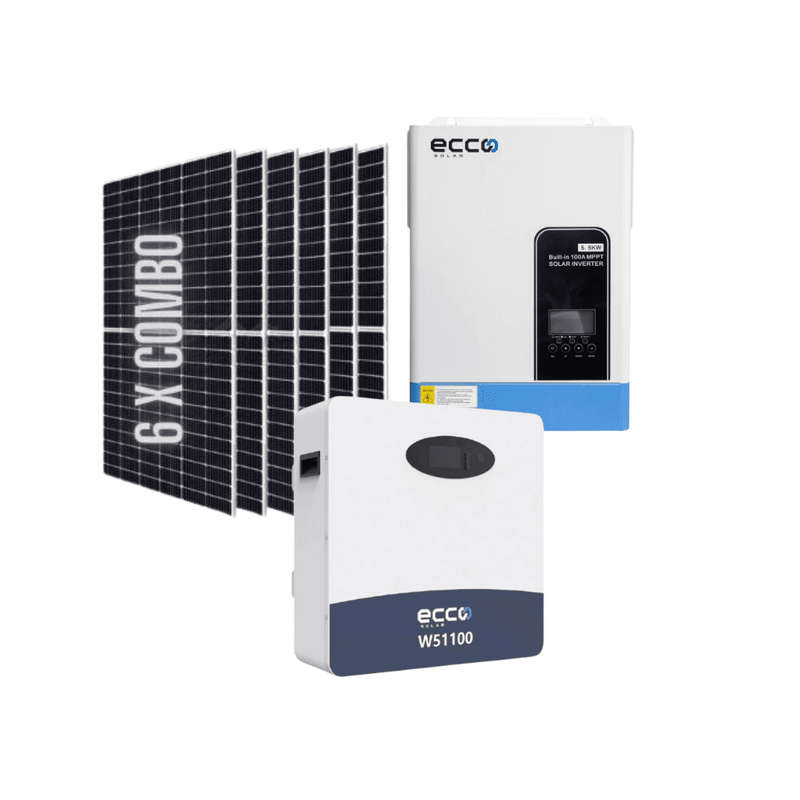

Ecco 11KVA Hybrid Inverter (Pure Sine Wave) + 5.12kWh Lithium Battery + 6x 545W Tier 1 Mono Crystal Solar Panels

Description:

The Ecco 11KVA Hybrid Inverter with MPPT technology, combined with a 5.12kWh 100Ah lithium battery, provides a robust energy solution for residential and commercial use. Designed for solar energy integration and uninterrupted backup power, this system ensures high efficiency, optimized battery performance, and reliable power conversion. It supports pure sine wave output, multiple charge modes, and advanced safety features, making it an ideal choice for off-grid and grid-assisted applications.

Key Features:

• 11KVA Pure Sine Wave Inverter Provides 11,000W continuous power for stable, high-quality electricity.
• Dual MPPT Solar Charging Maximizes solar panel efficiency with an MPPT range of 60V - 500V DC.
• Battery-Free Operation Capable of running directly from solar power and grid input without a battery.
• Configurable Output Modes Supports SUB, SBU, and SUF priority settings for flexible energy management.
• Lithium Battery Compatibility Works seamlessly with LiFePO4 batteries via RS485 communication.
• Built-in Safety Features Includes overload, short circuit, over-temperature, and overcharge protection.
• Cold Start & Auto Restart Ensures continuous power supply in case of outages.
• Remote Monitoring Support Optional Wi-Fi/GPRS module for remote system tracking.
• Detachable Dust Cover Designed for harsh environments, ensuring durability and extended lifespan.

Technical Specifications:

Inverter Specifications:

• Model: HIN11000S
• Power Output: 11KVA / 11,000W
• MPPT Controllers: Built-in dual MPPT
• PV Input: Up to 11,000W
• MPPT Voltage Range: 60V - 500V DC
• Max PV Open Circuit Voltage: 500V DC
• Nominal AC Output Voltage: 220/230/240V AC
• Acceptable Voltage Range:
  • 170-280V AC (for computers)
  • 90-280V AC (for home appliances)
• Operating Frequency: 50/60Hz (Auto Sensing)
• Peak Efficiency: 94%
• Transfer Time: 10ms (for computers), 20ms (for home appliances)
• Battery Voltage: 48V
• Maximum Discharge Current: 220A
• Overload Protection: 5s @ 140% Load
• Max Solar Input Current: 18A x2
• Max Solar Charge Current: 160A
• Max AC Charge Current: 120A
• Total Max Charge Current: 160A
• Power Factor: 1.0
• Weight: 15kg
• Dimensions: 540 x 415 x 122mm
• Communication Ports: RS232, RS485, Dry Contact

Lithium Battery Specifications:

• Battery Type: Lithium Iron Phosphate (LiFePO4)
• Nominal Voltage: 51.2V
• Capacity: 5.12kWh (100Ah)
• Maximum Continuous Discharge Power: 5,500W
• Peak Discharge Power: 7,500W
• Cycle Life: Up to 20 times longer than lead-acid batteries
• Charging Voltage: 56.4V (recommended)
• Cut-Off Voltage: 47V
• Operating Temperature Range: -20°C to 60°C
• Weight: 49kg
• Dimensions: 480 x 170 x 500mm
• IP Rating: IP54 (Dust & Water Resistant)
• Communication: RS485, RS232, CAN
• Design Life: 15 years

What's Included in the Combo:

• 1x Ecco 11KVA Hybrid Inverter (MPPT, Pure Sine Wave)
• 1x Ecco 5.12kWh Lithium Battery (Wall-Mounted, 100Ah, LiFePO4)
• Battery Cables & Mounting Accessories
• 6x 545W Mono crystal Solar Panels Tier 1
• User Manual

ADD A ECCO WIFI DONGLE

https://gridsolutionssa.co.za/shop/new-arrivals/ecco-hybrid-inverter-wifi-dongle/

Battery Parameters:

Battery Type is set to "USE."
Bulk Charge Voltage is set to 56.4-56.6V.
Float Charge Voltage is set to 54V.
Cut Off Voltage is set to 47V.

PLEASE NOTE THAT SOLAR PANELS ARE COURIERED AT OWN RISK

Installation & Warranty Information:

• Installation must be carried out by a qualified electrician registered with the Department of Labour.
• A valid Certificate of Compliance (COC) is required for warranty claims.
• Inverter Warranty: 2-Year Repair Warranty
• Battery Warranty: 5-Year Manufacturer's Warranty
