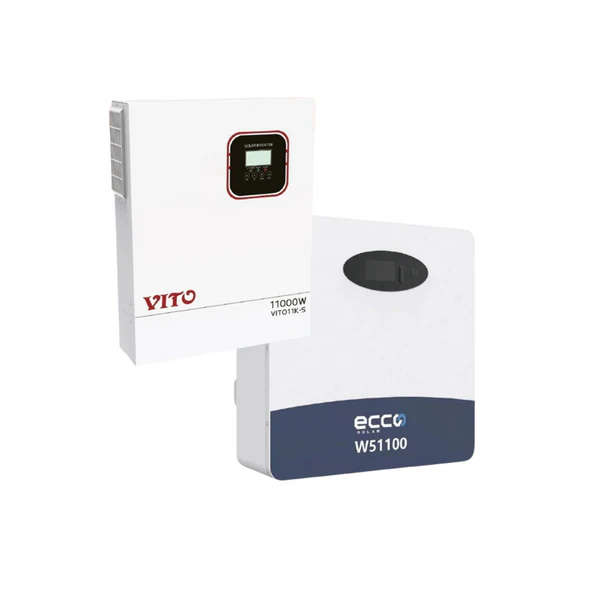

Vito 11KVA / 11 000W MPPT Hybrid Inverter Pure Sine Wave + 1 x 5.12kWh Ecco lithium Battery (WALL...

Vito 11KVA / 11 000W MPPT Hybrid Inverter Pure Sine Wave + 1 x 5.12kWh Ecco lithium Battery (WALL MOUNT)

Reliable Power Management for Industrial & Off-Grid Installations

The Vito 11kW Hybrid Inverter MPPT by GridSolutions SA offers a robust and dependable solution for demanding applications. Combining pure sine wave output, advanced MPPT solar charging, and efficient battery management, it's engineered for maximum reliability and performance. Ideal for commercial, industrial, and off-grid installations requiring continuous, uninterrupted power.

Key Features

• Versatile Operation: Combines inverter, MPPT solar charger, and battery charger for seamless power management.

• Pure Sine Wave Output: Ensures clean and stable power for industrial-grade systems and sensitive equipment.

• High-Efficiency MPPT Controller: Built-in 100A MPPT ensures optimal energy capture and efficiency from solar arrays.

• Advanced Configuration Options: Adjustable input voltage, charging priorities, and operating modes via LCD for precise control.

• Comprehensive Safety Protections: Overload, over-temperature, and short circuit protection for enhanced reliability.

• Industrial-Grade Design: Compact and durable (540 x 403 x 122 mm, 14.8 kg) for reliable performance in challenging environments.

Technical Specifications

• Rated Power: 5500W x 2

• Maximum PV Array Voltage: 500Vdc

• MPPT Voltage Range: 60Vdc 500Vdc

• Maximum MPPT Charge Current: 160A

• Maximum Input Current: 18A x 2

Description:

The ECCO 5.12kWh 51.2V 100Ah Lithium Iron Phosphate (LiFePO4) Battery is a reliable and long-lasting energy storage solution designed for solar, backup power, and off-grid applications. Engineered for high performance and safety, this wall-mounted battery is compact, easy to install, and compatible with multiple inverter brands.

Key Features:

• Efficient Energy Storage: 5.12kWh capacity with 100Ah nominal rating for stable and reliable power.
• Space-Saving Wall-Mount Design: Compact form factor for a clean, efficient installation.
• Advanced LiFePO4 Battery Technology:
  • Ensures longer cycle life with up to 20x the lifespan of lead-acid batteries.
  • Safer chemistry reduces the risk of combustion or explosion.
• High Power Output:
  • Maximum Continuous Output Power: 5,500W
  • Peak Output Power: 7,500W
• Scalability & Compatibility:
  • Supports up to 16 parallel connections for expandable storage capacity.
  • Compatible with multiple inverter brands for seamless integration.
• Durability & Safety:
  • IP54-rated enclosure for protection against dust and water splashes.
  • Built-in short circuit protection, overcharge/discharge safeguards, and thermal management.
• Optimized Charging & Discharging:
  • Bulk Charge Voltage: 56.4-56.6V
  • Float Charge Voltage: 54V
  • Cut-Off Voltage: 47V
  • Maximum Charging Voltage: 57.6V

Technical Specifications:

• 5.12kWh Ecco Lithium Battery 51.2V 100AH (W51100) Wall-Mount
• Battery Type: Lithium Iron Phosphate (LiFePO4)
• Nominal Voltage: 51.2V
• Nominal Capacity: 100Ah
• Best Operating Voltage Range: 43V 54.5V
• Maximum Continuous Discharge Current: 100A
• Enclosure Protection: IP54
• Communication Protocols: RS485, RS232, CAN
• Design Life: 15 years
• Dimensions (Max Installation): 480mm x 170mm x 500mm
• Package Dimensions: 590mm x 290mm x 615mm
• Weight: 49kg

What's in the Box?

• 1 x ECCO 5.12kWh 51.2V 100Ah Lithium Iron Phosphate Battery
• 1 x Battery Cables
• 1 x User Manual

Warranty & Installation Requirements:

• 5-Year Warranty - Battery
• 2-Year Repair Warranty - Inverter
• Installation must be performed by a qualified electrical wireman or master electrician registered with the Department of Labour.
• A valid Certificate of Compliance (COC) must be issued after installation, ensuring adherence to SANS 10142 standards.
• Warranty claims require installation photos, a valid COC, and proof of installation by a certified professional. Failure to comply may void the warranty.
