Ecco 3.5KW / 3500W 24V MPPT 100A Ecco Pure Sine Wave Hybrid Inverter + 2x 100AH Gel Batteries

Description:

Reliable Hybrid Solar Backup System

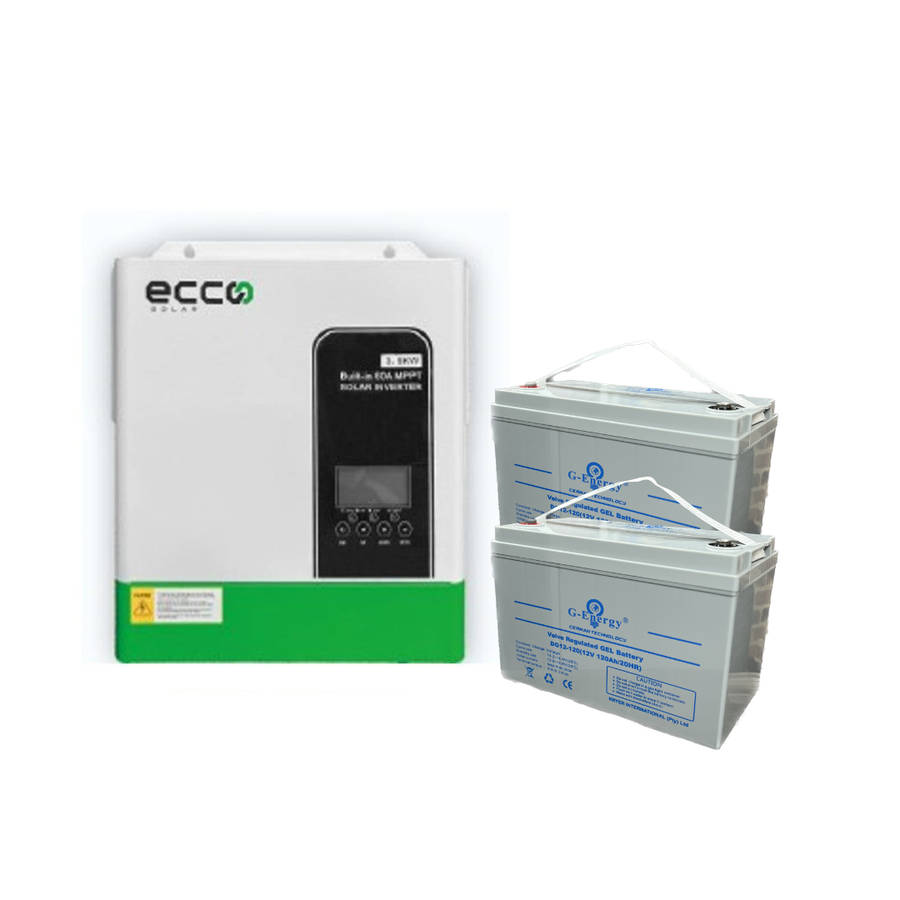

The Ecco 3.5KVA 3500W Hybrid Inverter & 2x 120Ah Gel Battery Combo is a versatile and efficient backup power solution, ideal for homes, small businesses, and off-grid applications. This system includes a pure sine wave inverter with built-in MPPT charging and two deep-cycle gel batteries, ensuring reliable energy storage and uninterrupted power supply.

Key Features & Benefits

• 3500W hybrid inverter delivering clean and stable pure sine wave output.
• Built-in 100A MPPT charge controller, optimizing solar energy conversion.
• Power factor 1.0, ensuring high efficiency and performance.
• Supports multiple output priority modes (UTL, SOL, SBU) for customizable power management.
• RS485 BMS communication for smart battery monitoring and management.
• Lithium battery activation, making it compatible with future lithium upgrades.
• Detachable dust cover, protecting components in harsh environments.
• Wi-Fi remote monitoring (optional) for real-time system tracking.

Technical Specifications

Inverter Specifications

• Rated Power: 3500VA / 3500W
• DC Input: 24VDC, 158A
• AC Output: 230VAC, 50/60Hz, 23.5A

AC Charger Mode

• AC Input: 230VAC, 50/60Hz, 23.5A
• DC Output: 27VDC
• Max. AC Charge Current: 60A (default: 30A)
• Max. PV+AC Charge Current: 100A
• AC Output: 230VAC, 50/60Hz, 15.2A

Solar Charge Mode

• Max. PV Array Power: 4000W
• Min. Solar Voltage: 120VDC
• Max. Solar Voltage (VOC): 500VDC
• Max. MPPT Charge Current: 100A

Battery Specifications

• 2x 120Ah 12V Gel Batteries included.
• Weight per battery: 22.7kg
• Battery Dimensions: 420mm x 185mm x 265mm
• Deep-cycle gel technology, providing maintenance-free operation.

Ideal Applications

• Home and small business backup power solutions.
• Load shedding protection for uninterrupted electricity.
• Solar energy storage for grid-tied, hybrid, or off-grid systems.
• Power backup for essential devices and appliances.

Warranty & Installation Requirements

• 5-year repair warranty on the inverter.
• Gel batteries 30 day replacement warranty.
• Must be installed by a qualified electrician with SANS 10142 compliance.
• Certificate of Compliance (COC) required for warranty validation.
• Failure to provide installation documentation may void the warranty.
