Ecco 5.5KVA / 5500W 48V MPPT 100A Hybrid Inverter (Parallel Version) + 1x SVOLT 5.43kWh 48V 106Ah...

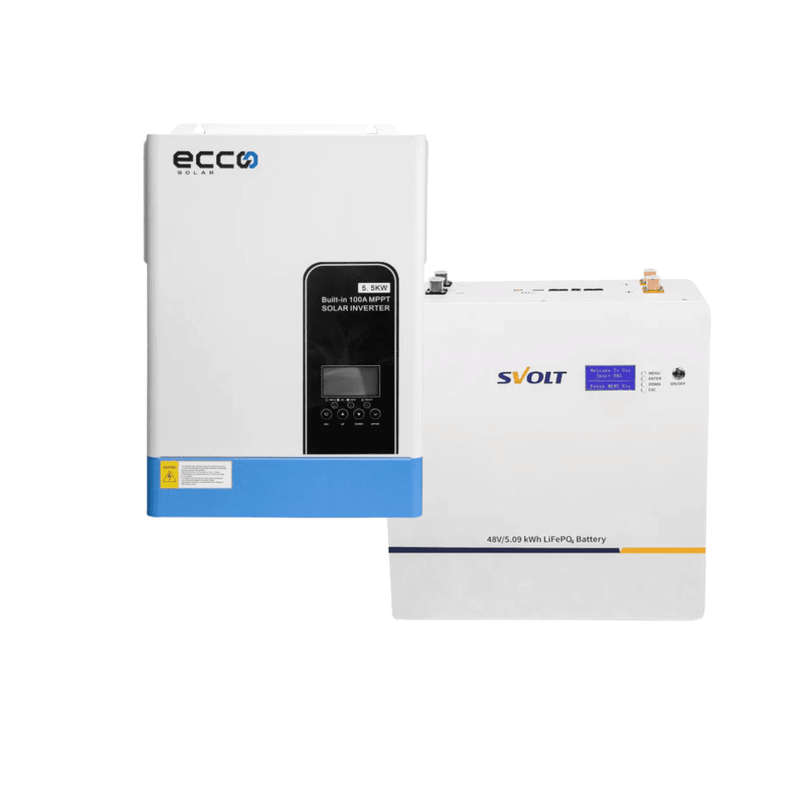

Ecco 5.5KVA / 5500W 48V MPPT 100A Hybrid Inverter (Parallel Version) + 1x SVOLT 5.43kWh 48V 106Ah A-Grade Lithium Battery / Solar & Backup Power Kit

Product Description:

The Ecco 5.5KVA Hybrid Inverter (Parallel Version), paired with the SVOLT 5.43kWh 48V 106Ah A-Grade Lithium Battery, delivers an efficient and scalable solar and backup power solution for homes and businesses. Featuring MPPT (Maximum Power Point Tracking) technology, this inverter ensures 30% higher charge efficiency compared to PWM controllers. With parallel capability, multiple inverters can be linked for higher power output, making it ideal for expanding energy storage solutions.

The SVOLT Lithium Battery is built using A-Grade cell technology, ensuring long-lasting performance, superior energy density, and high discharge capabilities. Designed for wall-mounted installation, this battery is perfect for solar systems, UPS backup, and industrial applications.

Key Features:

Hybrid Inverter Features:

• Pure Sine Wave Output Provides clean and stable power for sensitive electronics.
• MPPT 100A Charge Controller Built-in Enhances solar energy efficiency.
• Smart LCD Control Panel Customizable settings for working modes, charge current, and voltage configurations.
• Multi-Source Power Management:
  • Solar priority mode Maximize solar energy usage.
  • Grid priority mode Maintain continuous power.
  • Hybrid mode (Solar + Grid + Battery) Optimize power efficiency.
• High PV Voltage Support:
  • MPPT Voltage Range: 60V - 500V DC
  • Maximum PV Open Circuit Voltage: 500V DC
• Battery-Free Operation Can power loads directly from solar energy without requiring a battery.
• Parallel Operation Connect multiple inverters for increased power output.
• Automatic Transfer Switching:
  • 10ms transfer time for uninterrupted power to computers.
  • 20ms transfer time for household appliances.
• RS485 BMS Communication Seamless integration with lithium battery systems.
• Wi-Fi Remote Monitoring (Optional Wi-Fi Dongle Sold Separately) Enables real-time system tracking.

Technical Specifications:

Inverter Specifications:

• Rated Power Output: 5.5KVA / 5500W
• Input Voltage: 230V AC
• Frequency Range: 50Hz / 60Hz (Auto-Sensing)
• Output Voltage Regulation (Battery Mode): 230V AC ±5%
• Surge Power: 11,000W
• Peak Efficiency: 93%
• Waveform: Pure Sine Wave

Battery & AC Charger:

• Battery Voltage: 48V DC
• Floating Charge Voltage: 54.8V DC
• Overcharge Protection Voltage: 60V DC
• Maximum Charging Current: 80A

Solar Charge Controller:

• Maximum PV Array Open Circuit Voltage: 500V DC
• Maximum Solar Charging Current: 100A

Physical Dimensions:

• Inverter Size: 438 x 295 x 105mm
• Inverter Weight: 9kg

Battery Specifications (SVOLT 5.43kWh 48V 106Ah A-Grade Lithium Battery):

• Type: Lithium Iron Phosphate (LiFePO4)
• Nominal Voltage: 48V
• Capacity: 106Ah (5.43kWh)
• Cycle Life:
  • 6,000+ cycles at 80% Depth of Discharge (DOD)
  • Retains 80% capacity after extended use
• Charge & Discharge Performance:
  • Maximum Continuous Charge Current: 100A
  • Maximum Continuous Discharge Current: 100A
  • Peak Discharge Current: 150A
• Operating Temperature Range:
  • Charge: -20°C to 65°C
  • Discharge: 0°C to 50°C
• Built-in Battery Management System (BMS):
  • Overcharge, over-discharge, and over-temperature protection
  • Enhanced safety features to prevent overheating and short circuits
• Wall-Mount Design: Compact and space-efficient
• Lightweight Construction: Superior to lead-acid alternatives
• Weight: 49.5kg
• Dimensions: 688 x 447 x 211mm
• Warranty: 5-Year Manufacturer's Warranty

What's Included in the Package:

• 1x Ecco Hybrid Inverter 5.5KVA / 5500W 48V (MPPT 100A, Pure Sine Wave, Parallel Ready)
• 1x SVOLT 5.43kWh 48V 106Ah A-Grade Lithium Iron Phosphate Battery
• 1x Red (Positive) Battery Cable
• 1x Black (Negative) Battery Cable
• 1x Ethernet Cable
• 1x User Manual
• 1x Wall Mount Bracket
• 1x Warranty Card
• 1x Parallel Cable

Important Notes:

• It is recommended to use ECCO batteries for guaranteed performance.
• Installation must be performed by a qualified wireman or master electrician.
• A valid Certificate of Compliance (COC) is required for warranty claims.
• Warranty claims without professional installation proof, installation photos, or a valid COC may be rejected.
• Damage due to improper use or burning out of the unit is not covered under warranty.

Ideal For:

• Load shedding and emergency backup power
• Small business and home solar systems
• Off-grid and hybrid solar energy storage
• Reliable power backup for essential appliances

Installation & Warranty Information:

• Inverter Warranty: 5-Year Repair Warranty
• Battery Warranty: 5-Year Manufacturer's Warranty (Retains 80% capacity or 6,000 cycles, whichever comes first)
• 10-Year...
