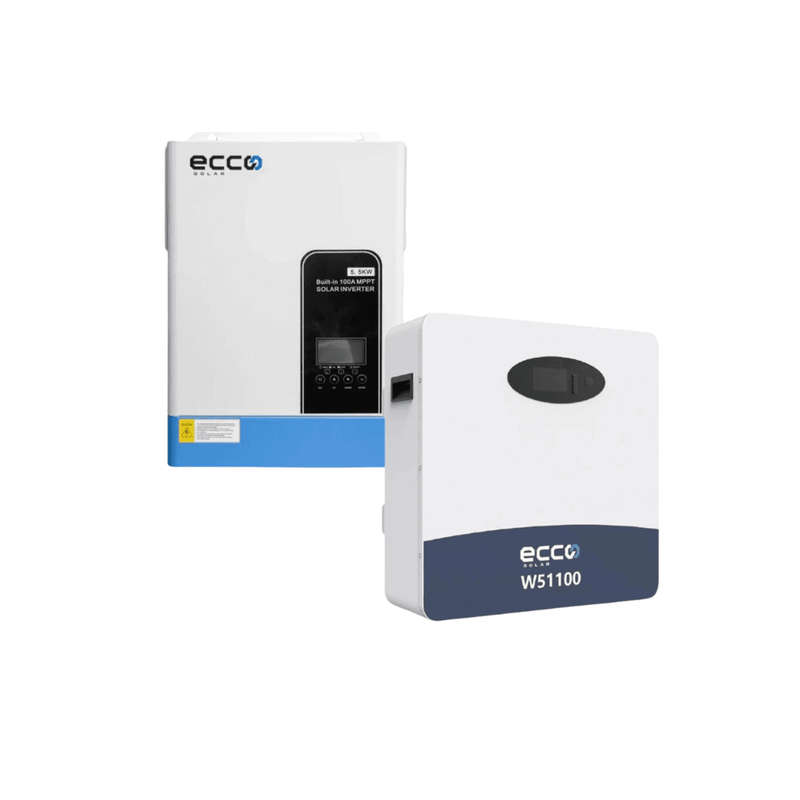

Ecco 6.2kVA Hybrid Inverter + 1x 5.12kWh 51.2V ECCO Lithium Battery 120A MPPT / Pure Sine Wave (HIN6200S)
Product Description: Power your home or business with the Ecco HIN6200S 6.2kVA Hybrid Inverter and 5.12kWh 51.2V ECCO Lithium Battery. This advanced energy solution features pure sine wave output, MPPT solar charging, and dual AC outputs for efficient power management. The long-lasting lithium battery ensures reliable and scalable backup power.
Key Features:
- 6.2kVA Hybrid Inverter Provides up to 6200W maximum output power.
- 5.12kWh ECCO Lithium Battery (51.2V, 100Ah) Ensures long-lasting energy storage.
- Pure Sine Wave Output Stable and efficient power for sensitive electronics.
- MPPT Solar Charger (Maximum Power Point Tracking) Supports up to 6500W PV input.
- Dual AC Outputs Accommodates diverse energy needs.
- Lithium Battery Activation Can be activated by PV or utility power.
- High Efficiency Achieves 94% peak efficiency.
- Overload Protection Smart load management for safety.
- Wide AC Input Range Operates within 170-280VAC for PCs and 90-280VAC for home appliances.
- Communication Interfaces Supports RS485 (RJ45) & RS232 (DB9) for advanced system monitoring.
Technical Specifications:
Inverter Performance:
- Model: HIN6200S
- Phase: Single-phase input & output
- Maximum PV Input Power: 6500W
- Maximum Output Power: 6200VA/6200W
- Surge Power: 12400VA
- Waveform: Pure sine wave
- Efficiency: 94%
- Transfer Time: 10ms (PC); 20ms (Home Appliances)
Battery System:
- Voltage: 51.2V DC
- Capacity: 100Ah / 5.12kWh
- Charging Method: CC/CV (Constant Current/Constant Voltage)
- Cycle Life: Up to 20 times longer than lead-acid batteries
- Lighter Weight: 40% less than equivalent lead-acid batteries
- High Discharge Rate: Delivers twice the power compared to lead-acid batteries
- Temperature Range: -20°C to 60°C
- Safety Features: Protection against overcharging, short circuits, and high impact
Solar & AC Charging:
- Solar Charger Type: MPPT
- Maximum PV Array Power: 6500W
- MPPT Voltage Range: 60V-500V DC
- Maximum Solar Input Current: 27A
- Maximum Solar Charge Current: 120A
- Maximum AC Charge Current: 80A
- Total Maximum Charge Current: 120A
Physical & Environmental Details:
- Inverter Dimensions: 438mm x 312mm x 122mm
- Package Dimensions: 540mm x 390mm x 210mm
- Net Weight: 11kg
- Operating Temperature Range: -10°C to 50°C
- Storage Temperature: -15°C to 60°C
- Humidity Tolerance: 5% to 95% RH (Non-condensing)
Included in the Package:
- 1x Ecco 6.2kVA Hybrid Inverter 120A MPPT
- 1x 5.12kWh ECCO Lithium Ion Phosphate Battery (51.2V, 100Ah)
Warranty Information:
- Inverter: 5-year warranty
- Lithium Battery: 5-year warranty
Why Choose the Ecco HIN6200S + ECCO Lithium Battery Combo?
This premium energy storage solution is ideal for backup power, solar integration, or off-grid applications. With high efficiency, long cycle life, and superior power management, this system delivers reliable and uninterrupted performance.
Order today for a smarter, more efficient power solution!
Optional Add-On:
Enhance system monitoring by adding a WiFi Dongle for the Ecco Hybrid Inverter, allowing real-time tracking and remote control capabilities.
