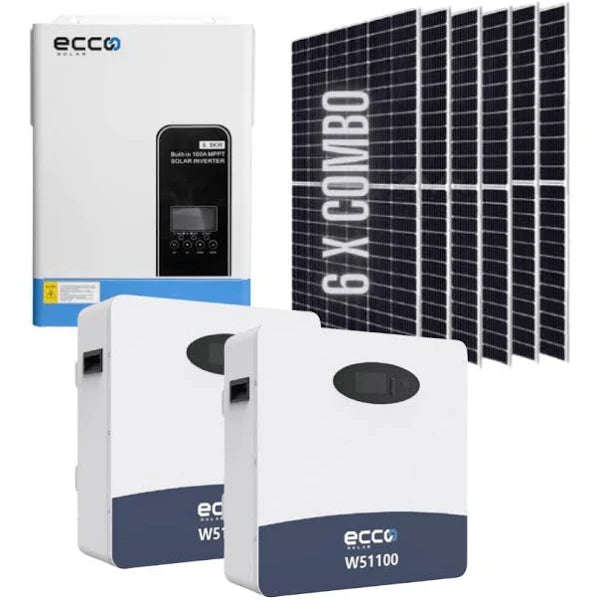

Ecco 6.2kVA Hybrid Inverter and 2x 5.12kWh Ecco 100Ah Lithium Battery + 6x 585W Bifical Mono Crys...

Optimize Your Renewable Energy System with Ecco 6.2kVA Hybrid Inverter

Upgrade your solar power setup with the Ecco 6.2kVA Hybrid Inverter, 2x 5.12kWh 100Ah Lithium Batteries, and 585W Bifical Mono Crystalline Solar Panels. This all-in-one solar power solution offers MPPT charging, pure sine wave output, and high-performance lithium storage, making it perfect for residential and small commercial applications.

1. Key Features

1.1 High-Performance Hybrid Inverter 6.2kVA capacity delivers up to 6200W output power
1.2 MPPT 120A Solar Charger Maximizes energy efficiency with 6500W PV input
1.3 5.12kWh Lithium Battery (51.2V, 100Ah) Wall-mounted design for easy installation
1.4 600W Mono Crystalline Solar Panels High-efficiency panels for optimal energy production
1.5 Pure Sine Wave Output Ensures stable power for sensitive electronics
1.6 Dual AC Outputs Supports varied energy needs
1.7 Lithium Battery Activation Can be activated via PV or utility power
1.8 High Efficiency Peak efficiency of 94%
1.9 Overload Protection Smart load management for safety
1.10 Wide AC Input Range Operates within 170-280VAC (PCs) and 90-280VAC (home appliances)
1.11 Advanced Communication Interfaces Supports RS485 (RJ45) & RS232 (DB9) for system monitoring

2. Technical Specifications

2.1 Inverter Performance

• Model: HIN6200S
• Phase: Single-phase input & output
• Maximum PV Input Power: 6500W
• Maximum Output Power: 6200VA / 6200W
• Surge Power: 12400VA
• Waveform: Pure sine wave
• Efficiency: 94%
• Transfer Time: 10ms (PC), 20ms (Home Appliances)

2.2 Battery System

• Voltage: 51.2V DC
• Capacity: 100Ah / 5.12kWh
• Cycle Life: Up to 20 times longer than lead-acid batteries
• Lighter Weight: 40% less than equivalent lead-acid batteries
• High Discharge Rate: Delivers twice the power compared to lead-acid batteries
• Temperature Range: -20°C to 60°C
• Safety Features: Protection against overcharging, short circuits, and high impact
• Battery Type Setting: USE
• Bulk Charge Voltage: 56.4-56.6V
• Float Charge Voltage: 54V
• Cut Off Voltage: 47V

2.3 Solar & AC Charging

• Solar Charger Type: MPPT
• Maximum PV Array Power: 6500W
• MPPT Voltage Range: 60V-500V DC
• Maximum Solar Input Current: 27A
• Maximum Solar Charge Current: 120A
• Maximum AC Charge Current: 80A
• Total Maximum Charge Current: 120A

3. Physical & Environmental Details

• Inverter Dimensions: 438mm x 312mm x 122mm
• Battery Dimensions: 480mm x 170mm x 500mm
• Package Size: 590mm x 290mm x 615mm
• Net Weight: 49kg
• Operating Temperature Range: -10°C to 50°C
• Storage Temperature: -15°C to 60°C
• Humidity Tolerance: 5% to 95% RH (Non-condensing)
• IP Rating: IP54

4. Included in the Package

4.1 1x Ecco 6.2kVA Hybrid Inverter
4.2 2x 5.12kWh ECCO Lithium Ion Phosphate Battery (51.2V, 100Ah)
4.3 585W Bifical Mono Crystalline Solar Panels
4.4 Battery Cables & Mounts

5. Warranty Information

5.1 Inverter: 5-year warranty
5.2 Lithium Battery: 5-year warranty

6. Important Notes

6.1 All inverters and batteries must be installed by a qualified electrical wireman or master electrician
6.2 A valid electrical Certificate of Compliance (COC) is required for warranty claims
6.3 Installations must comply with SANS 10142 regulations
