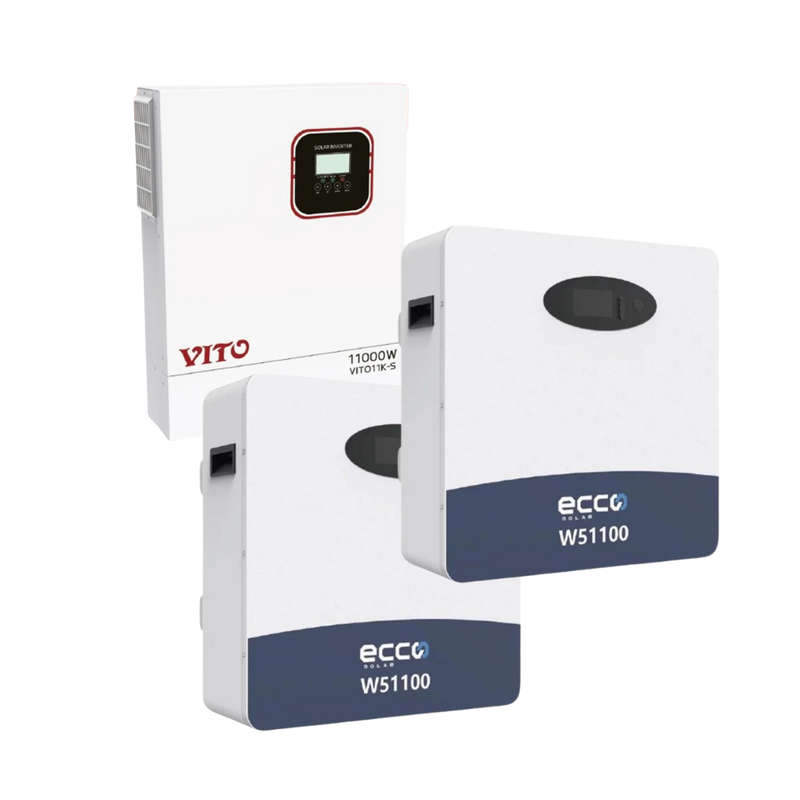

11KVA / 11 000W VITO Pure Sine Wave Hybrid Inverter MPPT + 2 x 5.12kWh Ecco Lithium Battery
Versatile Power Management
- Combines inverter, MPPT solar charger, and battery charger for uninterrupted power.
- Pure sine wave inverter ensures clean and stable energy output.
- Operates without batteries, providing flexibility for diverse installations.
- Built-in MPPT solar controller optimizes charging efficiency.
User-Friendly Configuration
-Adjustable input voltage range for home appliances and personal computers via LCD.
-Customizable battery charging current to suit various applications.
-Prioritize AC or solar charging with easy LCD settings.
-Automatic restart function when AC power is restored.
-Cold start function allows initiation without grid power.
Reliable Safety Features
-Protection against overloads, overheating, and short circuits for enhanced reliability.
-Smart battery charger design maximizes battery performance and longevity.
-Overcharge protection set at 63Vdc to prevent damage.
Solar Input Specifications
-Rated Power: 5500W x 2 for high-efficiency performance.
-Maximum PV Array Open Circuit Voltage: 500Vdc.
-MPPT Voltage Range: 60Vdc - 500Vdc for flexible solar array configurations.
-Maximum MPPT Charge Current: 160A for optimized solar charging.
-Maximum Input Current: 18A x 2 for enhanced energy capture.
Utility Charging Mode
-Maximum Charging Current (AC+PV): 160A.
-Maximum AC Charging Current: 120A.
Compact and Durable Design
-Size: 540 x 403 x 122 mm.
-Weight: 14.8 kg.
-Designed for efficient cooling and reliable performance in various environments.
Package Includes
-1x Vito 11kW Hybrid Inverter MPPT x 1
-2 x 5.12kWh Ecco Lithium Battery WALL MOUNT
-User Manual x 1
Lithium Battery (Ecco 51.2V 100Ah 5.12kWh W51100 Wall-Mounted)
Key Features:
-Wall-mounted design easy to install and aesthetically pleasing
-Lithium Iron Phosphate (LiFePO4) cells safe, long life cycle
-Max 1C charge/discharge rate
-User-friendly interface
-Compatible with multiple inverter brands
-Supports up to 16 parallel groups
-Compliant with North American UL & EU TUV standards
Advantages:
- Longer Cycle Life: Up to 20× longer cycle life and 5× longer float/calendar life than lead-acid batteries
- Lighter Weight: ~40% of the weight of comparable lead-acid batteries
- Higher Power: 2× the power of lead-acid batteries while maintaining high energy capacity
- Wider Temperature Range: -20°C to 60°C
- Superior Safety: Eliminates risk of explosion or combustion from impact, overcharging, or short circuits
What's in the Box?
- Battery
- Battery Cables & Mounts
Battery Parameters:
- Battery Type: Set to "USE"
- Bulk Charge Voltage: 56.4-56.6V
- Float Charge Voltage: 54V
- Cut-off Voltage: 47V
Technical Specifications:
- Nominal Voltage: 51.2V
- Nominal Capacity: 100Ah
- Total Power: 5.12kWh
- Best Operating Voltage Range: 43V - 54.5V
- Short Circuit Protection: Yes
- Power-on Reverse Connection Protection: Optional
- Max Charging Voltage: 57.6V
- Best Charging Voltage: 56.4V (Recommended)
- Max Continuous Output Power: 5500W
- Max Momentary Output Power: 7500W
- Local Parameter Configuration: Supported
- Max Installation Dimensions (mm): 480 × 170 × 500
- Package Size (mm): 590 × 290 × 615
- Weight: 49kg
- IP Class: IP54
- Communication: RS485, RS232, CAN
- Design Life: 15 years
Battery:
- Voltage: 48V
- Max Discharge Current: 220A
- Floating Charge Voltage: 54VDC
- Overcharge Protection: 63VDC
- Charging Method: CC/CV
Warranties & Installation Requirements
- 5-Year Warranty - Battery
- 2-Year Repair Warranty - Inverter
- Installation must be performed by a qualified electrical wireman or Master Electrician with valid registration with the Department of Labour.
- A valid Electrical Certificate of Compliance (COC) must be issued after installation, specific to the backup or solar system.
- Installation must comply with SANS 10142 and all its parts.
- Warranty claims must include:
- Installation photos
- Valid COC
- Proof of installation by a qualified wireman or Master Electrician
- Failure to provide the above may void the warranty.
