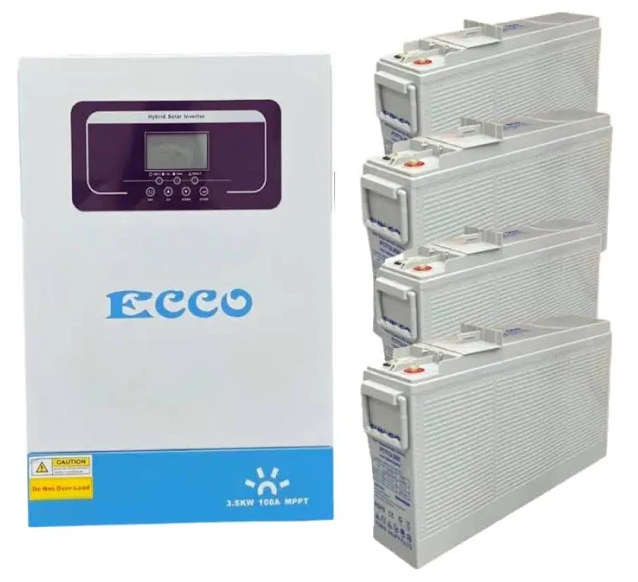

ECCO Inverter and Battery Combo 5.5 KVA & 4 X 200 Ah Gel Battery

ECCO Inverter and Battery Combo 5.5 KVA & 4 X 200 Ah Gel Battery
The main difference between PWM and MPPT charge control devices is that the MPPT devices are more efficient. MPPT charge control devices have 30 % more efficient in charge efficiency according to PWM type. Panel voltage and battery voltage should be matched in PWM systems.

ECCO Inverter Features:
Pure Sine Wave Solar Inverter
Output Power Factor 1
High PV Input Voltage Range (120VDC - 500VDC)
Built-in 100A MPPT Solar Controller
Supports Multiple Output Priority: UTL, SOL, SBU, SUB
Parallel Operation with Up to 12 units (Parallel Version)
Supports Parallel Operation in Single Phase/ 3 Phase (Parallel Version)
Supports Wireless Parallel, Without Extra Sharing Current Cable
RS485 Communication for BMS
Wifi Monitoring
Battery Equalization Function to Optimise Battery Performance and Extended Lifecycle

Inverter Mode
- Rated Power: 5500VA / 5500W
- DC Input: 48VDC, 127A
- AC Output: 230VAC, 50/60Hz, 23.9A

AC Charger Mode
- AC Input: 230VAC, 50/60Hz, 40A
- DC Output: 54VDC
- Max. Charge Current(AC): 60A Default 30A
- Max. Charge Current(PV+AC): 100A
- AC Output: 230VAC, 50/60Hz, 23.9A

Solar Charge Mode
- Max. PV Array Power: 5500W
- Min. Solar Voltage: 120VDC
- Max. Solar Voltage (VOC): 500VDC
- Max. MPPT Charge Current: 100A

Ingress Protection: IP21 (Indoor Use)

Dimensions ; 38 x 55 x 20 cm
Weight : 9.65kg

What's in the box
1 x ECCO 5.5KW Inverter
1 x Wifi Monitoring Module
3 x Connecting Cables
1 x User Guide

Battery Size:

57 x 13 x 36

30kg

Combo includes:

4x 12V 200AH Deep Cycle Gel Battery Slim Line (Batteries brand & Size may change due to high demand)
1x Hybrid Inverter 48V 5.5 KVA 5500W MPPT 100A Inverter Pure Sine Wave - Ecco(5 Year Repair Warranty)
