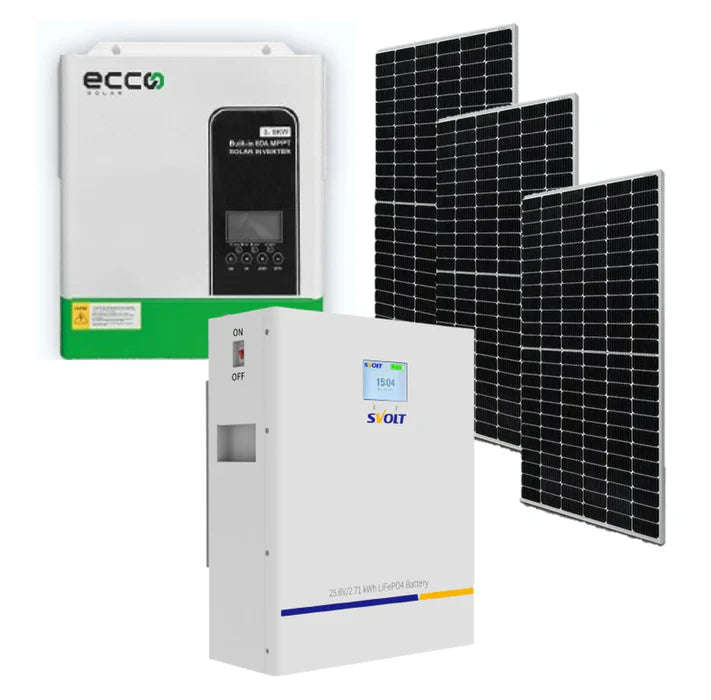

ECCO Solar 3500w Hybrid Inverter and Battery SVOLT 24V 106Ah 2.71 kWh Lithium Battery Plus 3 X 445w JA Solar Panels
3.5 Kva Hybrid Inverter 24v 3500w Mppt 100A Inverter Pure Sine Wave - Ecco
Inverter Mode :
Rated Power : 3500VA/3500W
DC Input : 24VDC 158A
AC Ouput : 230VAC 50/60Hz 15.2A
Ac Charger Mode :
AC Input : 230VAC 50/60 Hz 23.5A
DC Ouput : 27VDC
MAX Charge CUrrent : 80A
Max Charger Current AC+PV : 100A
AC Ouptu : 230vac 50/60 hz 15.2A
Solar Charger Mode:
Max PV Array Power: 4000W
Min Solar Voltage : 60VDC
Max Solar Voltage (VOC) : 500VDC
Max Charge Current : 100A
SVOLT 24V 106Ah 2.71 kWh A-Grade Lithium Battery CNN2511
is manufactured by a world-leading manufacturer SVOLT using A-Grade Battery cells. This allows superior performance, capacity, and reliability. Using state of high power A-Grade cell technology, the Lithium Battery is designed for environmentally sensitive areas and is committed to recycling.
Features:
- A-Grade Cell Technology
- Maintenance-free
- Environmental Friendly
- Wide Variety of Markets
- Renewable Energy
- 7 Protection Features
- Built-in Battery Management System
- Mountable
- 5-year Warranty
Battery Specifications:
- Energy: 2.71kWh
- Battery Type-Chemistry: LiFePO4
- Nominal Voltage: 25.6V
- Nominal Capacity: 106Ah
- Energy Density: 2713.6Wh
- Terminal Type: Fast Plug In & Plug Out
- Case Material: SPCC
- BMS Built-in: Yes
- LCD Screen
- Internal Resistance: - Efficiency - Round Trip: >99%
- Self Discharge per Month: - Max Parallel Connectors: 16Pcs
- Series Connections: Not Allowed
- Cycle Life(0.2C, 25 C @ 80% DOD): >6000 Cycles
- Discharge Temperature: -20 C to 65 C
- Charge Temperature: 0 C to 50 C
- Storage Temperature: -10 C to 30 C
- Voltage Window: 21.6V - 29.2V
- Recommended Charge Voltage: 28.8 0.20V
- Max Charge Voltage: 29.2 0.20V
- Recommended Charge Current: 50A
- Max Continuous Charge Current: 100A
- Recommended Discharge Voltage: 22.4 0.20V
- Max Discharging Voltage: 21.6 0.20V
- Max Continuous Discharge Current: 100A
- Peak Discharge Current: 150A
- Dimensions: L47 x W35 x H15.5 (cm)
- Weight: 28kgs
BMS Characteristics:
- Primary Charging Protection: (Current: 106A) (Delay Time:1000ms)
- Secondary Charging Protection: (Current: 110A) (Delay Time:500ms)
- Primary Discharging Protection: (Current: 110A) (Delay Time: 5s 2s)
- Secondary Discharging Protection: (Current: 150A) (Delay Time: 5s 2s)
- Over Charge Voltage Protection: (Voltage: 29.2V) (Delay Time:500ms)
- Over Discharge Voltage Protection: (Voltage: 21.6V) (Delay Time:500ms)
- Temperature Protection: (PCB Temperature: 115 C) (Recover: 85 C)
- Communication Port: Major RS485, RS232,CAN,Dryport
What's in the box
1 x SVOLT 25.6V 106Ah Lithium Battery
1 x Red (Positive) Battery Cable
1 x Black (Negative) Battery Cable
1 x Ethernet cable
1 x Manual
Series connections
Cycle life (0.2C, 25°C@80% DOD) >6000 Cycles
Max continuous charge current 100A
Recommend Discharge voltage 22.4±0.20V
Max Discharging Voltage 21.6±0.20V
Max Continuous Discharge current 100A
Peak Discharge Current 150A
Package Includes:
- 1x SVOLT 24V 106Ah 2.71 kWh A-Grade Lithium Battery Without Communication CNN2511 (XEA25A) (5 Years Warranty)
- 1x Hybrid Inverter 24v 3.5 Kva 3500w Mppt 60A Inverter Pure Sine Wave - Ecco (5 Years Warranty)
- 3X JA 445w Mono JAM54D40-445/LB Solar Panel (Black Frame)
