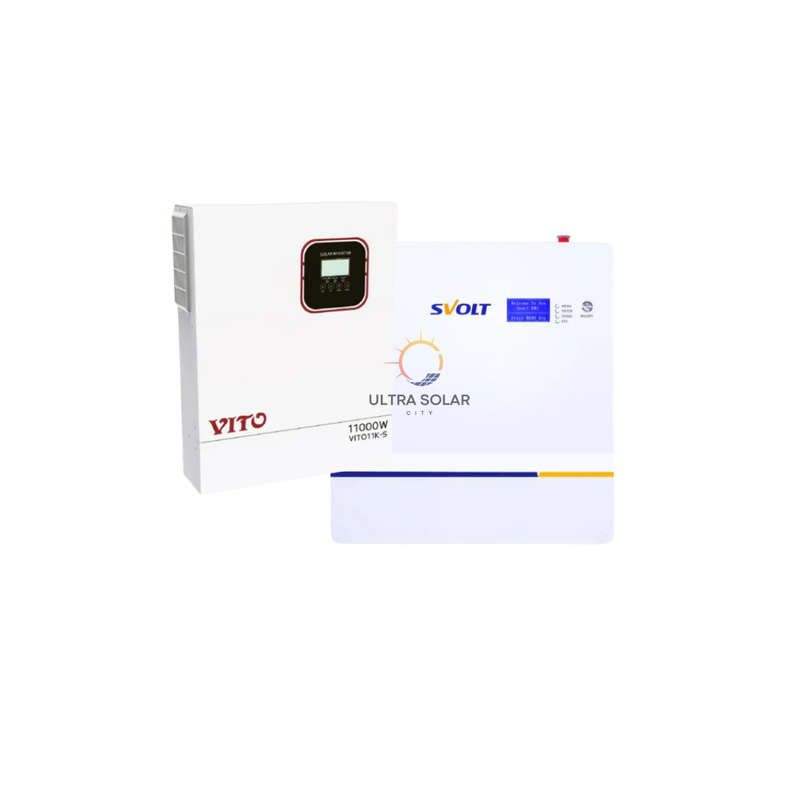

11KVA VITO Hybrid Inverter + SVOLT 5.43kWh 106AH 51.2V Lithium Ion Battery (SQUARE - Wall Mounted...

VITO 11KVA Hybrid Inverter + SVOLT 5.43kWh 51.2V A-Grade Lithium Battery Combo Solar Ready Power Backup System with MPPT, LiFePO, and LCD Monitoring

Take your energy setup to the next level with this premium power solution that combines the VITO 11KVA Pure Sine Wave Hybrid Inverter with the SVOLT 5.43kWh 51.2V A-Grade LiFePO Lithium Battery. Whether you're running an off-grid solar system, a home backup setup, or a commercial application, this combo delivers unmatched performance, efficiency, and reliability.

Combo Highlights:

• 11KVA / 11000W Pure Sine Wave Inverter

• Advanced MPPT Solar Charge Controller (Dual 5500W)

• 5.43kWh A-Grade Lithium Battery (LiFePO)

• Built-in Battery Management System (BMS)

• High Round-Trip Efficiency (Up to 97%)

• LCD Display for Real-Time Monitoring

• Wall-Mounted, Space-Saving Battery Design

• 6000+ Cycle Life at 80% DOD

• RS485 Compatible | Ideal for Solar & Backup Power

VITO 11KVA 48V 160A MPPT Hybrid Inverter

The VITO Hybrid Inverter features dual MPPT for optimal solar energy harvesting, pure sine wave output for clean power delivery, and RS485 communication for seamless lithium battery integration. It's designed for high-performance, off-grid, or hybrid solar systems.

Key Specifications:

• Max PV Input: 11,000W (Dual 5500W MPPT)

• Max Solar Voltage: 500VDC

• Max Solar Charge Current: 160A

• AC Input Range: 90-280VAC

• Battery Voltage: 48V | Max Discharge: 220A

• Surge Power: 22,000VA

• Efficiency: 94%

• Charging Mode: CC/CV

• Monitoring: LCD Display, RS232, RS485, Optional WiFi

• Size & Weight: 540 x 415 x 122 mm | 15kg

SVOLT 5.43kWh 51.2V 106Ah A-Grade LiFePO Lithium Battery

Manufactured by SVOLT, a global leader in battery technology (backed by the Haval automotive group), this wall-mounted LiFePO battery delivers long-lasting, safe, and stable powerideal for residential and industrial use.

Battery Highlights:

• Capacity: 5.43kWh (51.2V / 106Ah)

• Max Discharge Current: 100A Continuous | 150A Peak

• Built-In BMS: Overcharge, Overcurrent, Short Circuit Protection

• Cycle Life: 6000+ Cycles @ 80% DOD

• Charge Voltage: Max 58.4V | Recommend 56V

• Discharge Cut-off: 43.2V

• Efficiency: 97% Round-Trip

• LCD Monitoring Display: Yes

• Mounting: Wall-Mounted (Space Saver)

• Weight: 44kg | Size: Compact & Durable

• Parallel Capability: Up to 16 Batteries

Ideal For:

• Solar Off-Grid Systems

• Home & Business Backup Power

• Load Shedding Solutions

• Renewable Energy Storage

• Telecom, Medical, UPS, and EV Applications

Built-In Smart Features:

• EQ Function for longer battery life

• Auto Battery Activation via PV or Grid

• Multiple Output Priority Modes: SUB, SBU, SUF

• WiFi Monitoring (Optional Dongle)
