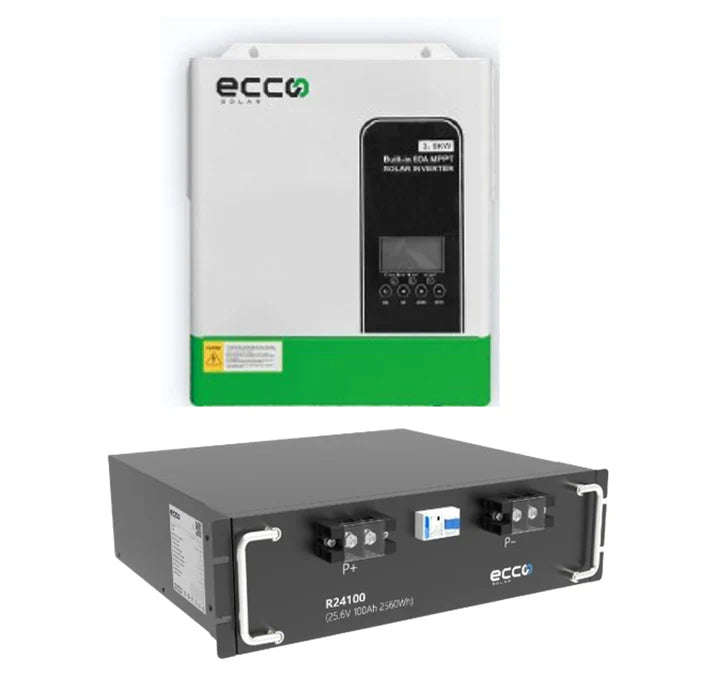

ECCO Solar Hybrid Inverter and Battery Combo 3.5kva / 3500w Mppt & 2.56 Ecco Lithium Battery

ECCO Solar Hybrid Inverter and Battery Combo 3.5kva / 3500w Mppt & 2.56 Ecco Lithium Battery

3.5 Kva Hybrid Inverter 24v 3500w Mppt 100A Inverter Pure Sine Wave - Ecco

Inverter Mode :
Rated Power : 3500VA/3500W
DC Input : 24VDC 158A
AC Ouput : 230VAC 50/60Hz 15.2A

Ac Charger Mode :
AC Input : 230VAC 50/60 Hz 23.5A
DC Ouput : 27VDC
MAX Charge CUrrent : 80A
Max Charger Current AC+PV : 100A
AC Ouptu : 230vac 50/60 hz 15.2A

Solar Charger Mode:
Max PV Array Power: 4000W
Min Solar Voltage : 60VDC
Max Solar Voltage (VOC) : 500VDC
Max Charge Current : 100A

2.56 KWh 25.6V 100AH Lithium LifePO4 Battery R24100 Ecco

Specifications

Nominal Voltage (V) 25.6
Nominal Capacity (Ah) 100
Total Energy (kWh) 2.56
Operating Voltage Range (V) 21.6 ~ 28.8
Discharge Ending Voltage (V) 21.6
Charge Limited Voltage (V) 28.8
Maximum Charge Voltage (V) 29.2
Standard Charge/Discharge Current (A) 50
Maximum Charge/Discharge Current (A) 100
Maximum Continuous Output Power (W) 2560
Maximum Momentary Output Power (W) 3200
Efficiency of Charge 99% (0.5C, 25)
Efficiency of Discharge 98% (1C)
Protection Rating IP 54
Cycle Life >5000 @ 0.5C 80% DOD, 25

Package Includes:

• 1x 2.56 KWh 25.6V 100AH Lithium LifePO4 Battery R24100 Ecco 5 Year Warranty

• 1x Hybrid Inverter 24v 3.5 Kva 3500w Mppt 60A Inverter Pure Sine Wave - Ecco (5 Years Warranty)
