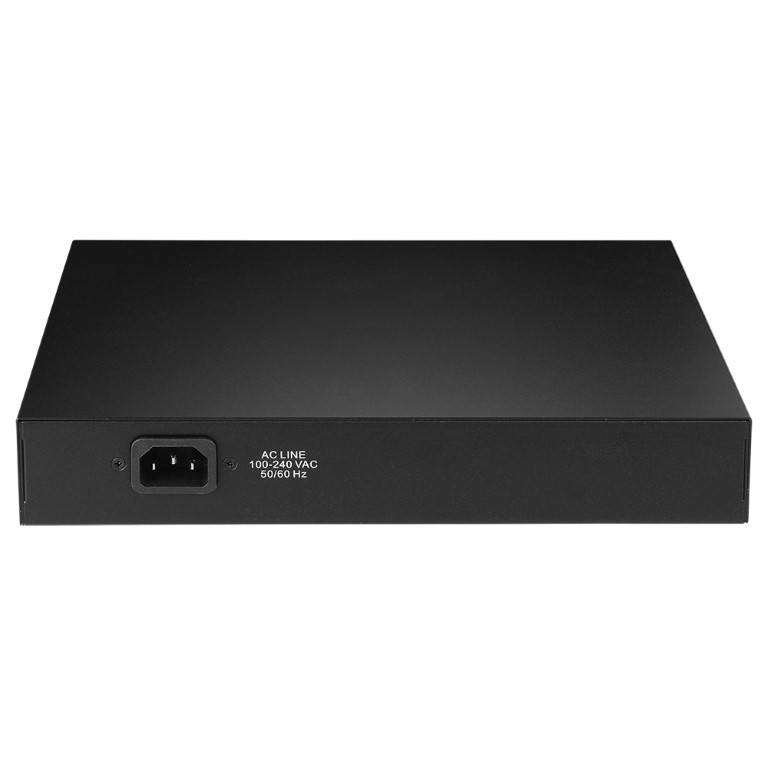

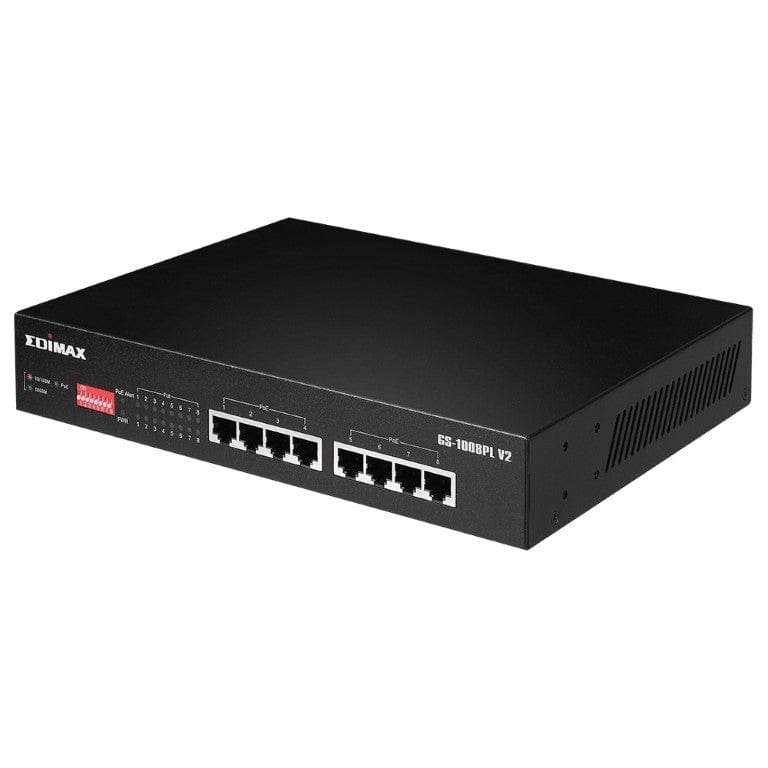

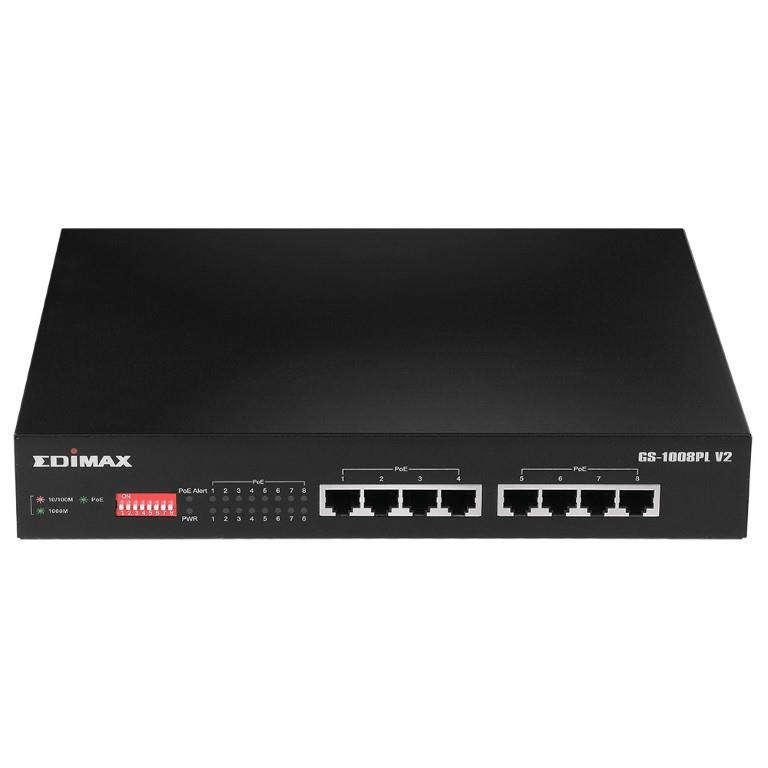

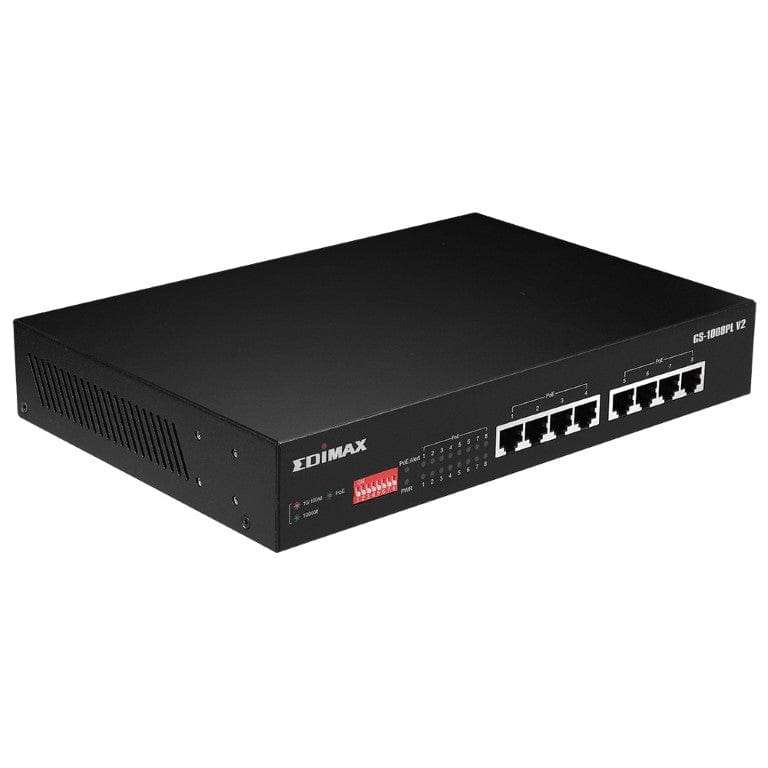

Edimax 8-port Gigabit PoE+ Long Range Ethernet Unmanaged Switch with DIP Switch GS-1008PL V2
PoE Long Range Extension
Break Through 100 Meters PoE Distance Limitation
Supports PoE power output over a distance up to 200 meters overcoming the 100 meters limit on Ethernet UTP cable with the PoE Extend "ON", the GS-1008PL V2 provides an additional solution for 802.3at/af PoE distance extension, thus saving the cost of Ethernet cable installation.
Innovative Port-based VLAN
Port Isolated from Affecting Each Other
The GS-1008PL V2 features port-based VLAN where ports can be easily isolated from each other. This can help to prevent IP camera's multicast or broadcast storms from affecting each other.
Easy Hardware QoS
Video & Voice Traffic Priority
Supports 802.1p QoS via DIP switch port 4. This ensures first priority for video and voice traffic for reduced package loss, lower latency and jitter on the network.
Safe Power Backfeed Protection
Avoid Damaging the PoE Ports
Each port equipped with power backfeed protection to avoid damaging the PoE ports while the non-standard PSE (Power Sourcing Equipments) are connected.
Features
- Gigabit High Speed PoE+: Equipped with 8 Gigabit PoE+ ports, IEEE 802.3af/at PoE compliant, supports up to 30W per PoE port (total power budget: 70W)
- PoE Long Range Extension: Guaranteed PoE transmit distance to 200 meters at speed of 10Mbps
- Port-based VLAN: Port isolated from each other to prevent multicast or broadcast storms
- Hardware QoS: Easy DIP switch setup QoS, supports 802.1p, for video & voice traffic priority
- PoE Auto Detection: Auto detect PoE and non-PoE devices to avoid from being damaged by incorrect power sending
- Power Backfeed Protection: Equipped with power backfeed protection to avoid damaging the PoE ports
- Plug-and-Play, Flexible Network Deployment and Energy Efficient
- Fanless, Compact, Rack-Mount, Durable Metal Casing
Specification
Ports: 8 x RJ-45 10/100/1000Base-T PoE+ ports
Switching Capacity: 16Gbps
DIP Switch: PoE Extend, VLAN, QoS
Mounting: Desktop / Rack-mount
Housing: MetalFanFanless
Standard: IEEE 802.3af; IEEE 802.3at
PoE Power Output: Up to 30W per port
Pin Assignment: 1/2(+), 3/6(-)
PoE Power Budget: 70W
Long Range: DIP switch ON to support PoE with long range to 200 meters at 10Mbps
