EFERGY EMax Smart Home Wifi KIT - Wi-Fi & Screen & App - Electricity Energy Power Wattage Monitor...

* Please note that this product is intended to be used indoors in a domestic environment. It is not suitable for outdoor use

*This unit is only compatible with 120A CT CLIPS*

SETUP NOTES

The EMax monitor needs 2.4Ghz Wi-Fi to be paired for internet access.
Before you begin, you need to get the Transmitter paired with Display first.

Steps to follow for installation:

1. Install the Tx
2. Power on device
3. Set time & date on display
4. Pair Tx with Display
5. Select Display in paring mode
6. Pair Display using WiFi (Pair Display with WiFi is easy  to do by just following the guide on the App. Be sure to close your phone's data service and enable the WLAN on phone)

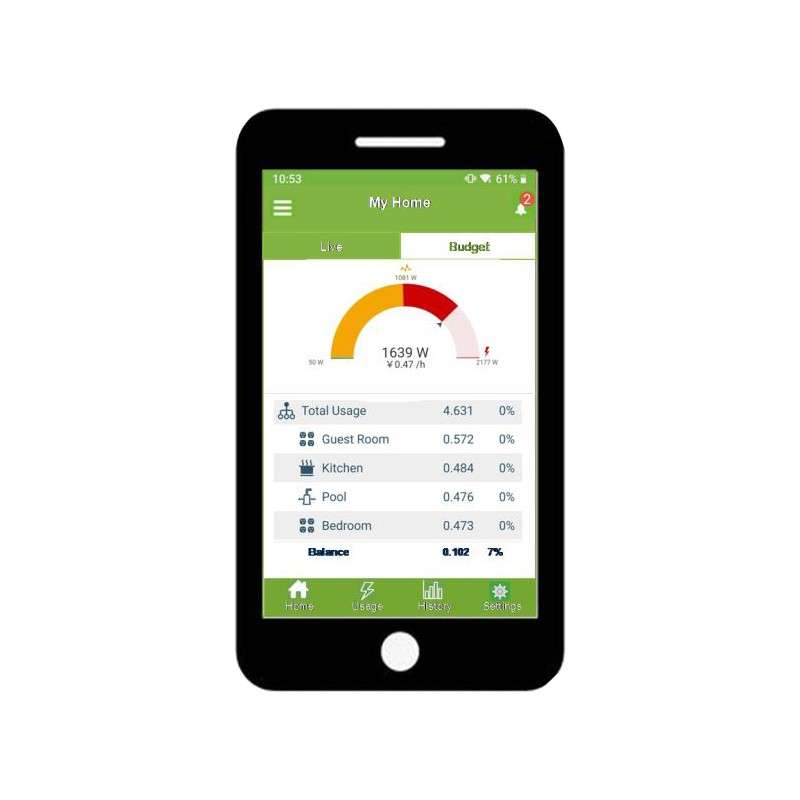

7. Login to the Home page to view device real-time —data
8. Go to "Energy" page
9. Then "Manage device"
10. Configure each circuit and Save
11. Energy price configure (Either Time On Use or fixed price)
12. Save energy price

Features

- Easy Installation

- Live Energy Awareness: Real-time data refresh each second

- Energy Insights: Up to 24 Months Data Recording

- Cost Tracking: Support up to 4 tariffs.(Cost prediction, Bill Cycle Comparing)

- Appliance Monitoring: True power monitoring and Extendable multi-circuits monitoring

- Alerts: Peak usage of the day or month (Over budget of the the month)

- Third Party Integration; IFTTT and Voice Control

- App available in App Store and Google Play. (Search Terms: efergy SHEM, Link&Link, LinkLink )

- Can take up to 7 transmitters

Specifications

- Monitor Size: 167 x 25 x 127 mm

- LCD Size: 178 x 78 mm

- Weight: 253 g

- Interface: 1 x Mechanical Button / 5 x Touch Button

- Installation Type: Table Stand / Wall Mounting

- Power Supply: DC 5V

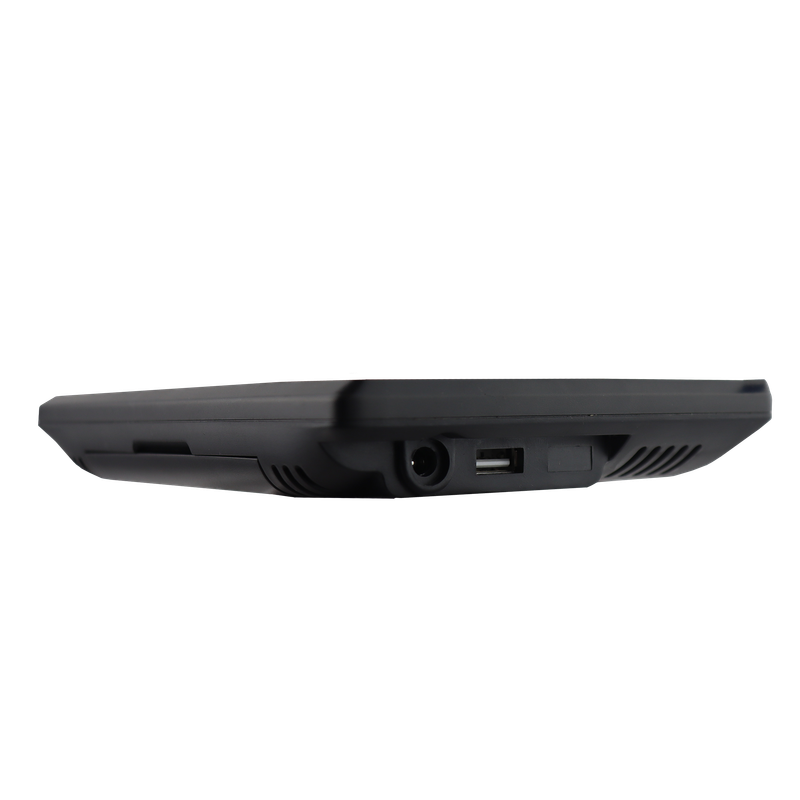

- USB Port: USB 2.0 Standard Type-A

- LCD Type: 4 Colour PMMVA Segment

- Upstream Wireless: 2.4GHZ - 820.11b/a/n

- Downstream Wireless: ISM 433 5MHZ

- Data Rate: Per Second

- Wireless Open range; 70 Meters (ISM 433MHZ)

- Data Storage: 12 Months

- Working Environment: IP40, Indoor Use Only

- Operation Temperature: 0°C to 40°C

- Storage: 0°C to 50°C : RH > 90%

Package Contents

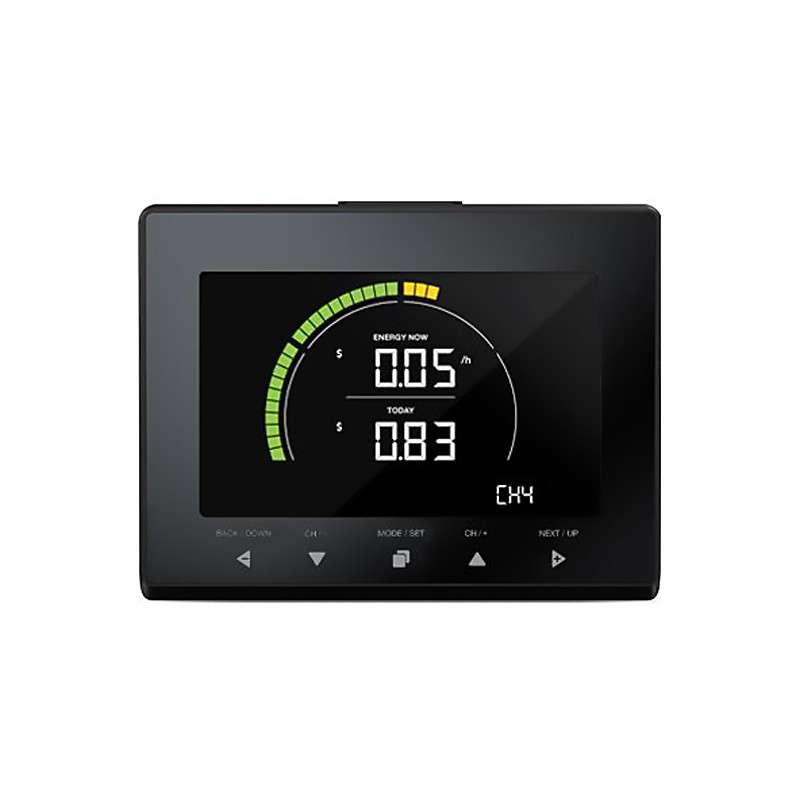

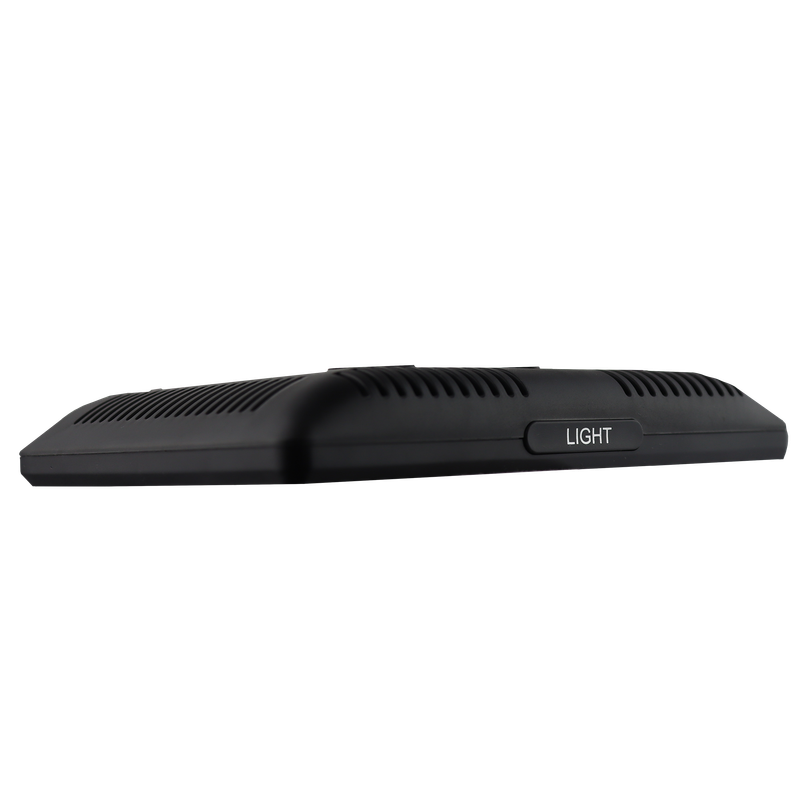

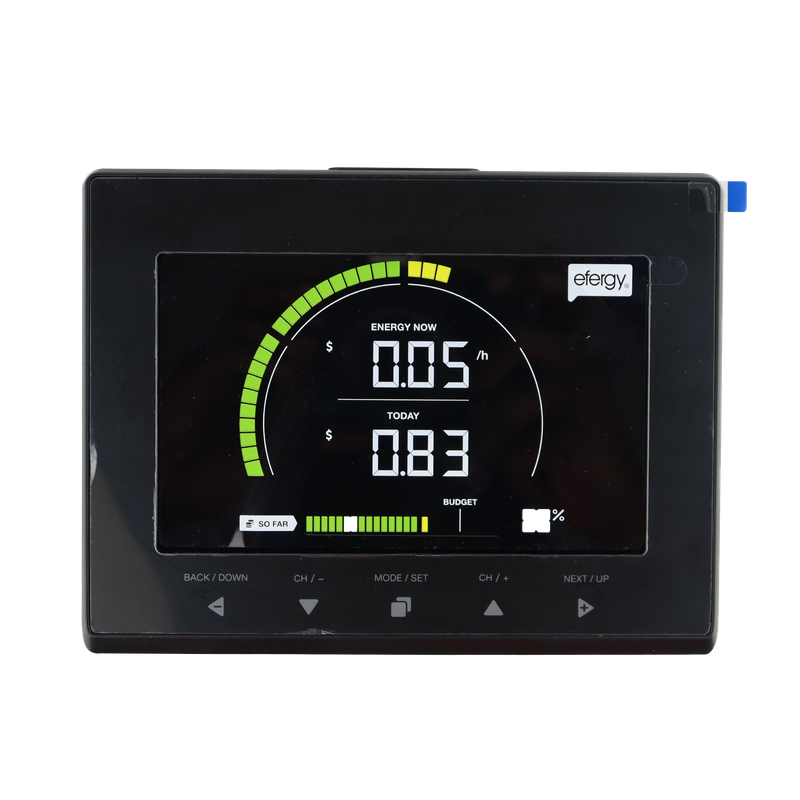

1 x Monitor

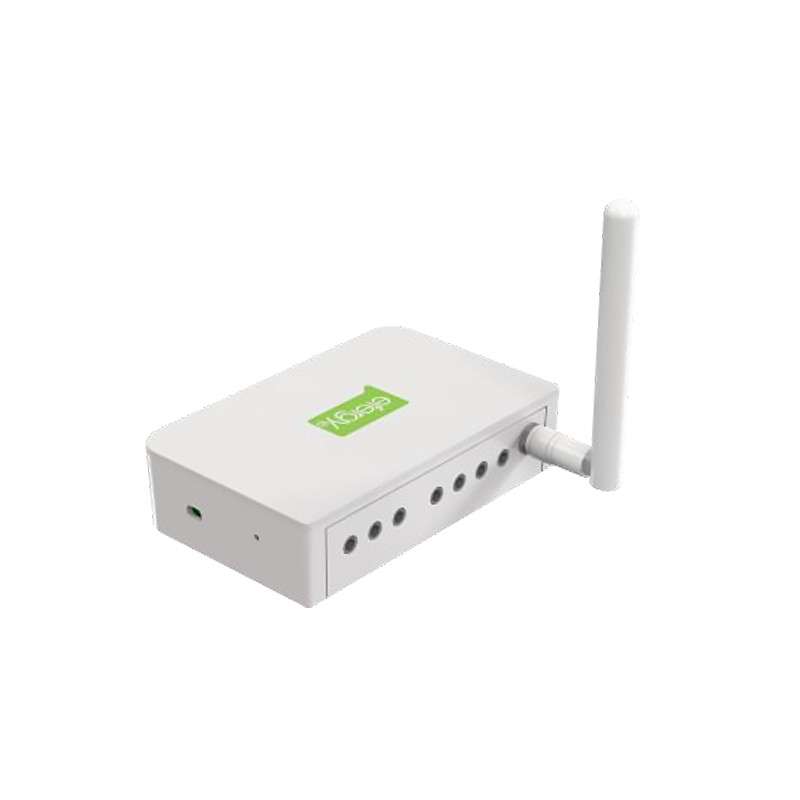

1 x Transmitter

1 x SMA Antenna

1 x Cable Set & Nuts

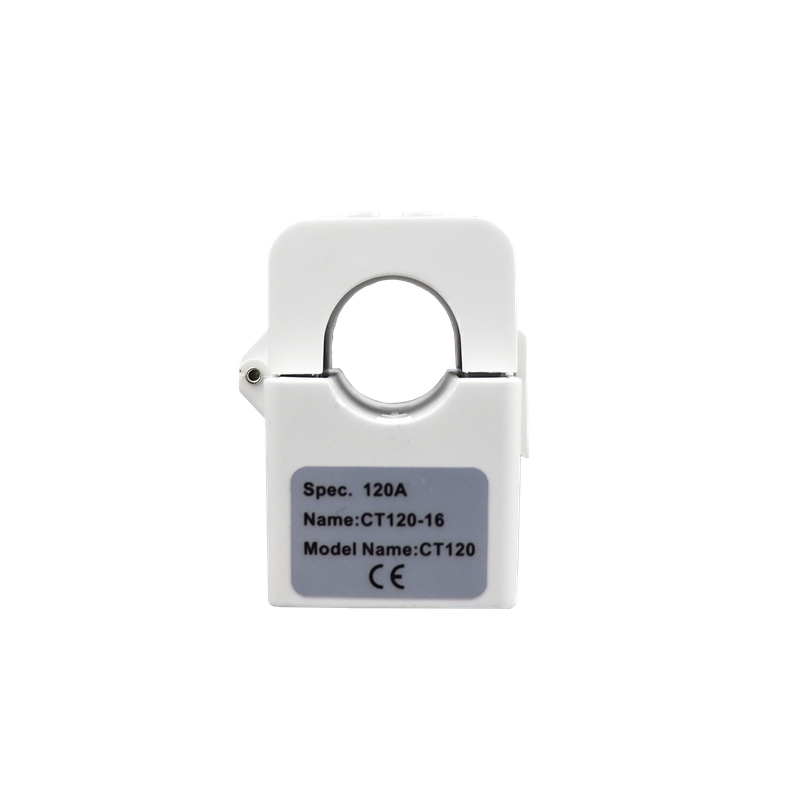

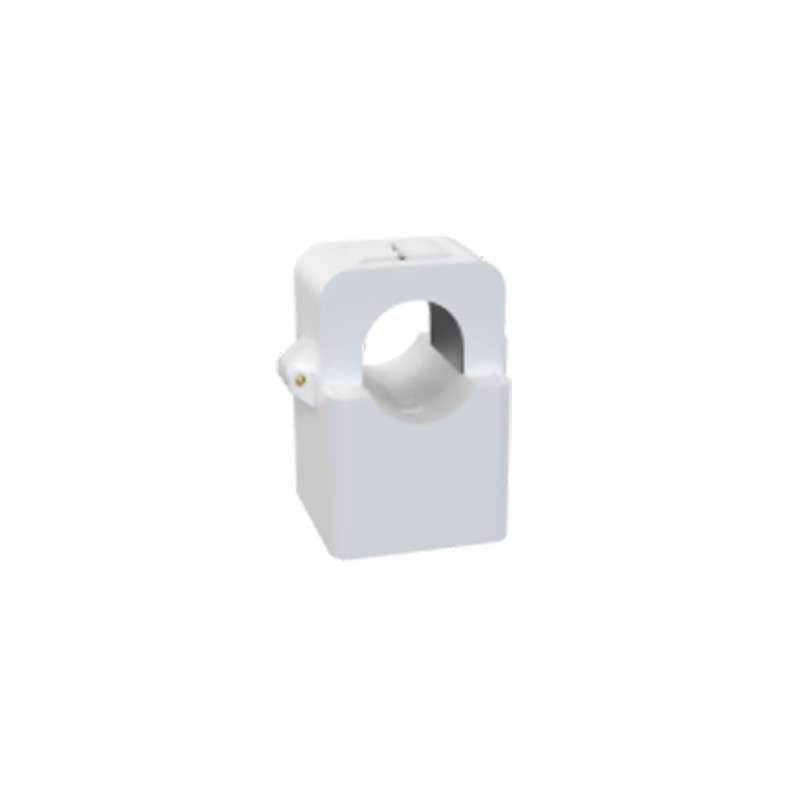

1 x 120A CT Sensor

1 x Instructional Manual
