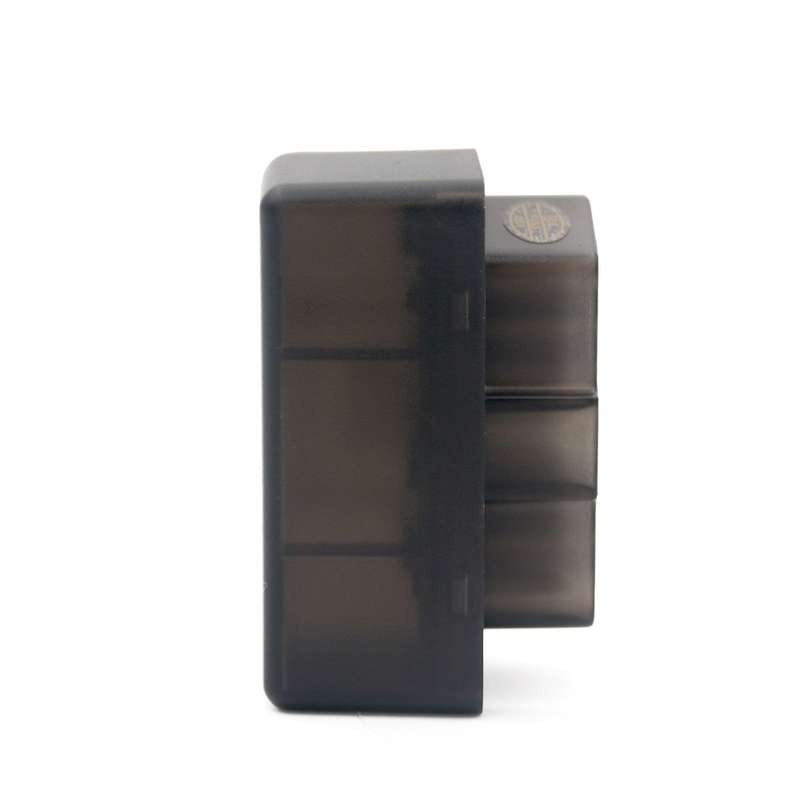

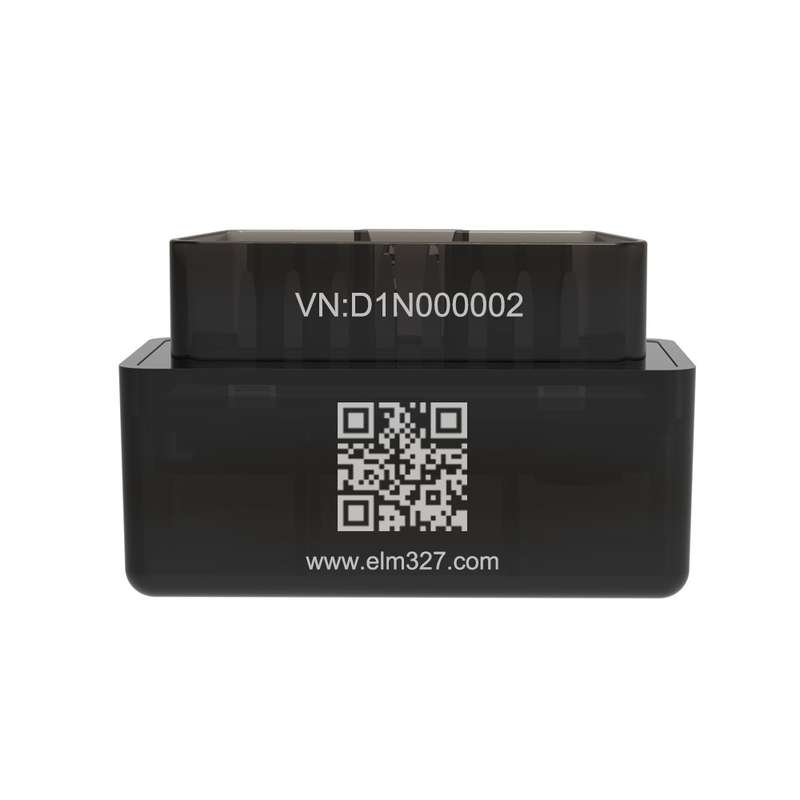

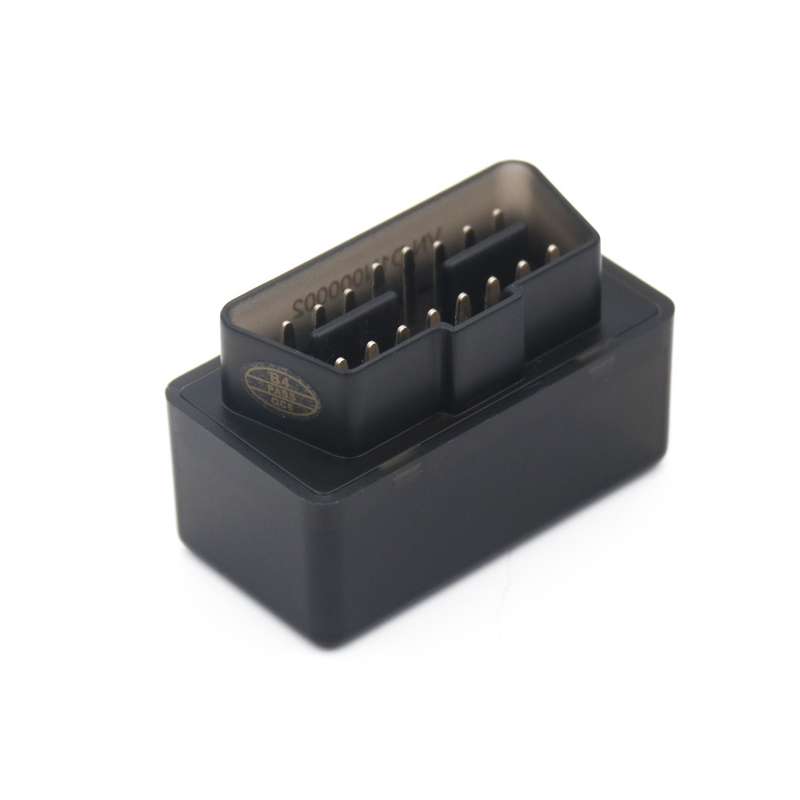

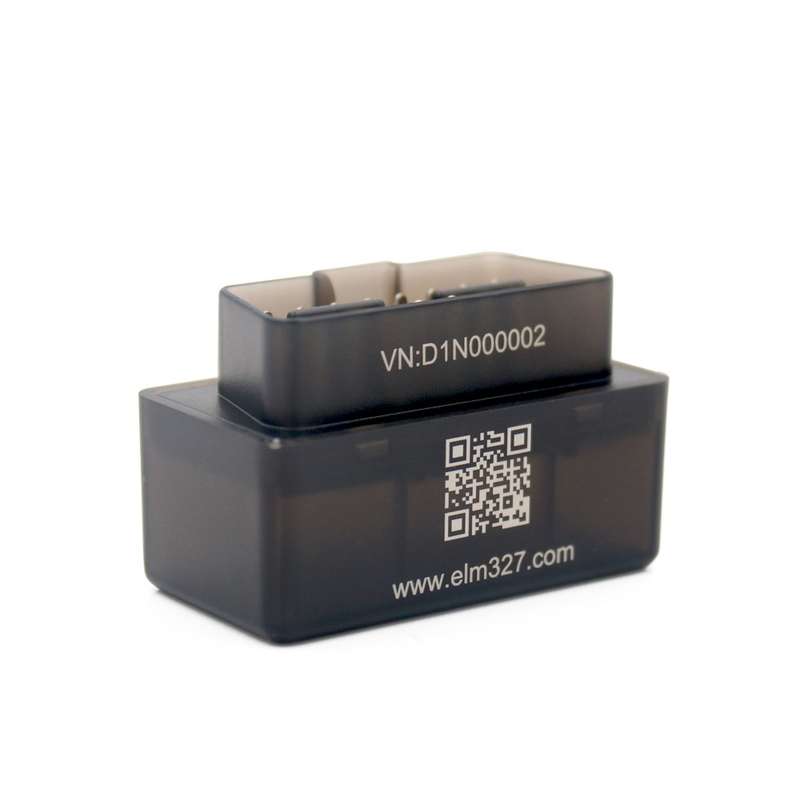

ELM327 Bluetooth 4.0 Automotive Engine Fault Detection For Android And IOS

TBD06047692

1. Material: ABS
2. Chip: CAN
3. Software platform: Android, Windows, iOS
4. Working voltage: 9V~16V
5. Working current: 16mA
6. Product size: 43x25x30mm
7. Product weight: 19.5 (packed in electrostatic bag)
8. Reads generic and manufacturer-specific diagnostic error codes and displays their meaning (the database has over 3000 common code definitions)
9. Clear error codes and turn off MIL ("check engine" light)
10. Display current sensor data, including: engine revolutions per minute (RPM), calculated load value, coolant temperature, fuel system status, speed, short-term fuel condition, long-term fuel condition, intake manifold pressure, fuel injection advance time , intake air temperature, air speed, absolute position throttle, fuel system status, fuel pressure, fuel consumption monitoring and other data

supporting agreement:
1. SAE J1850 PWM (41.6 kaud)
2. SAE J1850 VPW (10.4 kaud)
3. ISO9141-2 (5 baud init, 10.4kaud)
4. ISO14230-4kwp (5 baud initialization, 10.4
kaud)
5. ISO14230-4kwp (quick start, 10.4 kaud)
6. ISO15765-4 CAN (11bit ID, 500 kaud)
7. ISO15765-4 CAN (29bit ID, 500 kaud)
8. ISO15765-4 CAN (11bit ID, 250 kaud)
9. ISO15765-4 CAN (29bit ID, 250 kaud)
