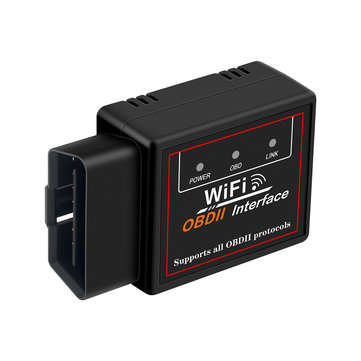

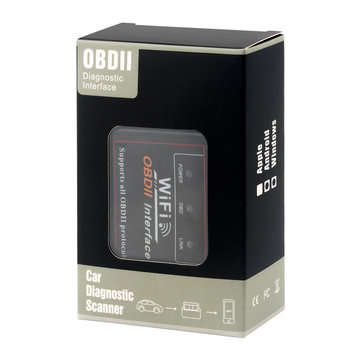

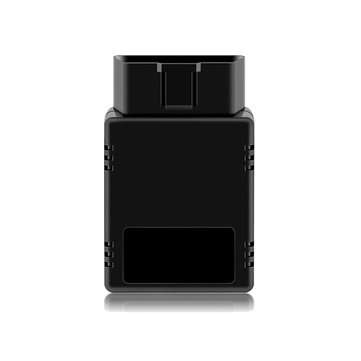

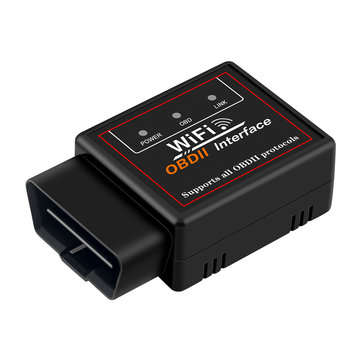

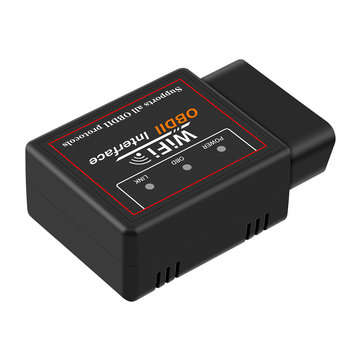

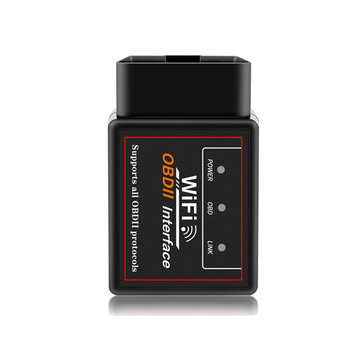

ELM327 V1.5 bluetooth WIFI OBD2 Scanner Auto OBDII Diagnostic Tool Code Reader PIC18F25K80 Chip for
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 12 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Returns
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Bob Shop ID
615166825
Technical Specifications:
| Type: | ELM327 V1.5 |
| Chip: | PIC18F25K80 |
| Socket:? | 16 pin |
| SSID:? | WiFi OBD2 |
| IP: | 192.168.0.10 |
| Subnet:? | 255.255.255.0 |
| Port: | 35000 |
| Range: | 50 ft (Line of sight) |
| Antenna: | Internal |
| Power Consumption: | 0.75 Watts (With Power Switch) |
| Wifi Standard:? | 802.11a/b/g |
| Voltage:? | DC 12V |
| Operating Temperature: | -15 to 100 Deg Celsius |
| Plastic: | Automotive Grade |
| Physical Dimensions:? | 2.75 x 1.25 x 1.2 inches |
Support APP:
| ?System | ?Method | ?Support Software |
| ?Android | ?WIFI/BT | ?Torque, OBD CAR Doctor |
| ?IOS | ?WIFI | ?Dash Command,?OBD CAR Doctor, EOBD Facile |
| ?For PC | ?WIFI/BT | ?ScanMaster-ELM |
Support OBDII protocols:
SAE J1850 PWM(41.6K baud)
SAE J1850 VPW(10.4K baud)
ISO9141 - 2(5?baud,?10.4K baud)
ISO14230 - 4 KWP(5?baud,?10.4?baud)
ISO14230 - 4 KWP(10.4?baud)
ISO15765 - 4(11bit, 500K?baud)
ISO15765 - 4(29bit, 500?baud)
ISO15765 - 4(11bit, 250?baud)
ISO15765 - 4(250?baud,?29bit)
Features:
1.Wireless scanning for tool, support all OBD2 protocols 2.Compatible with most OBD II compliant vehicles 3.3000 code definition database 4.Read diagnostic trouble codes 5.16-pin socket adaptor for wifi interface 6.Built-in indicator lights
Functions:
1.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2.Clear trouble codes and turn off the MIL (Check Engine light)
3.Display current sensor data
4.Engine RPM
5.Calculated Load Value
6.Coolant Temperature
7.Fuel System Status
8.Vehicle Speed
9.Short Term Fuel Trim
10.Long Term Fuel Trim
11.Intake Manifold Pressure
12.Timing Advance
13. Intake Air Temperature
14.Air Flow Rate
15.Absolute Throttle Position
16.Oxygen sensor voltages/associated short term fuel trims
17. Fuel System status
18.Fuel Pressure
Package list:
1 x WIFI ELM327
