Emax Simonk Series 12A 20A 25A 30A 40A ESC For Quadcopter QAV250 (CURRENT: 12A)
Closed

Emax Simonk Series 12A 20A 25A 30A 40A ESC For Quadcopter QAV250 (CURRENT: 12A)

12 were available / new
R458.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
612432900

SELECTED OPTION:
CURRENT: 12A

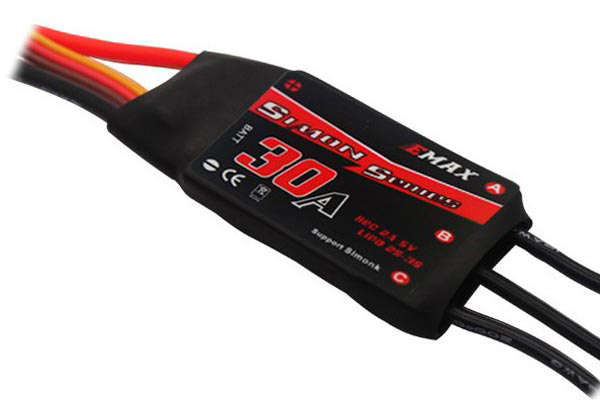

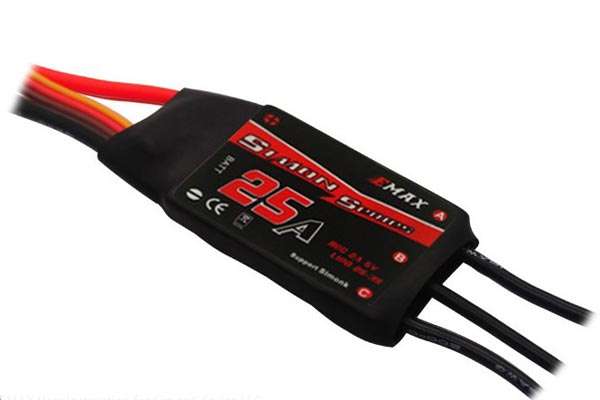

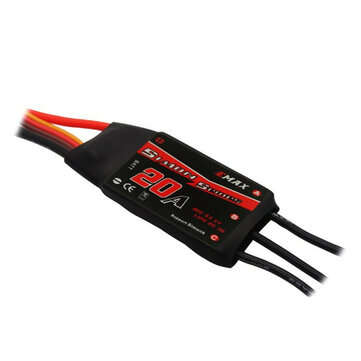

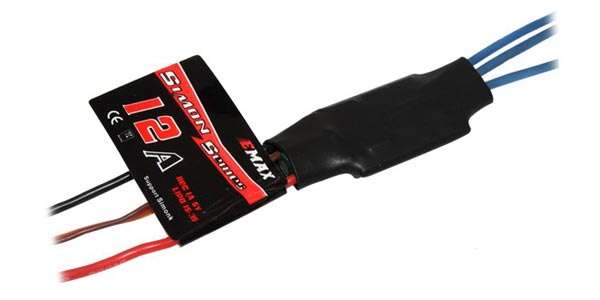

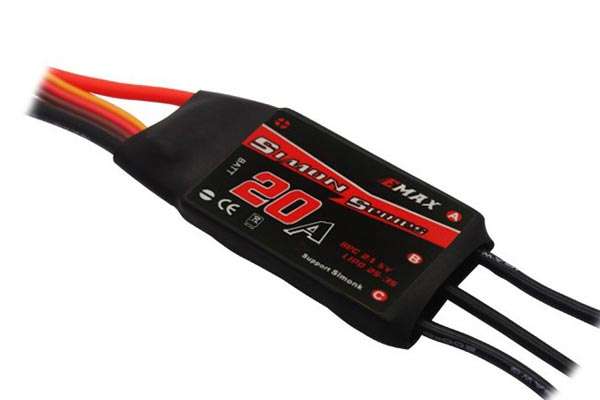

Emax Simonk Series 12A 20A 25A 30A 40A ESC For Quadcopter QAV250

Description:

Brand Name: Emax
Item Name: Simonk Series ESC
Current: 12A 20A 25A 30A 40A available
Input:? 2-3S LiPo

Item continuous?current burst?current?(10A) battery(cell) Dimension Wight(g) BEC?mode BEC?output programmable
12A 12A 15A? 2~3 22*17*7 8 linear 1A/5V YES
20A 20A 25A? 2~3 55*28*7 28 linear 2A/5V YES
25A 25A 30A 2~3 55*28*7 28 linear 2A/5V YES
30A 30A 40A 2~3 55*28*7 28 linear 2A/5V YES
40A-UBEC 40A 50A 2~6 73*28*12 41 switch 3A/5V YES


Features:
Based on Simon K firmware, further optimized to perfect drive performance.
Low-voltage protection, over-heat protection and self-check functions.
Separate power supply for MCU and BEC, enhancing the ESCa??s ability of eliminating magnetic interference.
Parameters of the ESC can be set via program card or transmitter.
Throttle range can be set to be compatible with different receivers.
Equipped with built-in BEC.
Max speed: 210,000 rpm for 2-pole, 70,000 rpm for 6-pole, 35,000 rpm for 12-pole.

Note: this ESC can not work with pixhawk flight controller.

Emax ESC Manual,Please

Package Included:
1 x Emax ESC
, , , ,
