* Professional installation recommended
Emporia has developed the next generation of the Vue Energy Monitor. Committed to bringing the best value at the lowest price possible, the Vue provides everything you need to monitor your entire home's energy usage in real time with 200A load sensors, as well as optional 50A sensors to allow you to monitor individual circuits (choice between 8 and 16). Not only can you see how much energy your home is using at any moment and over time, but you can also monitor how your individual appliances affect your energy bills.
Features
- Power the Vue directly from a 15A or 20A breaker
- Granular 1-second data interval
- Operates regardless of your utility

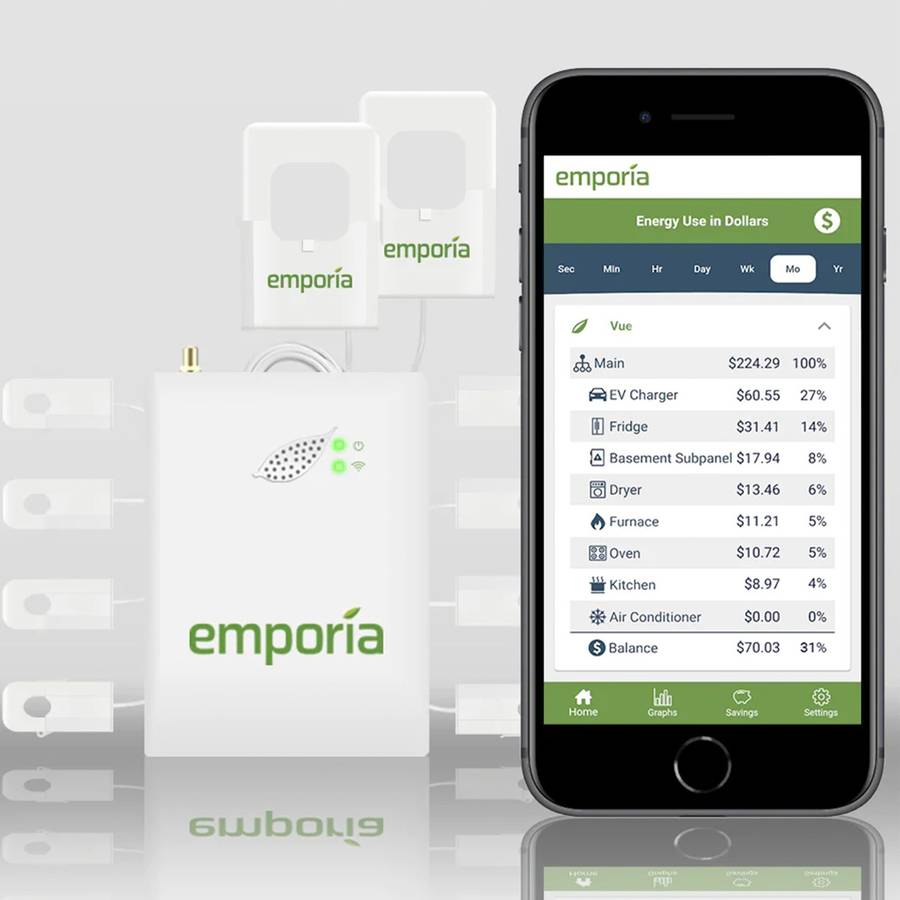

- Interact with your Emporia Vue through your mobile device or laptop
- Real-time monitoring of your energy usage and production with helpful units and measurements
- Actionable notifications will help you:
- Conserve energy
- Lower carbon emissions
- Increase grid reliability
- Generate energy savings
- Shift usage patterns from peak to off-peak
- Get clear calculations that show your savings when you perform actions recommended by the Emporia Vue
- INSTALLATION

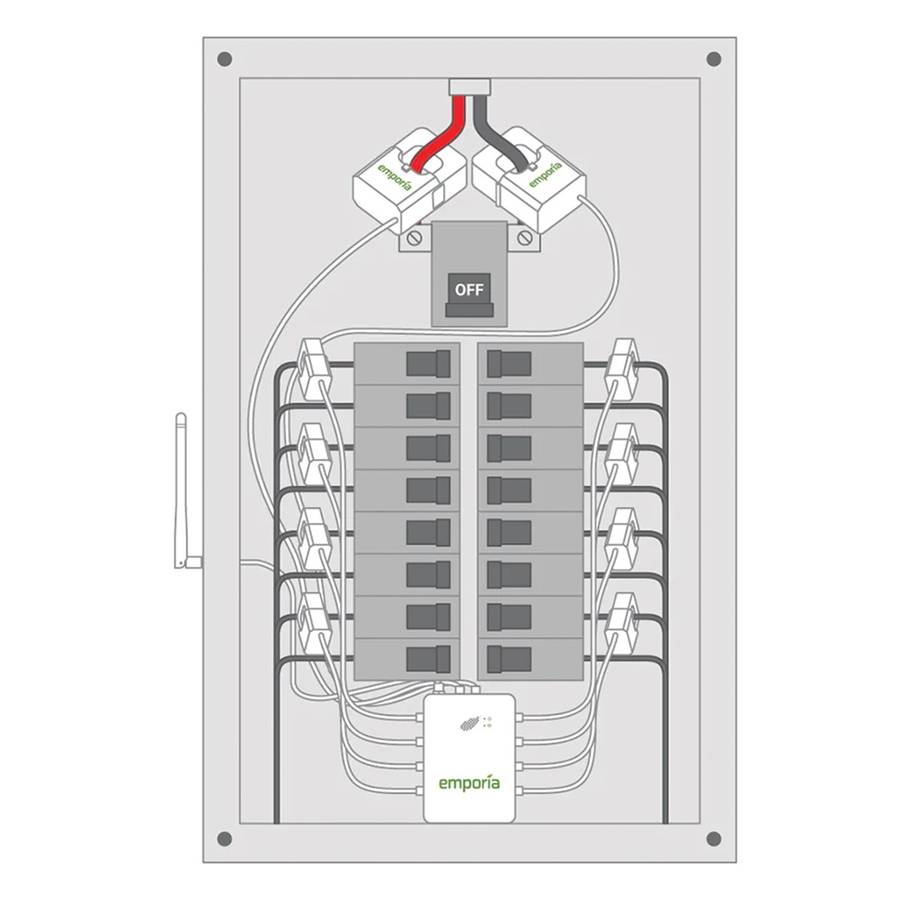

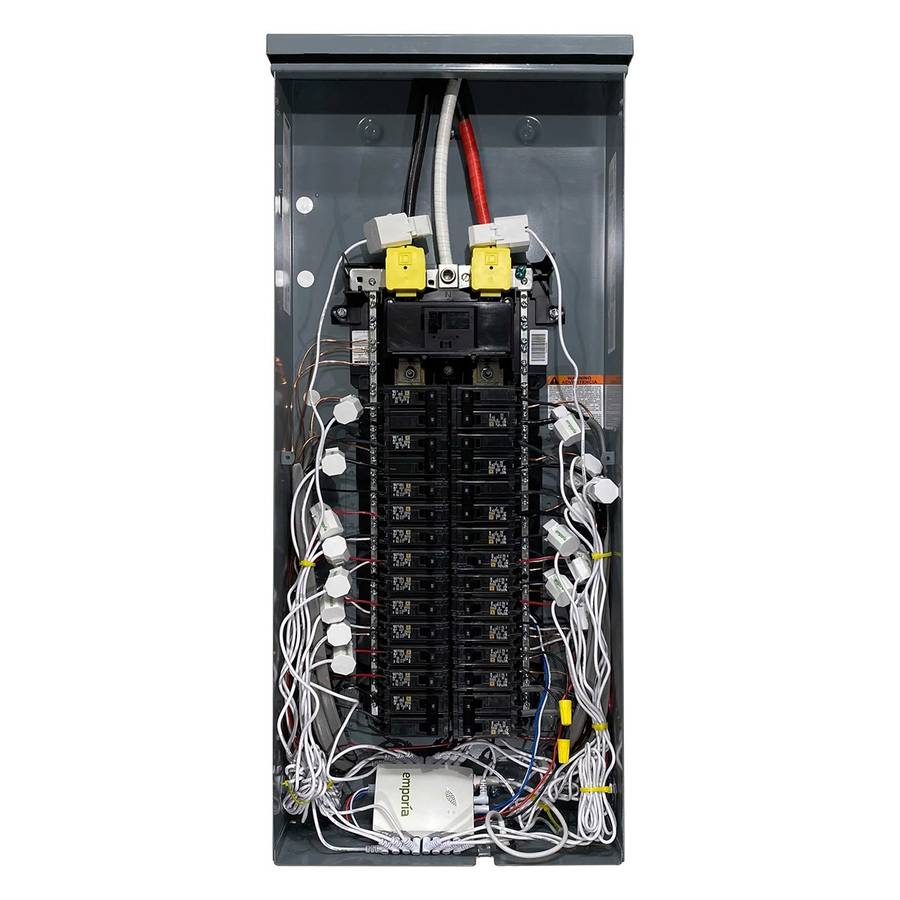

- Installs in circuit panels of most homes with clamp-on sensors.
- Supports single-phase up to 240VAC line-neutral; single, split-phase 120/240VAC; and three-phase up to 415Y/240VAC (no Delta).
- Panels with access only to busbars will need flexible sensors available from Emporia Energy. Includes DIY instructions, though a professional electrician is recommended.
- 24/7 ENERGY MONITORING
- Monitor your home's real power anywhere, anytime to prevent costly repairs, conserve energy, and save costs.
- Monitor solar / net metering. PROTECTED BY A 1-YEAR WARRANTY.
- LOWER YOUR ELECTRIC BILL
- Gauge real-time spending and get actionable notifications to understand where you can save costs.
- REAL-TIME ENERGY DATA
- REQUIRES 2.4 GHz WIFI WITH AN INTERNET CONNECTION to monitor energy use with iPhone / Android / Web app.
- Vue sensors provide 1-second data with an accuracy of ±2%. UL and CE Listings ensure the Vue's safety. Data is retained for 3 hours at 1-second intervals, 7 days at 1-minute intervals, and indefinitely at 1-hour intervals.
- You can export the data anytime through the app.
Specifications
- Gen 2 Vue Energy Monitor
- Supported Systems: 1) single-phase up to 240VAC line-neutral; 2) single, split-phase 120/240VAC; and 3) three-phase up to 415Y/240VAC (no Delta)
- WiFi: 2.4 GHz 802.11b/g/n
- Input Power Rating: 100-240VAC 50-60Hz
- Power Consumption: < 3W
- Certification: Energy monitor: EMCTV2 ( E506714) as per UL/IEC/EN 62368-1
- FCC ID: 2AS6P-EMPCTV2
- Dimensions: 4.1 x 3.1 x 1.1 (105mm x 80mm x 30mm)
- Operating Conditions: -40 to +122° F (-40 to +50° C) | 0 to 80% RH
- 200A sensor ports: 3 @ 3.5mm two-pole audio connector
- 50A sensor ports: 16 @ 2.5mm two-pole audio connector
- WiFi antenna port: 1 @ RP-SMA coaxial connector
- Wire harness (power) port: 1 @ 4-pin Molex connector
- Gen 2 200A Current Sensor
- Frequency: 50-60Hz
- Max Current: 200A
- Output: 0.0 — 0.333V (Measuring 0-200A)
- Accuracy: ±2%
- Dimensions: 2.6 x 1.7 x 1.6 (65mm x 44mm x 41mm)
- Window Diameter: 1 (26mm)
- Cable Length: 39 (1m)
- Connector: 3.5mm right-angled two-pole audio connector

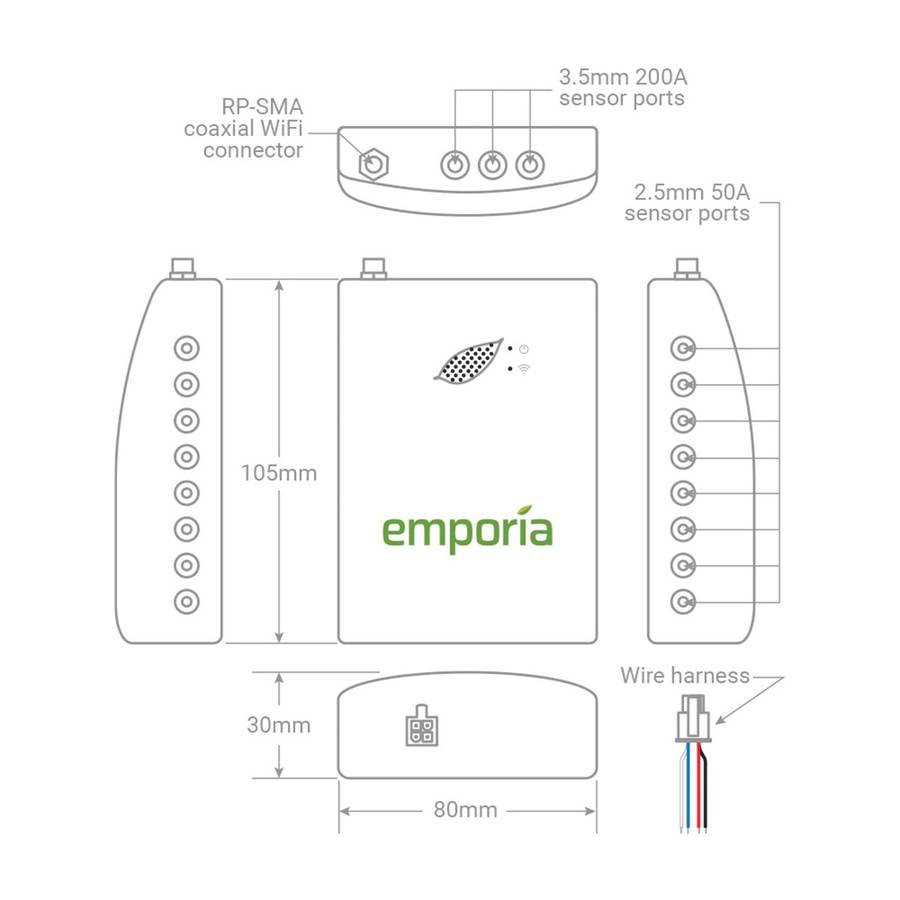

Dimensions
Vue energy monitor dimensions
- 4.1" x 3.1" x 1.1" (105mm x 80mm x 30mm)
200A sensor dimensions
- 2.6" x 1.7" x 1.6" (65mm x 44mm x 41mm)
- Window diameter: 1" (26mm)
- Cable length: 39" (1m)
- Connector plug: 3.5mm
What's in the Box
- Gen 2 Vue Energy Monitor
- 2x 200A current sensors for service mains
- Wire harness
- Extra wire & wire nuts
- Wifi antenna & cable
