Electrical Characteristics
- Nominal Voltage: 12.8V; 3.2V/cell
- Nominal Capacity: 105AH
- Internal Resistance: 15m
- Delivery Voltage: 12.8V13.6V Multi-meter
- Operation Temperature: Charge 0~50°C, 45~85%RH; Discharge -20~60°C, 45~85%RH
- Max. Continuous Charge Current: <100A Recommend: 20A~50A
- Max. Continuous Discharge Current <120A (in 30 minutes) Peak: 120A~150A<30s
- Max. Reverse Charge Voltage: Not Allowed
- External Short Circuit Not Allowed
- Max. Charge Voltage: 14.6V± 0.2V
- Discharge Cut-off Voltage: 11.2V
- Life Cycle: >2,000 times @ 90% DOD
- Series Connection: Max 4pcs (48V) IMPORTANT: Each battery must be fully charged and voltage difference is <0.02V before this operation
- Parallel Connection: Max 4pcs (400 AH) IMPORTANT: Each battery must be fully charged and voltage difference is <0.02V before this operation

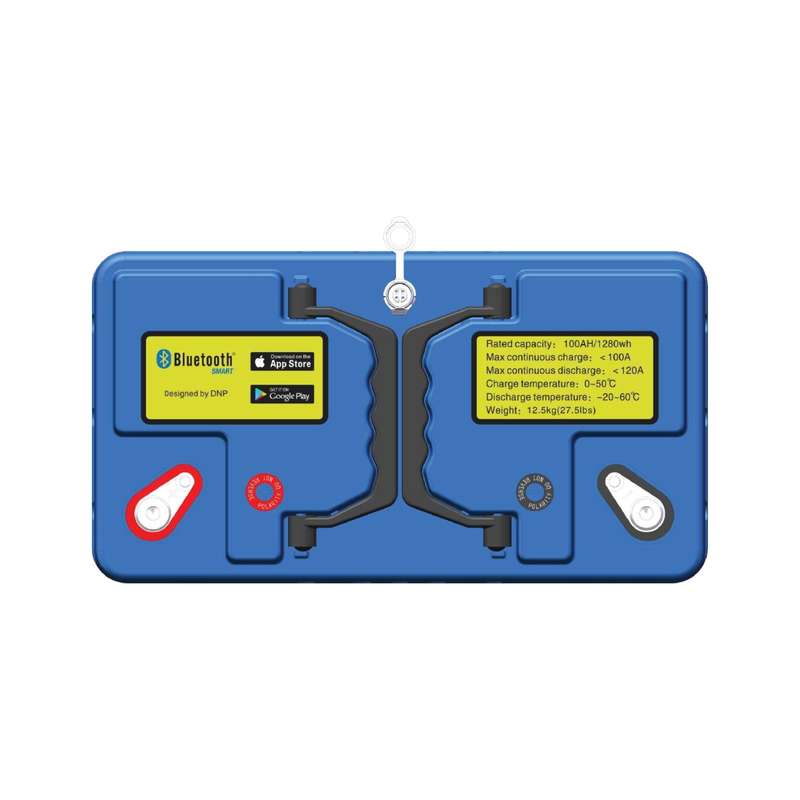

- Bluetooth Communication: Android & iOS (BLE 4.0)
Specification
- Dimensions: 28mm X 177mm X 217.5mm
- Net weight: 11.9kg
- Battery case material: PC + ABS UL94V-0
- Marine dual terminals — 8mm stud: M8 size, Torque < 10N.m
- Communication — LP12 socket: CAN Bus, CI-Bus, RS485 (optional)
- Insulation: IP55 (splash and dust proof)
