Specifications:

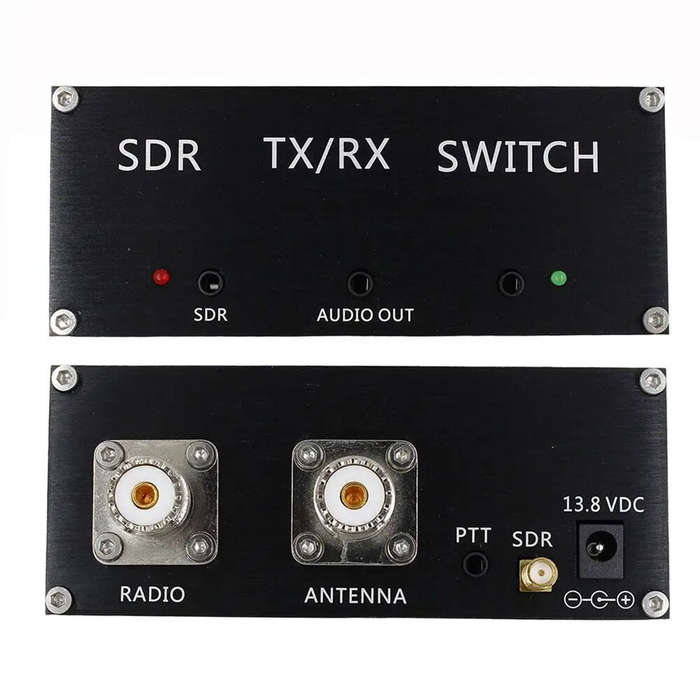

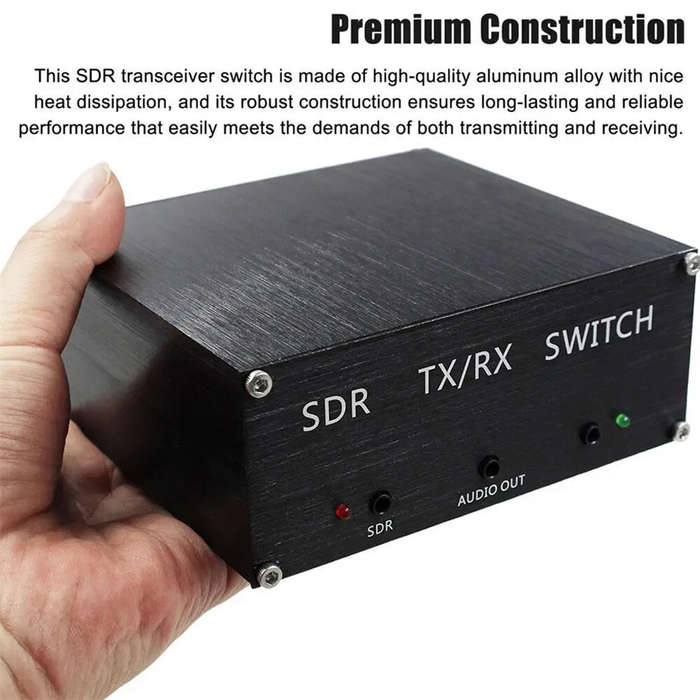

Product Name: Transceiver Switch SDR
Material: Aluminum Alloy
Frequency Range: D-160MHz
Impedance: 50
Maximum TX Power: 100W
Turn-on Time: 20ms
Release Time: 190ms
Insertion Loss: 0.3dB @ 144MHz (0.2dB typical)
RX Isolation: 38dB @ 144MHz (40dB typical)
RF Detection Threshold:
Discharge Protection: Gas discharge
Power Supply: 12V 2A
Net Weight: 430g
Size: 125X112X51mm (excluding board part)
