PRODUCT DESCRIPTION
EACHEN smart garage door system is compatible with most garage doors that have an opener motor. The installation is a 20-minute thing, after that, you can use your smartphone to open and close your garage door from anywhere.
This product is a WiFi smart switch that supports controlling of your garage door opener and monitors the door status at any time. You can add the device to the "Ewelink" APP in order to remotely control your garage door.
The device enables remote control of your garage door opener through the mobile application "Ewelink", available on both Android and iOS.
There are 3 ways that the switch works with your garage door opener:
• Connect the device to the motor.
• Connect the device to the remote controller:
• Connect the device to the wall console.
Try this to test if GD-DC5 will work with your garage door opener:
Take a wire with both ends stripped or a straightened-out paper clip and put each end to the same terminals as the wall button wires are terminated. By doing so, if your door activates, then your garage door opener is compatible with EACHEN GD-DC5 by default. If the door does not activate, then the opener is not compatible by default, then you can try to connect the device to the remote controller or the wall console.
Supported functions include:
- Remote turn on/off
- Timing Schedules
- Device Sharing
- History Record
- Compatible with Amazon Echo, Echo Dot, Amazon Tap
- Works with Google Home, Google Nest
- Works with IFTTT
This product is compatible with Amazon Alexa. You can ask Alexa to control the device with the following voice commands.
Try out these phrases ( {deviceName} should be the name of your device):
"Alexa, turn on {deviceName}"
"Alexa, turn off {deviceName}"
Also, you can ask Google Home to control the device with the following voice commands.
"hey, google, turn on {deviceName}"
"OK, google, turn off {deviceName}"
Works with IFTTT:
Search "Ewelink" in the IFTTT APP. You can create applets like below:
If my location is 200 meters far away from home, Then turn off the garage door.
If the device is turned on/off, then send me an email.
Sharing the device to other users:
You can share it with your family and friends or visitors, OF COURSE, you can take back the permissions at any time.

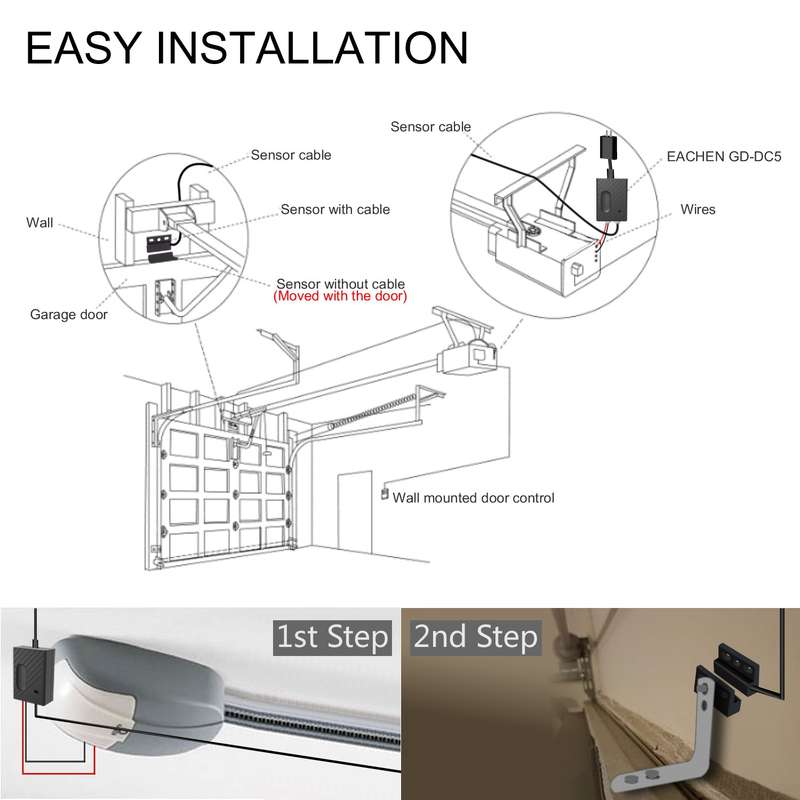

Easy Installation:
- Power up the device with a DC 5V adapter and micro USB cable.
- Connect the Red & Black wires to your garage door opener: Put each end to the same terminals as the wall button wires are terminated.

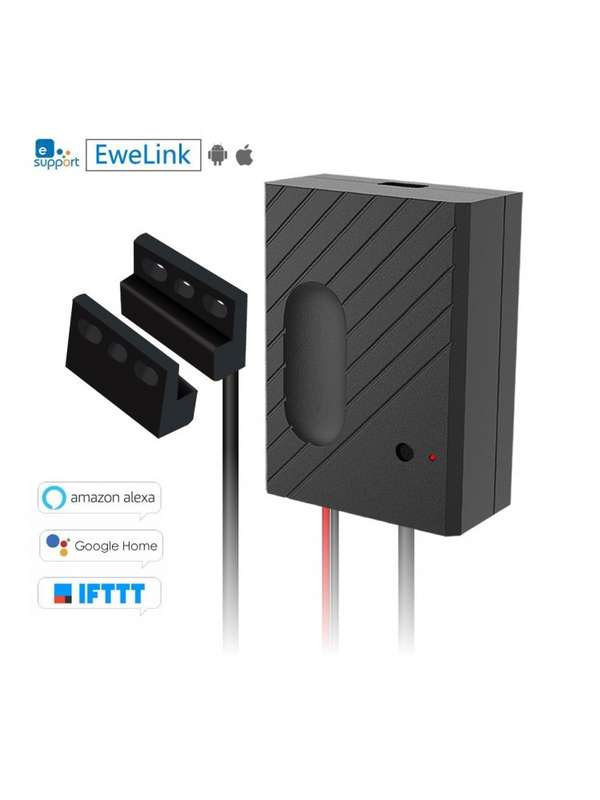

- Connect the sensor and install steady on the garage door with screws/3M gums/bracket and so on.
- Control the device on your smartphone.
