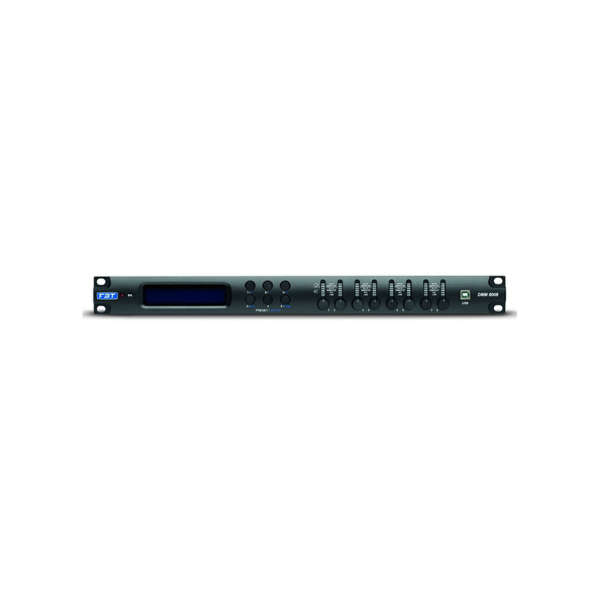

FBT – AC DMM8008 DIGITAL MATRIX MIXER

The DMM 8008 is a high performance 8 input x 8 output digital matrix mixer Specially designed for commercial and professional application such as Conference rooms, Auditoriums, Sport utility buildings, House of worship, Pubs and Disco. It includes 8 independently switchable Line/ Mic inputs with Phantom power supply, 8 Line outputs, managed by a powerful 48kHz 24 Bit DSP engine, in addition to high performance 24 Bit AD/DA converters.

The DMM 8008 supports a full matrix mixing mode where inputs may be routed/mixed in any ratio to any output. Each Mic/Line input channel provides Lo/Hi pass 1st order filters, 3-band parametric EQ, Noise Gate function and Gain control. In addition Mic inputs include a Feedback Eliminator function, based on a powerful Pitch Shifting algorithm, particularly suitable for voice applications. Auto mixing function automatically adjusts input level to make operating easier using either NOM (Number of Open Mics) attenuation function or Gain sharing algorithm. In addition Ducking process enforces a priority order of open microphones in order that high-priority inputs attenuate lower-priority inputs. Each output offers up to 5-band of parametric equalization, crossover filters, RMS compressor, Peak limiter, Phase and Delay controls, 8 digital In/Out ports are provided for general purpose (preset recall, trigger third parts or device), 8 front knobs provides a quickly way to control input Gain and Up to 32 units can be managed by software applications.

SPECIFICATIONS:

• AC Power requirements: 90-240Vac (50/60Hz) - 40W
• Net Dimension (WxHxD): 483 x 44 x 229mm (1U)

FEATURES:

• Excellent audio performance with 24 bit converters coupled with 48kHz sample rate
• 8 Mic/Line inputs, 8 outputs with full matrix mixing, 3 band parametric equalization and Low/High pass filters per input channel
• 5 band parametric equalization per output channel each band can be switched to peaking, Low/High shelving with variable Q response
• Crossover filters with slopes from 6dB/Octave up to 24dB/Octave including Butterworth, Bessel, Linkwitz-Riley
• Gain control, Noise Gate, Feedback eliminator (Mic input only) per input channel
• Each output features a precision dynamic range controller composed of a Peak Limiter and a RMS Compressor with selectable ratio and variable knee
• Auto mixing functions include: Configurable NOM attenuation, Gain sharing algorithm, Priority Ducking
• Adjustable Delay time up to 380mS per output channel
• Front panel interactive LCD display for local access and configuration
• Front panel 6-led status indicators per In/Out channel
• 8 front knobs available for Mic input Gain control
• 4 input contacts for additional 4 preset selections with priority configuration
• 4 digital output ports for triggering external devices
• Simultaneous control up to 32 units via PC software - iPad®
• Security lockout
• TCP/IP, RS 485 and USB connection for remote controls
