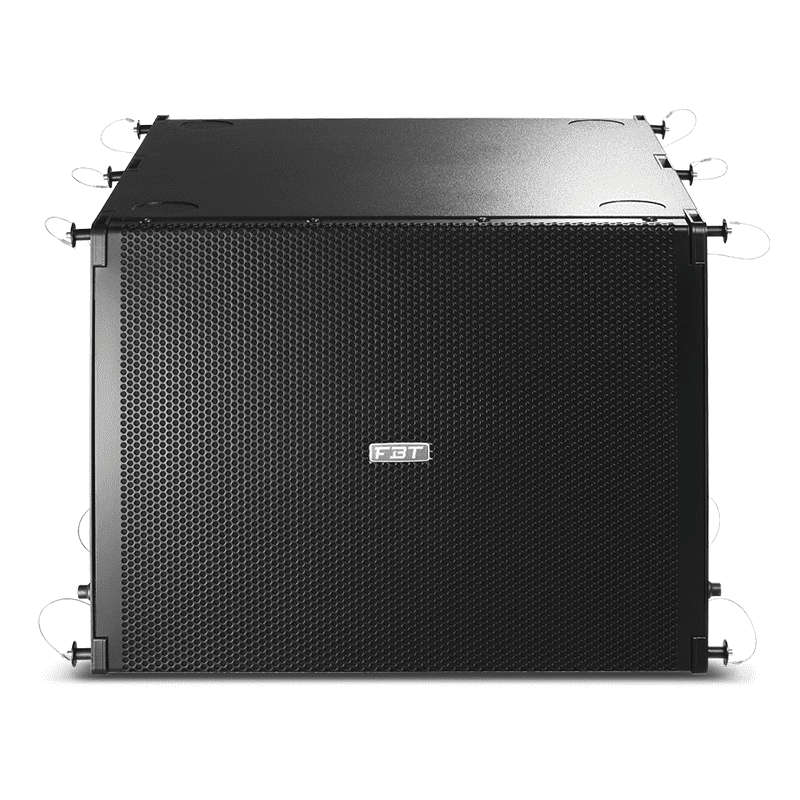

The FBT MUSE 118FSA powered subwoofer meet the following performance criteria: frequency response of 33Hz to 100Hz,
Spl cont/peak of 135/139dB half-space. The FBT MUSE 118FSA/FSCAis a hybrid band-pass cardioid arrayable subwoofer design
incorporating 1x18" B&C neodymium magnet high excursion woofer with 3.5" voice coil. Hybrid configuration permit to obtain
extension and speed of vented with high SPL and acoustic filtering of band pass. The FBT MUSE 118FSA/FSCA can be suspended
facing forward or rearward with capability of front-or rear mounting the grille and amp module for aesthetic uniformity in cardioid
configuration (hardaware fully compatible with MUSE 210). The FBT MUSE 118FSA/FSCA provides a DSP with 8 presets; the

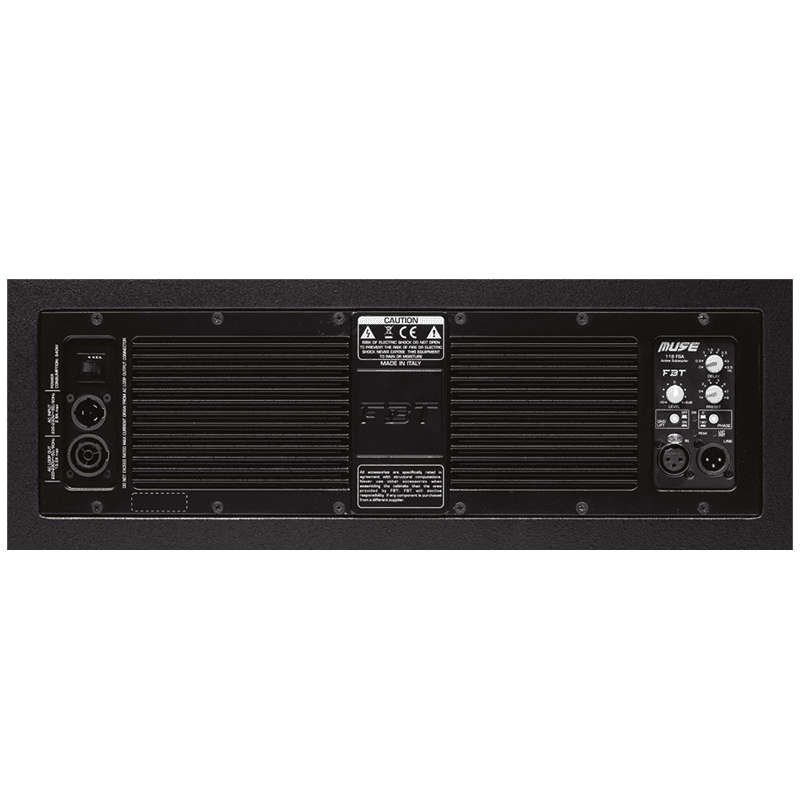

control panel provides XLR «in&link», volume, preset, delay, phase 0°-180°, ground lift switch. The FBT MUSE 118FSA/FSCA
feature Baltic birch plywood construction covered in a scratch resistant black paint.
Ideal for small to medium sized applications in: Theatres, Concert Halls, Clubs, Places of Worship, Conference Rooms, Indoor Sports, Arenas & Stadiums
Configuration:1 HYBRID BANDPASS way
Built-in amplifier LF/HF:1200 W RMS
Built-in amplifier peak LF/HF:2400 W
Frequency response:33Hz-100Hz -6dB
Low Frequency woofer:1X18 - 3.5 coil - neodymium inch
Maximum SPL cont/peak:135/139 half-space dB
Dispersion:Omnidirectional HxV
Input impedance:22 Kohm
Crossover Frequency:preset dependant KHz
AC Power requirements:640 VA
Input connector:XLR with loop
Power cord:5/ 16.4 m/ft
Net Dimension (WxHxD):652x500x750mm
Net Weight:67kg
Transport Dimension (WxHxD):700x650x800mm
Transport Weight:77kg
Product colour: Black
Colour temperature: 2000K - 8000K
Light source: 4-in-1 LED
Colours: Red, Green, Blue, White
LED power: 40W
Quantity of LEDs: 19
Beam angle: Min: 6°
Beam angle: Max: 40°
Zoom: Yes
Illuminance: 100.101 lx @ 1m
Head movement: Pan: 540°
Head movement: Tilt: 180°
Flash rate per second: 1 - 22Hz
Modes: Automatic programs, DMX, Master/Slave
Sound to light mode: Yes
RDM: Yes
DMX channels: 21, 35, 78, 111
DMX connection: 3-pin XLR, 5-pin XLR
Display: LCD
IP rating: IP65
Cooling: Temperature controlled fan
Power plug: P-Con TR1
Power consumption: 8.00 - 3.67A
Power supply: 100-240VAC 50/60Hz
Dimensions (L x W x H): 408 x 302 x 490 mm
Weight (kg): 22.15
Included accessories: Mounting bracket, Power cable
