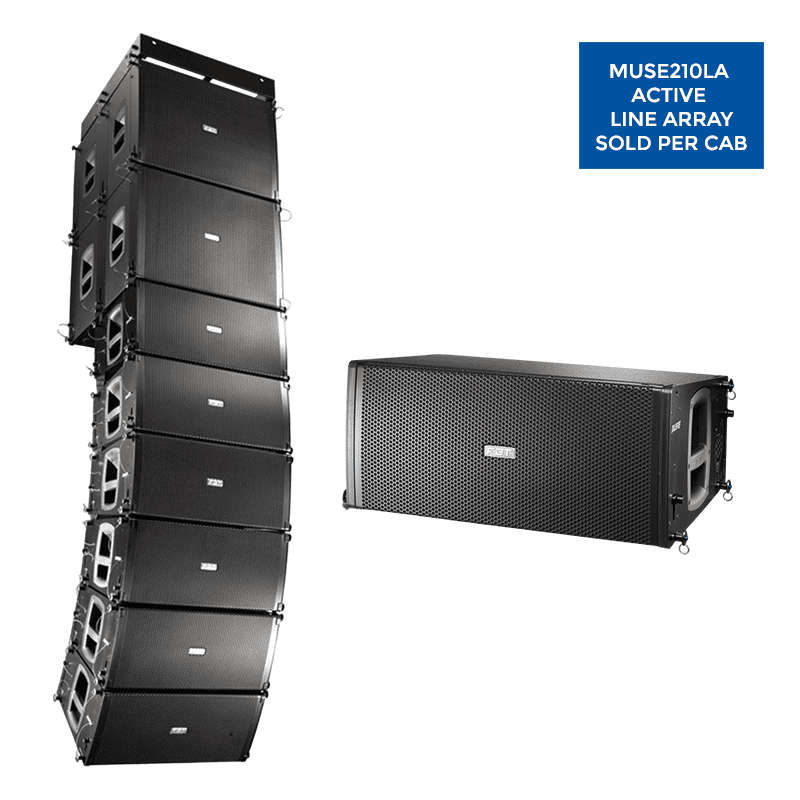

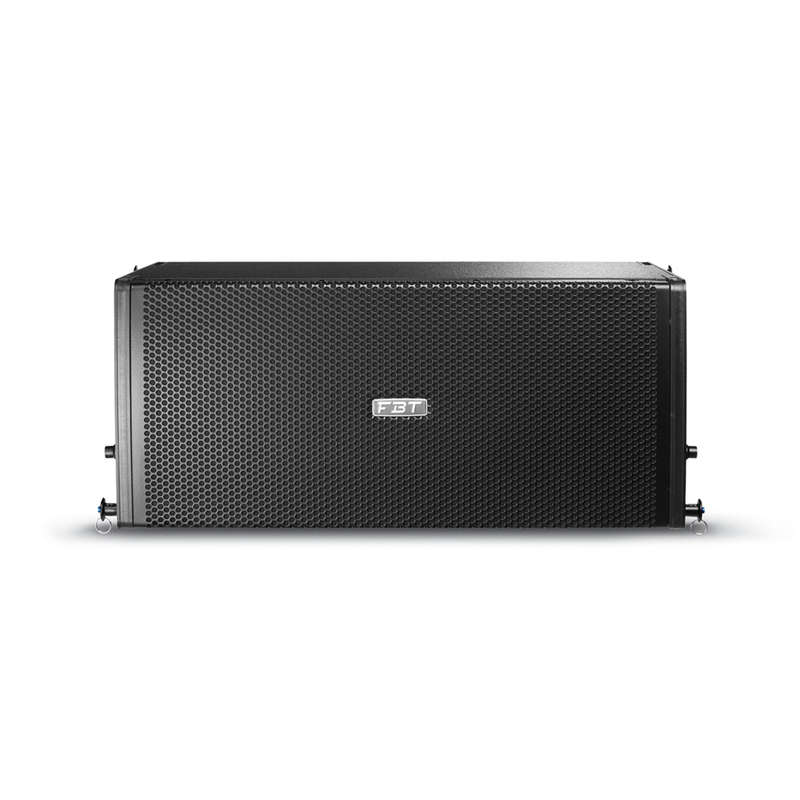

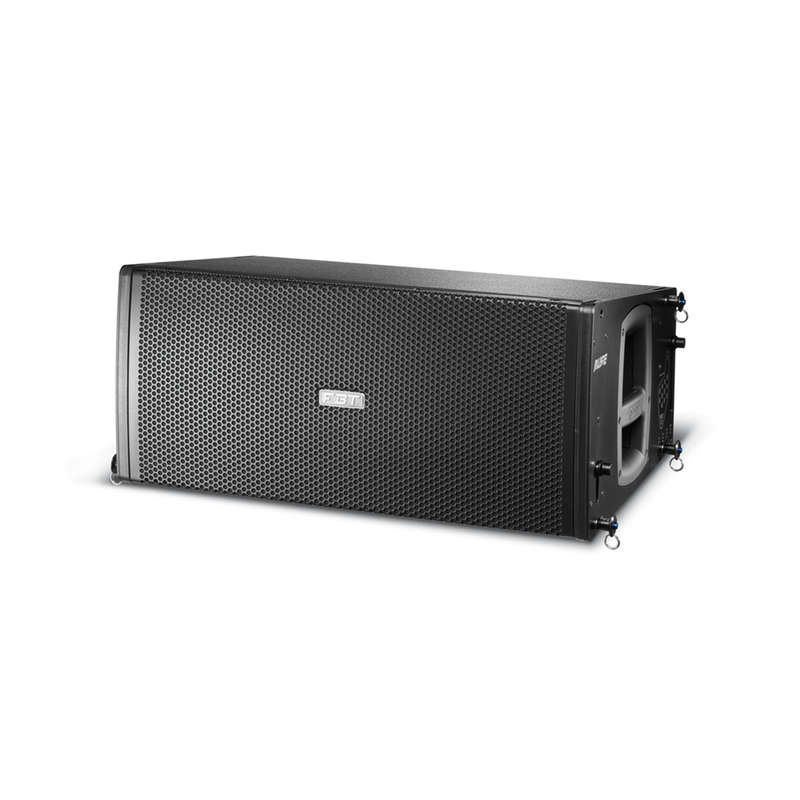

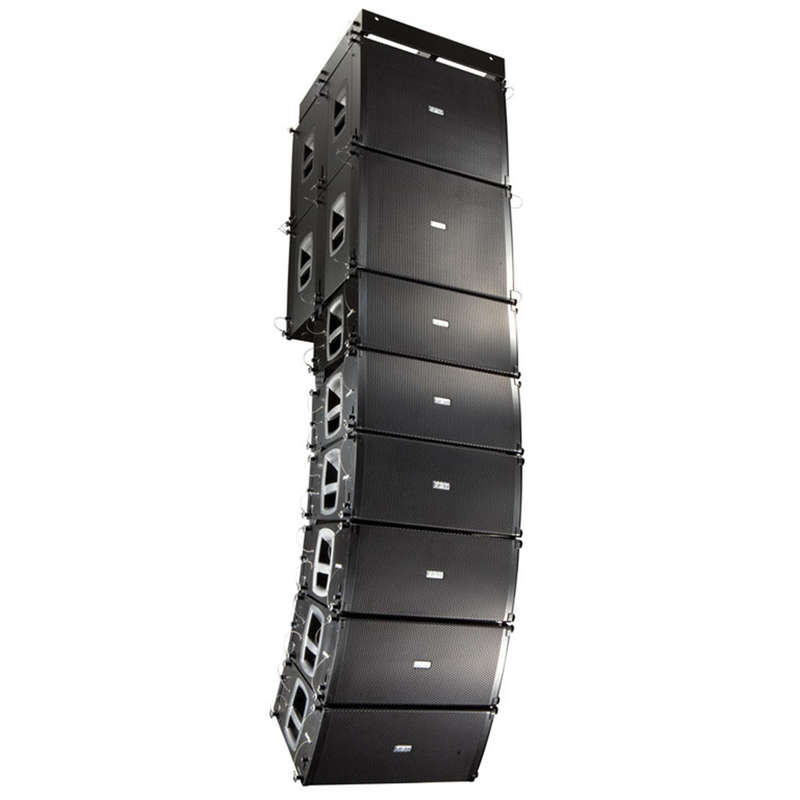

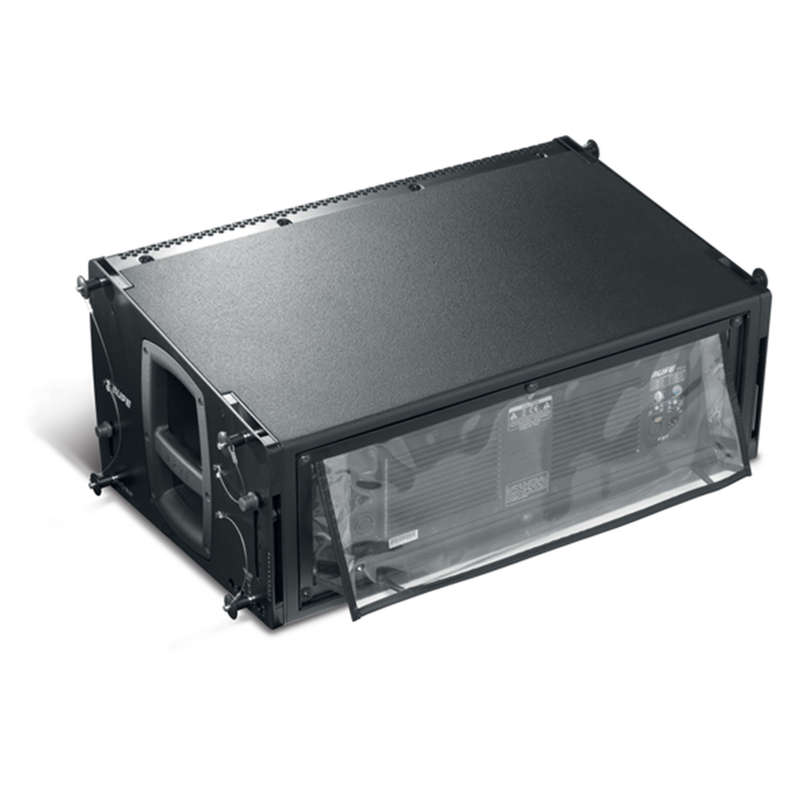

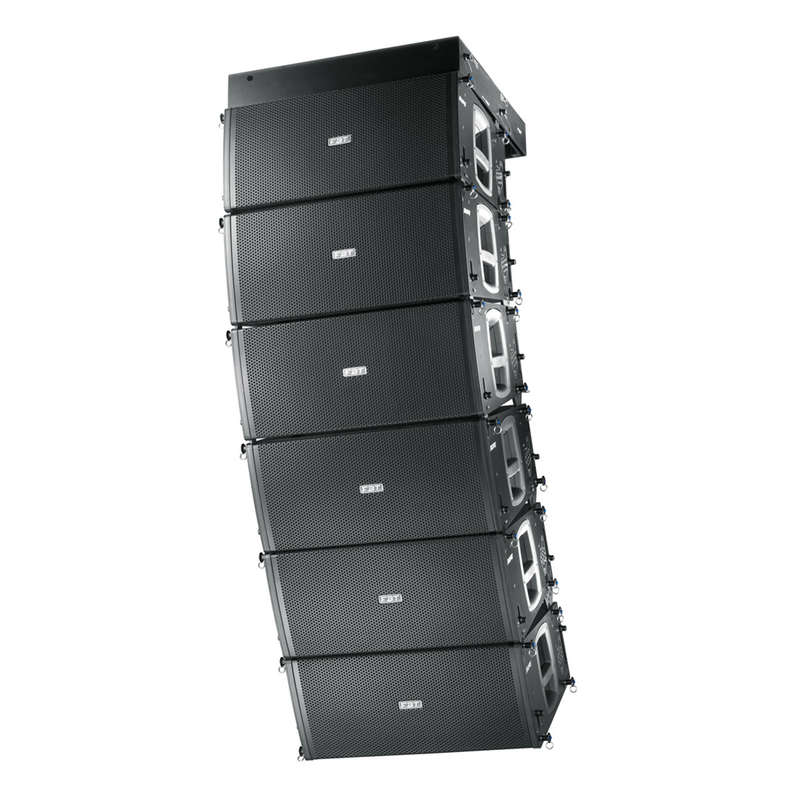

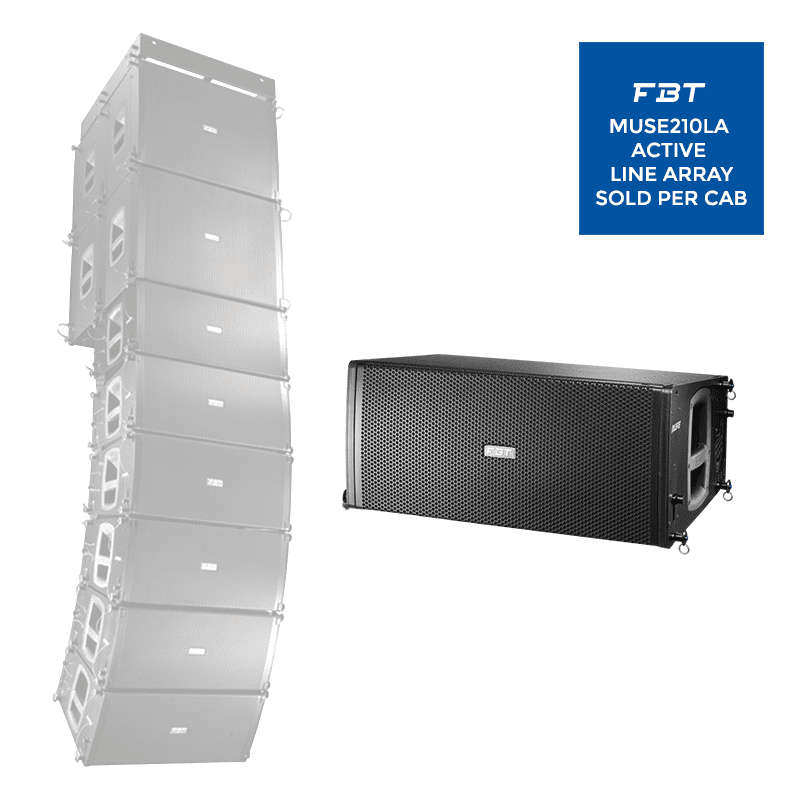

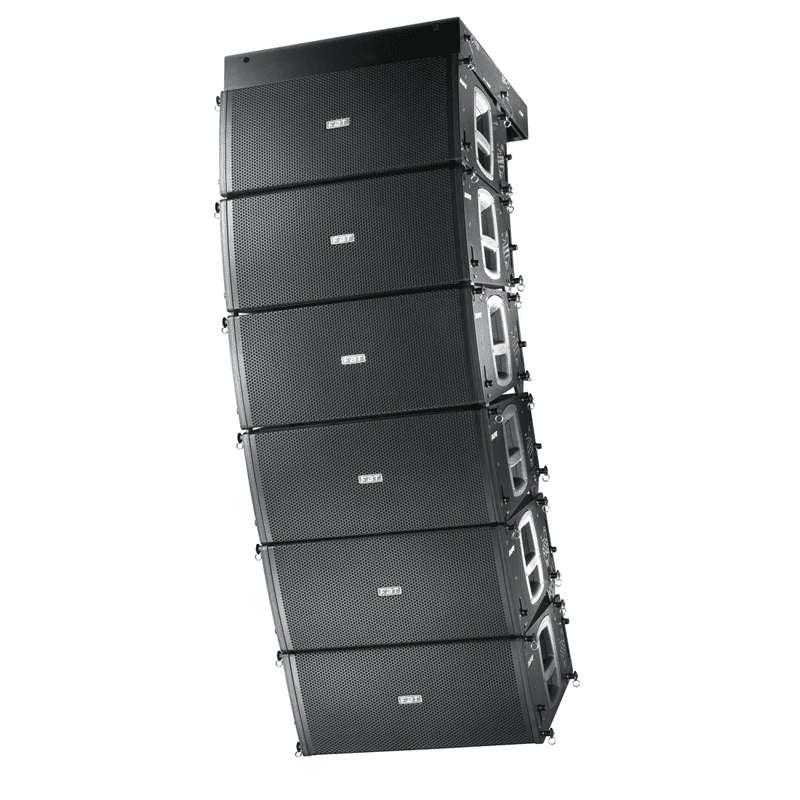

A true line array system ancompassing advanced technology and refined italian engineering, these are the principles behind MUSE, a new sound reinforcement solution from FBT that redefines the modern line array in terms of power, size, light weight, flexibility and ease of use. The MUSE 210LA is the ideal choice when line array performance is needed and a fast and easy set up is a must. The modularity of the FBT MUSE 210LA makes it extremely flexible for a wide range of applications, from a small two cabinets PA system to an elaborate line array system consisting of up to 16 FBT MUSE 210LA cabinets along with multiple FBT SUBLINE 218SA subs for large concert events. The system features 2 x 10" woofers with 2.5" voice coil and two custom B&C HF compression drivers with 1" throats. The system is powered from a 600W RMS amplifier in Class D technology for LF and a 300W RMS amplifier for HF; the amplifier features a solid lightweight die-cast aluminium structure that permits to protect the electronics against dust, avoid any air loss through the controls and maximize heat loss by using the woofer ventilation instead of a cooling fan. The waveguide, optimized by BEM finite element simulation, offers 90° horizontal dispersion engineered to be perfectly integrated with the HF compression driver it allows the dispersion of a flat acoustic wave to over 18kHz. The FBT MUSE 210LA cabinets coupling hardware is internally integrated and allows the suspension of 16 arrays with a splay angle between 0° - 10° with 1° step. The onboard DSP offers a choice of eight presets, allowing users to easily configure their MUSE 210LA system depending on the curvature of arrays and the number of speakers used. 3 status LEDs, On/Peak/Lmt-Prt, are provided for monitoring the system. FBT MUSE 210LA cabinets are moulded on a 0,59" (15mm) birch plywood, and incorporate two die cast aluminium handles; the front is protected by a heavy duty metal grille with anti-resonance spacers and exclusive synthetic cloth to protect the drivers. The FBT MUSE 210LA provides a wide range of hardware accessories for flying and ground stacked configurations.
Built-in amplifier LF/HF: 600/300 W RMS
Built-in amplifier peak LF/HF: 1200/600 W
Frequency response: 55Hz - 20kHz -6dB
Low frequency woofer: 2x10 - 2.5 coil inch
High frequency driver: 2x1 - 1.7 coil inch
Maximum SPL cont/peak: 128/135 dB
Dispersion: 90° x 10° max dependant upon n° of element H x V
Input impedance: 22 Kohm
Crossover frequency: 1.1 KHz

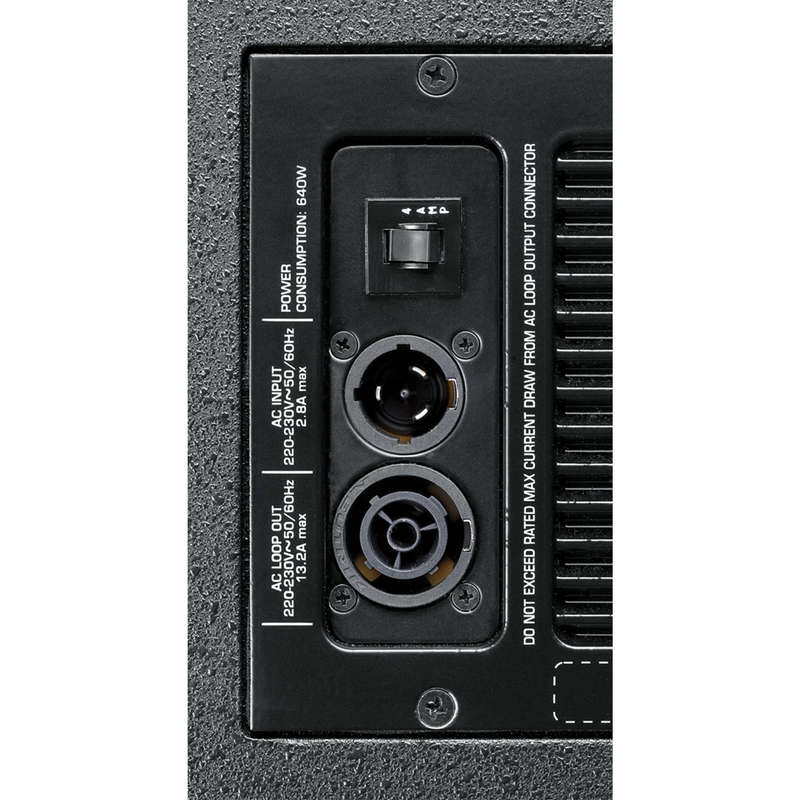

Ac power requirements: 640 VA

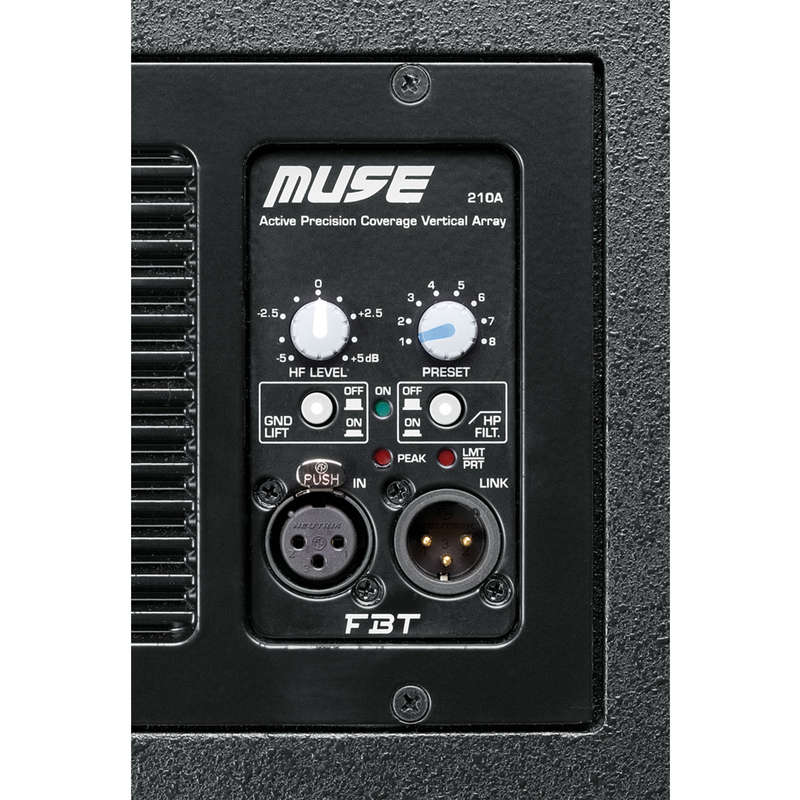

Input connector: XLR with loop
Net Dimension (WxHxD) : 713x296x425mm
Net weight: 38.2kg
Transport Dimension (WxHxD) : 790x375x520mm
Transport weight: 41kg
