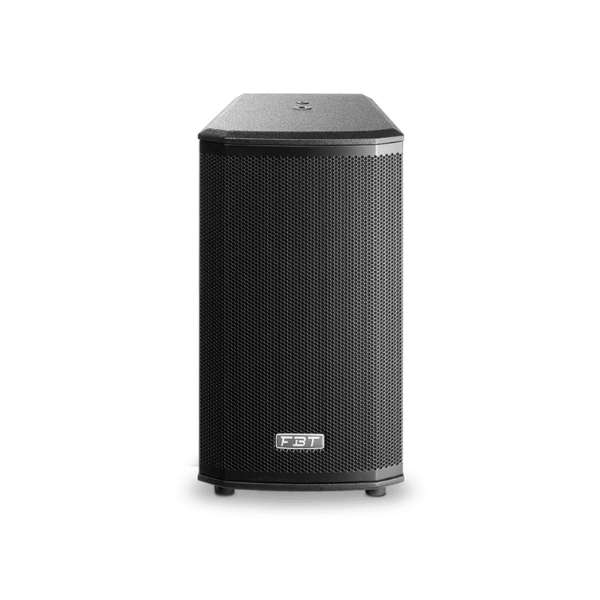

FBT – VENTIS 108A 8″ + 1″ 700W + 200W WITH DSP AND DELAY

PROCESSED ACTIVE SPEAKER 700W + 200W RMS — 131DB SPLFor the VENTIS range, quality and flexibility are the watchwords. Based on a powerful combination of B&C compression drivers and FBT's own custom, long excursion woofers, the 115, 112 and 110 models are two-way, bass reflex designs housed in 15mm birch plywood. A full-grille design backed by specially treated acoustic cloth delivers the characteristic style for which FBT is known, while fully rotatable constant directivity horns ensure accurate coverage.

The 108A includes a 200mm (8) woofer and 50mm (2) voice coil, driven by 700W + 200W bi-amplification to deliver an impressive 131dB SPL from a supremely portable cabinet.

SPECIFICATIONS:

• Configuration: 2 Way
• Frequency response: 65Hz - 20kHz
• Low frequency woofer: 8" / 2" coil
• High frequency driver: 1" / 1.4" coil
• Maximum SPL cont/peak: 123/131dB
• Dispersion: 80 x 50 Rotatable
• Input impedance: 22kOhm
• Input connector: XLR/Jack Combo socket with XLR link out, RCA stereo input
• Net Dimension (WxHxD): 274 x 500 x 300mm
• Net Weight: 13.3kg
• Transport Dimension (WxHxD): 530 x 547 x 580mm
• Transport Weight: 27kg
• AC Power requirements: 640VA
• Built-in amplifier LF/HF: 900w (700w LF + 200w HF)
• Built-in amplifier peak LF/HF: 1800w (1400w LF + 400w HF)
• Power cord: 5m PowerCON True1

FEATURES:

• Bi-amped
• Speaker configuration: 8" Woofer and 1" tweeter
• Power: 700 W Class D (LF) and 200 W Class H (HF)
• DSP with 6 presets and 2 freely configurable memory locations
• Housing material: 15 mm Birch plywood
• Beam angle (nominal): 80° x 50° (H x V, rotatable)
• Frequency range: 65 - 20,000 kHz (-6 dB)
• Maximum SPL: 131 dB
• Inputs: XLR / jack combo socket and RCA ("Cinch" stereo)
• Link output: XLR male
• Dimensions (W x H x D): 274 x 500 x 300 mm
• Weight: 13.3 kg
• Colour: Black
