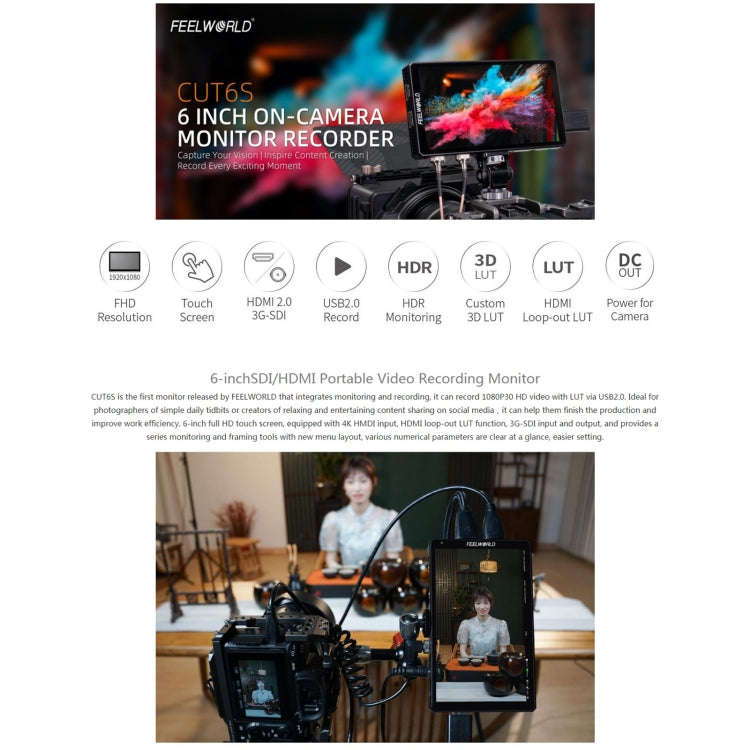

Features
1. 6-inch 1920x1080 full HD IPS screen

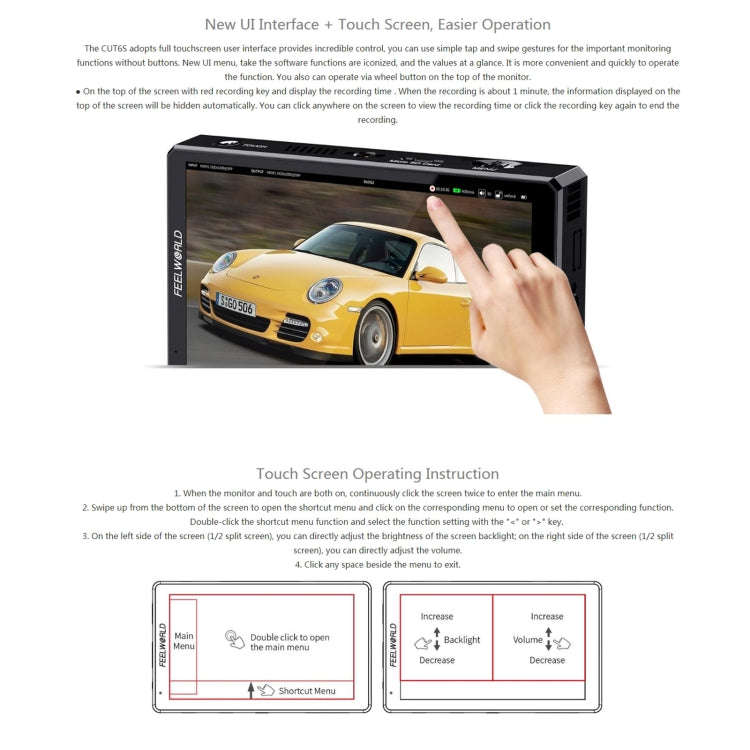

2. Touch screen menu operation, improve shooting efficiency
3. New UI interface, easier to setup

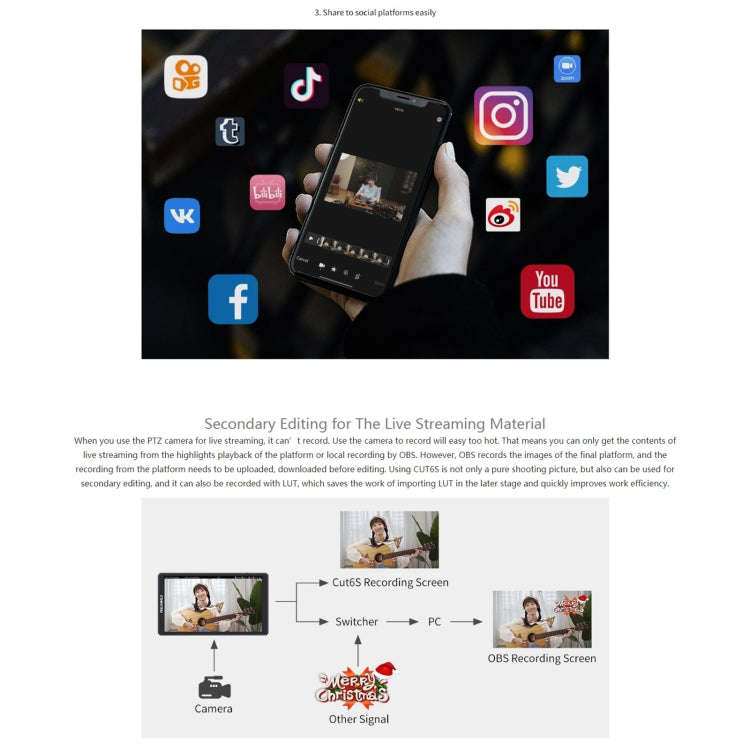

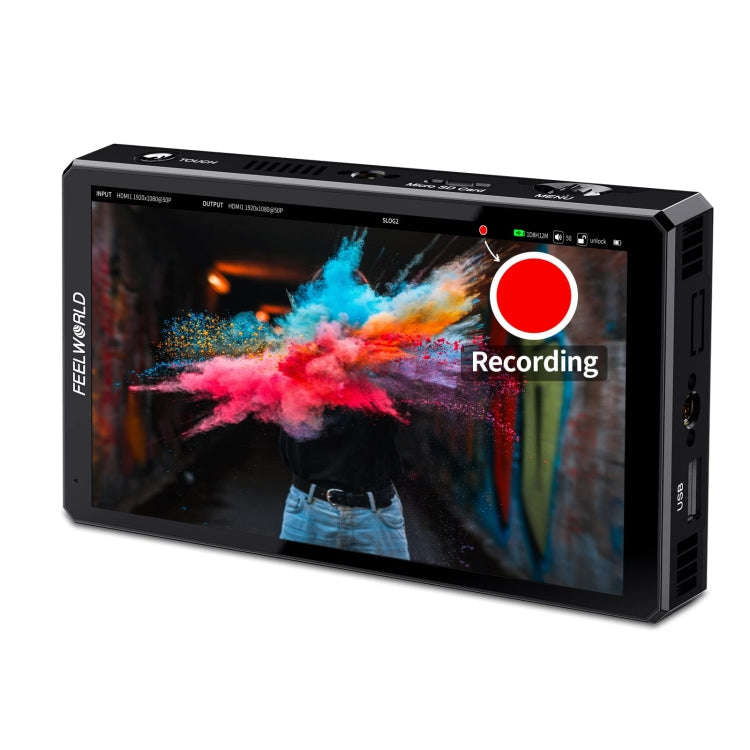

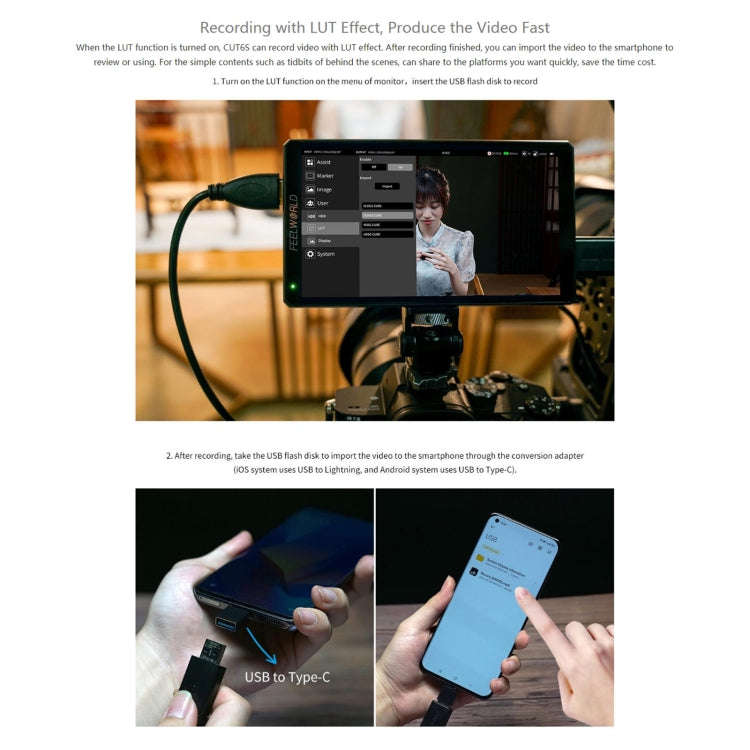

4. Real-time USB2.0 recording, and support record video with LUT effect

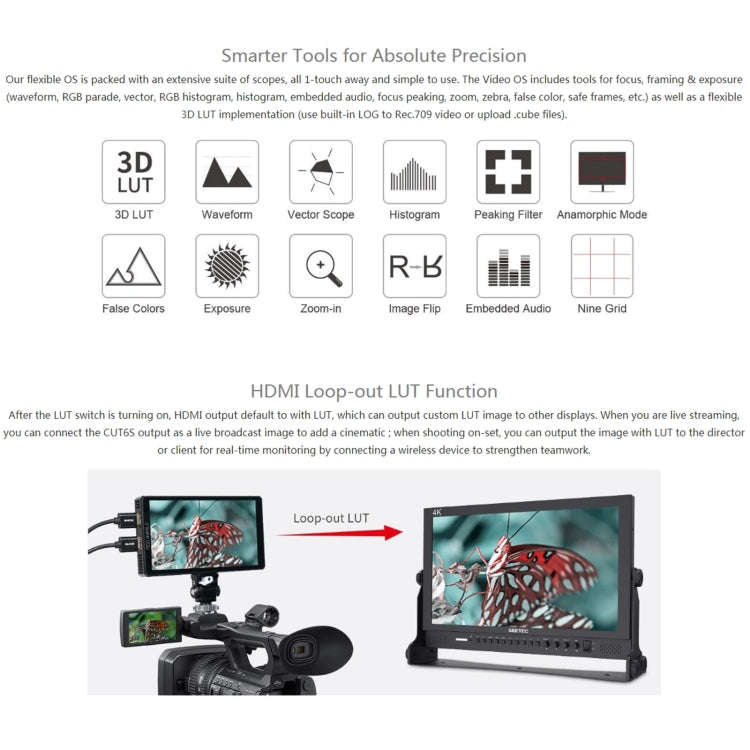

5. HDMI supports LUT loop-out

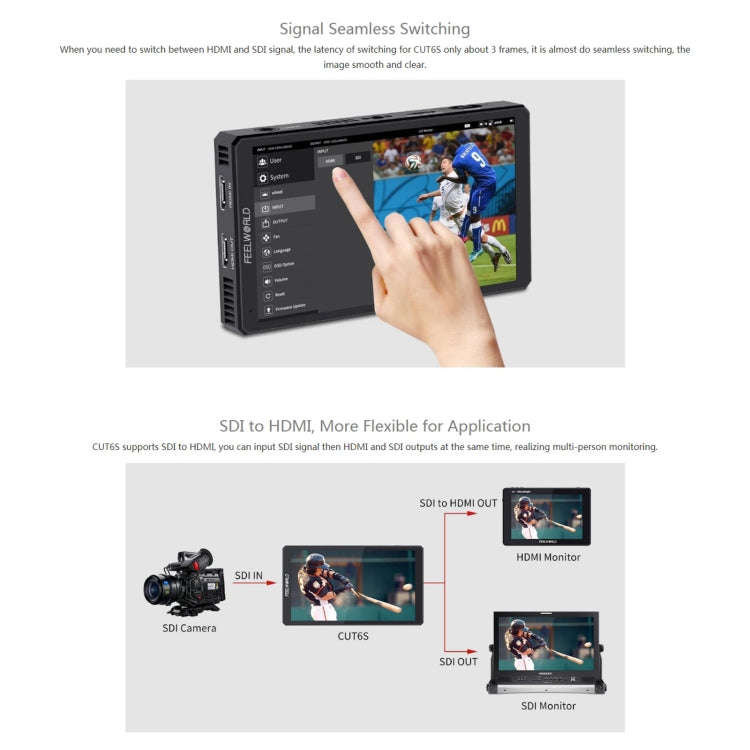

6. SDI to HDMI,more flexible for application
7. Signal seamless switching, make the image smooth and clear

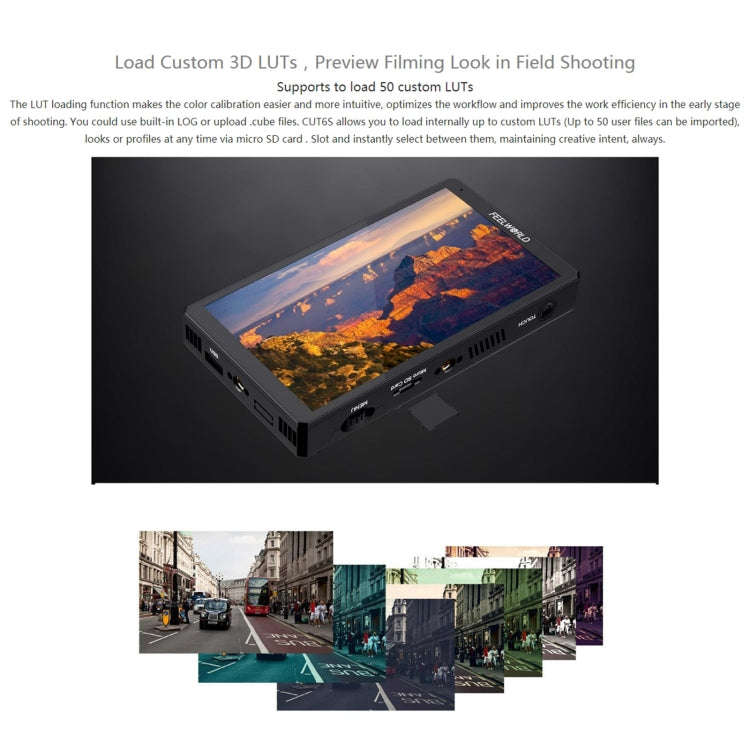

8. Support 3D LUT Log to REC.709 and user 3D LUT upload (up to 50)

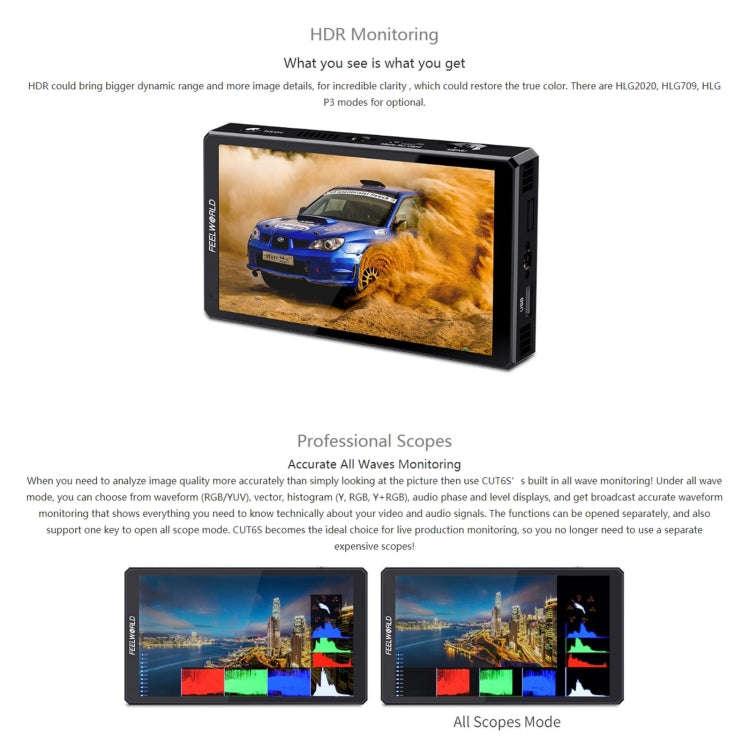

9. HDR monitoring, what you see is what you get
10. With Waveform, Vectorscope, RGB Histogram, Focus Assist,Monochrome etc. functions, help you accurately exposure and focus every shot.
11. Flexible power supply DC IN 12V and NP-F battery slot, meet the different selection.
12. Stereo Earphone output

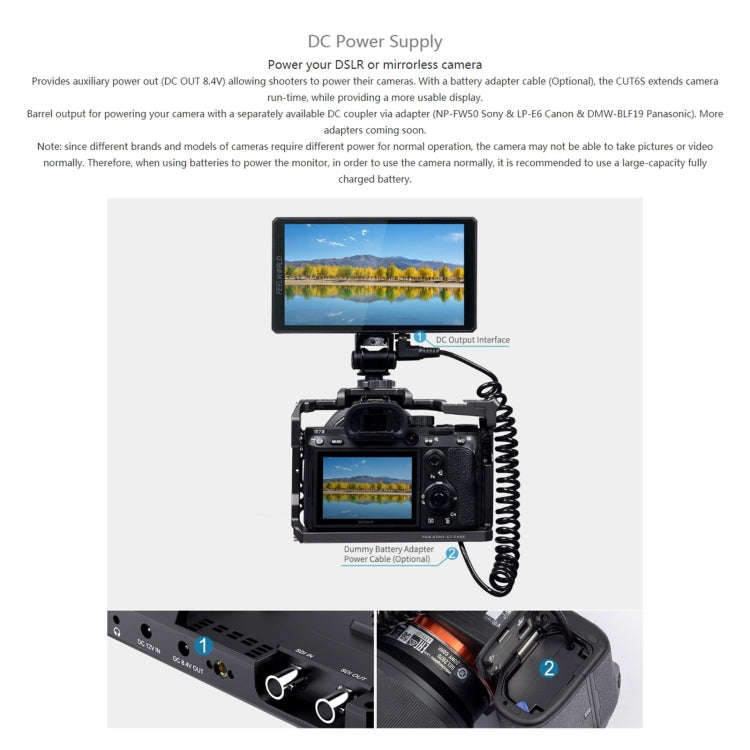

13. DC 8.4V power out to power your DSLR camera or mirrorless camera
Specifications
Panel Features
1. Model: CUT6S
2. Screen size: 6 inches IPS
3. Resolution: 1920x1080 pixels
4. Dot pitch: 0.069 (H) x 0.069 (V) (mm)
5. Screen ratio: 16:9
6. Brightness: 450cd/square meter
7. Contrast ratio: 1000:1
8. Backlight: LED
9. Viewing angle: 80 degrees/80 degrees (L/R) 80 degrees/80 degrees (U/D)
Input

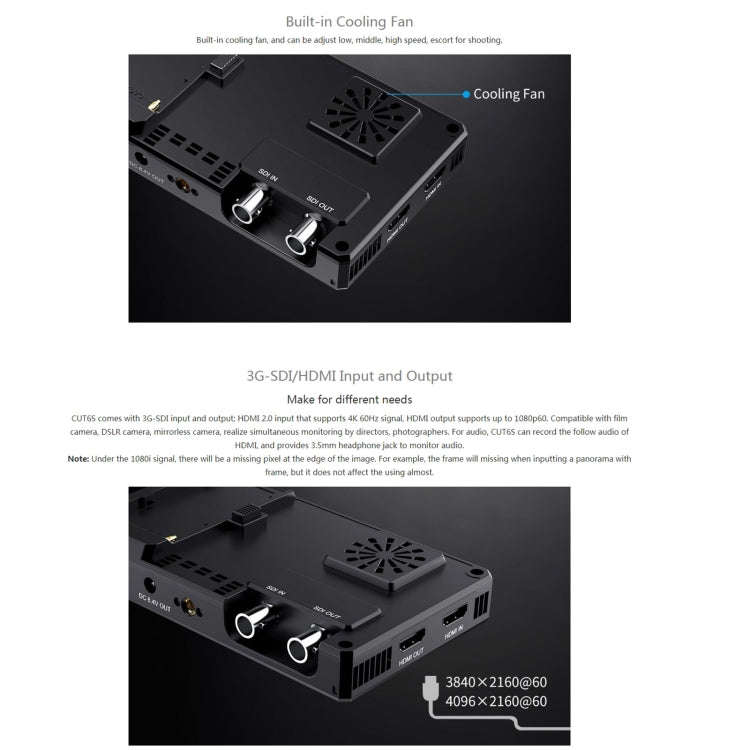

1. 1 X SDI: 3G-SDI
2. 1 X HDMI: HDMI 2.0
3. 1 X Micro SD Card: SD card slot (to import LUT files and firmware upgrade files)
Output
1. 1 X SDI: 3G-SDI
2. 1 X HDMI: HDMI 1.4
3. 1 X USB: USB 2.0 recording (support F at 32 format U disk)
4. 1 X DC: DC OUT 8.4V (outer diameter 5.5mm, inner diameter 2.1mm; can supply power to SLR or mirrorless cameras)
Audio
- Audio: Headphone jack
USB recording Support Formats
- MP4 (1080P30)
SDI Support Format
1. 480i, 576i, 1080i at 59.94/60
2. 720p at 23.98/24/25/29.97/30/50/59.94/60
3. 1080p at 23.98/24/25/29.97/30/50/59.94/60
4. 1080psf at 23.8/24/25/29.7/30
HDMI Input Support Format
- SMPTE: 720p at 50/60, 1080i at 50/60, 1080p at 24/30/50/60
2. VESA: 1024x768 at 60, 1280x720 at 60, 1280x768 at 60, 1280x800 at 60, 1280x1024 at 60, 1360x768 at 60, 1366x768 at 60, 1440x900 at 60, 1600x1200 at 60, 1680x1050 at 60, 1920x1080 at 60, 1920x1200 at 60, 3840x2160 at 60, 4096x2160 at 60
HDMI Output Support Format
1. SMPTE: 720p at 50/60, 1080p at 24/25/30/50/60
2. VESA: 1024x768 at 60, 1280x720 at 50/60, 1280x768 at 60, 1280x1024 at 60|1360x768 at 60, 1920x1080 at 24/25/30/50/60
Other Specifications
1. Input voltage: DC7~14V
2. Power consumption: less than or equal to 11W
3. Working temperature: -20 degree C~50 degree C
4. Storage temperature: -30 degree C~60 degree C

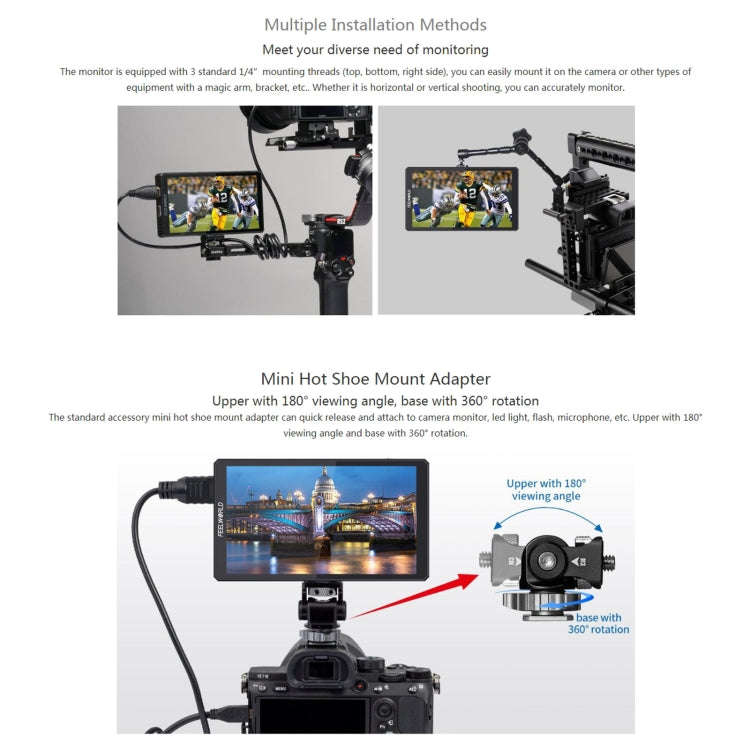

5. Installation method: 1/4 inch-20 Thread Socket (Right, Top, Bottom)
6. Stand-alone size: 152Lx86Hx23D(mm)
7. Stand-alone weight: 230g
Note: You need to press the power button when shutting down, and you cannot directly pull out the power cord.
Functions
1. Support 3D LUT Log to Rec.709, user 3D LUT Upload (up to 50)
2. Waveform (RGB, YUV)
3. HDR (HLG2020???HLG709???HLG P3)
4. Vector
5. Histogram ( Y, RGB, Y+RGB)
6. Embedded Audio
7. Focus Assist(red, green, blue,white four focus colors optional; 1~100 focus level adjustable)
8. False Colors (Spectrum, ARRI)
9. Zebra Exposure (1percent~100 percents adjustable)
10. Check Field (Red, Green, Blue, Mono)
11. Scan Mode (Under Scan, Over Scan)
12. Anamorphic Mode (1.25x, 1.33x, 1.5x, 1.8x, 2.0x, 2.0x mag)
13. Mirror (Auto, 180 Degrees, Flip H, FlipV )
14. Image Freeze
15. Center Marker
16. Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1:1, 1.91:1, 4:5, 9:16: 1.85:1, 2.35:1)
17. Aspect Ratio (16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1)
18. Cinema Guides(16:9, 16:10, 4:3, 1.85:1, 2.35:1, 2.41:1, 1.91:1, 5:4, 1:1.91)
19. Marker Color (red, green, blue, white, black, yellow)
20. Nine Grid
21. Zoom (1.0x???5.0x)
22. Pixel to Pixel
Package List
1. Monitor x 1
2. Micro HDMI cable x 1
3. Snail adapter head x 1
4. Instruction manual x 1
