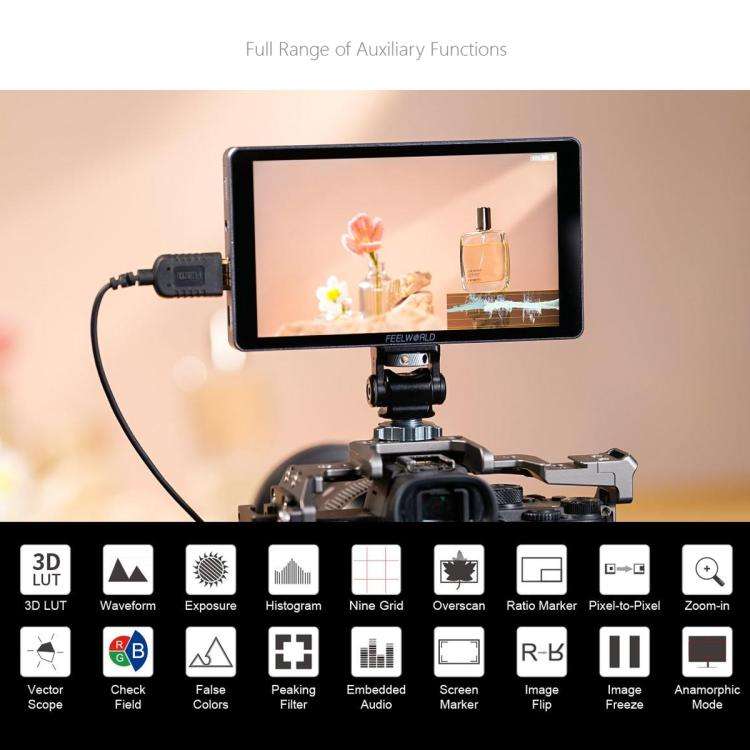

Features
1. Support 3D LUT Log to Rec.709, user 3D LUT Upload (up to 32)
2. Waveform (RGB, YUV, Y)
3. HDR
4. Vector
5. Histogram (RGB1, RGB2, Y)
6. Embedded Audio
7. Focus Assist(Red, Green, Blue three focus colors optional; 1~10 focus level adjustable)
8. False Colors (Normal, ARRI)
9. Over Exposure (10RE~100IRE adjustable)
10. Check Field (Red, Green, Blue, Mono)
11. Grid (2x2, 3x3, 4x4, 5x5, 6x6,7x7, 8x8,9x9, Custom)
12. Scan Mode (Under Scan, Over Scan)
13. Anamorphic Mode (1.33X, 1.6X, 2.0X, 2.0X MAG, User)
14. Image Flip ( H Flip, V Flip, H_V Flip )
15. Image Freeze
16. Center Marker
17. Safety Frames (80%, 85%, 90%, 93%, 96%, 2.35:1)
18. Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen)
19. Ratio Marker(4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1, 9:16)
20. Marker Color (Red, Green, Blue, Black, White, Gray)
21. User Switch (1-4)
22. Zoom Mode (2X, 4X, 9X, 16X, User)
23. Pixel to Pixel
24. Display Adjustment (can be adjust the image Backlight, Brightness, Contrast, Saturation, Tint 0~100)
25. Display Range(Auto, Limit, Full)
26. Built-in fan(can be adjustable 1~5)
27. Color Temp. ( 5600K, 6500K, 9300K, User. Under the "user", the red, green, and blue values of the image can be adjusted 0~255)
Specifications

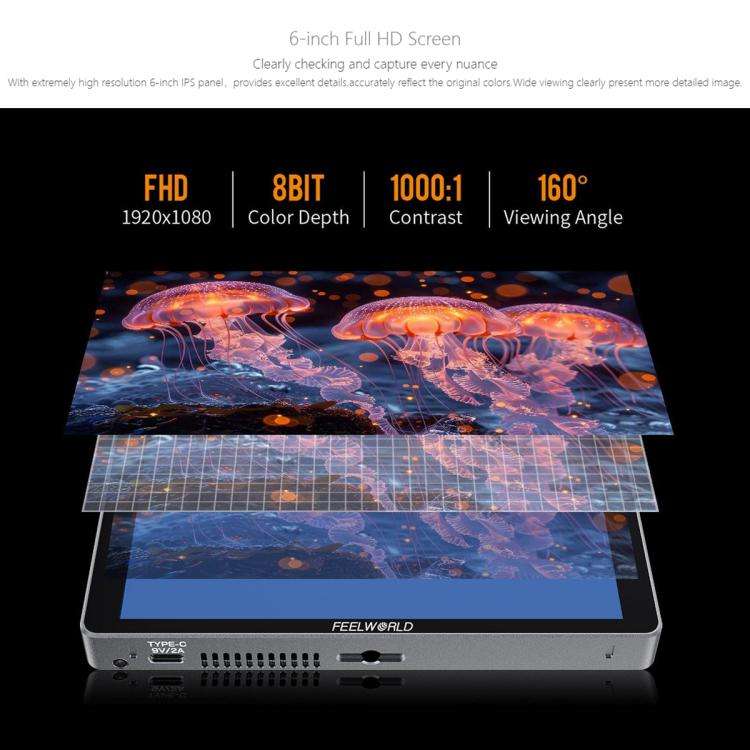

Display Spec.

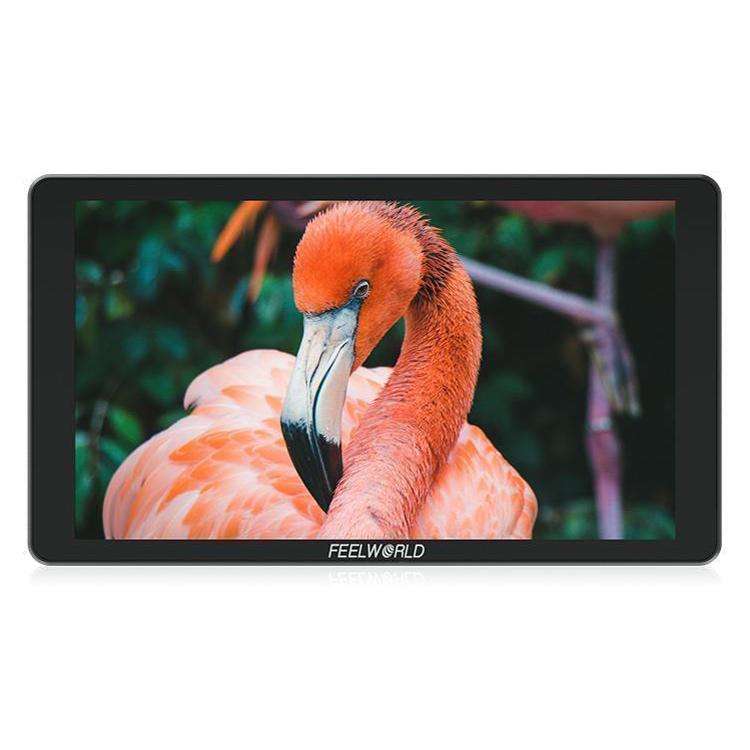

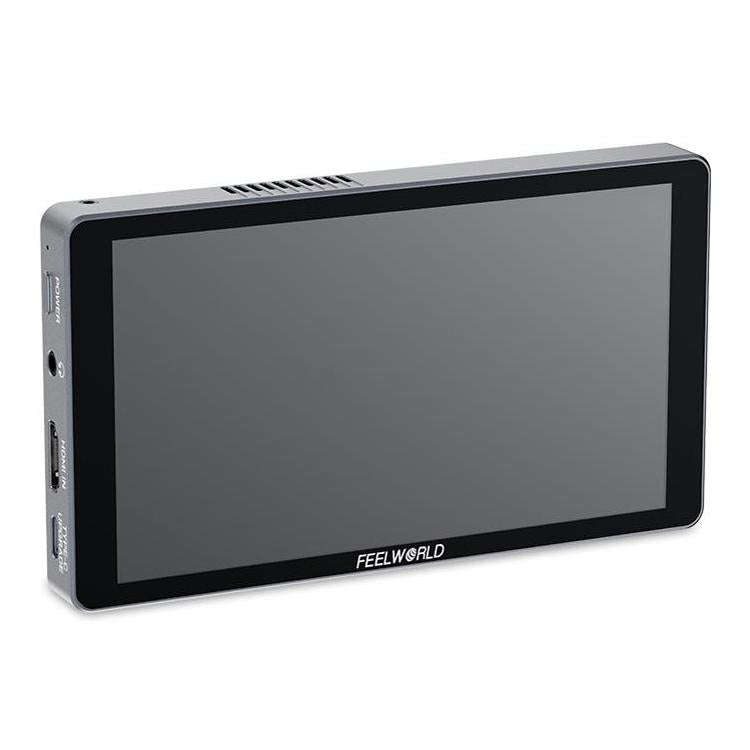

1. Model: P6XL
2. Screen Size: 6 inch IPS
3. Resolution: 1920 x 1080 pixels
4. Pixel Pitch: 0.069 (H) x 0.069 (V) (mm)
5. Aspect Ratio: 16:9

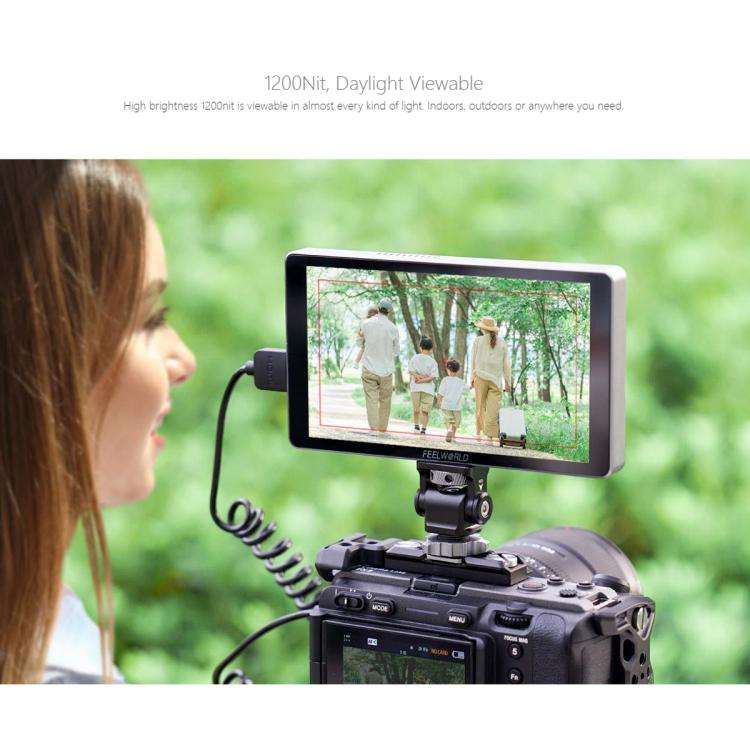

6. Brightness: 1200cd/m2
7. Contrast Ratio: 1000:1
8. Backlight: LED
9. Viewing Angle: 80 degree /80 degree (L/R) 80 degree /80 degree (U/D)
Signal Input

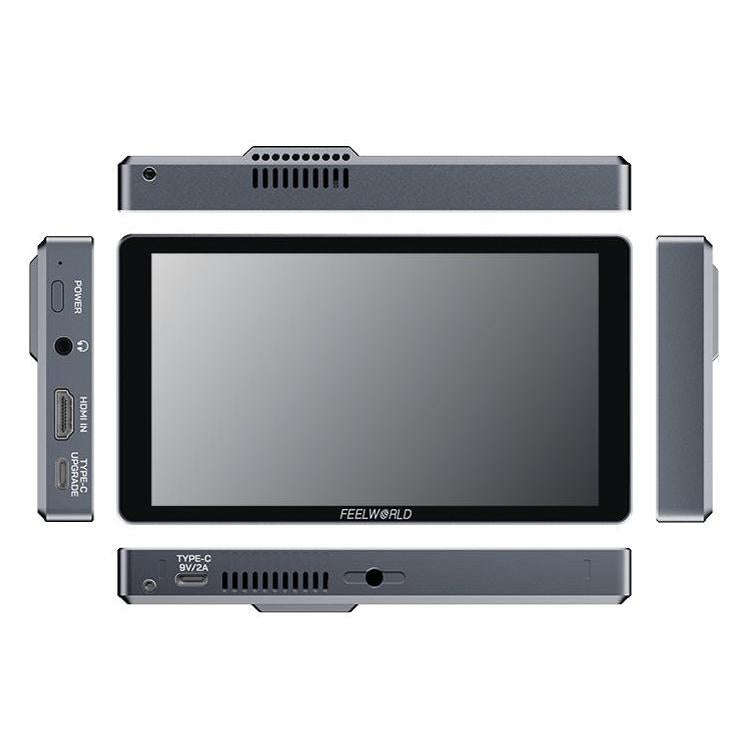

1 x HDMI: HDMI 1.4
Other Interface
1 x USB: USB-C (Firmware update/LUT file import)
Audio
Audio: 3.5mm Stereo Headphone

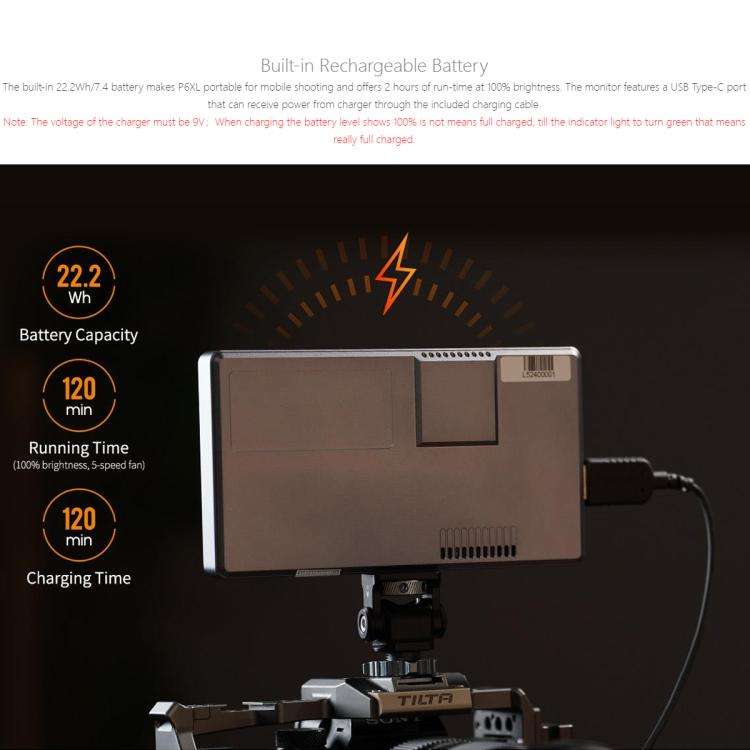

Battery
1. Battery Capacity: 3000mAh/22.2Wh
2. Voltage: 7.4V
3. Running Time: About 2 hours (at 100 percent brightness / 5-speed fan)
4. Charging Time: About 2 hours
Power Input
USB: Type-C 9V/2A (compatible with PD2.0/3.0 fast charging protocol; For Samsung AFC fast charging protocol; For HUAWEI FCP fast charging protocol; QC2.0/3.0 fast charging protocol) Note: the voltage of the charger must be 9V
HDMI Input Support Format
1. 480i/576i/480p/576p
2. 1080i (60/59.94/50)
3. 720p (60/59.94/50/30/29.97/25/24/23.98)
4. 1080p (60/59.94/50/30/29.97/25/24/23.98)
5. 3840 x 2160p (30/29.97/25/24/23.98)
General.
1. Power Consumption: Charging + working: Less than or equal to 21W; charging alone: Less than or equal to 14W; full charged working alone: Less than or equal to 9W
2. Working Temperature: -20 degree C~70 degree C
3. Storage Temperature: -30 degree C~80 degree C
4. Install Way: 1/4 inch-20 Thread Socket (bottom)

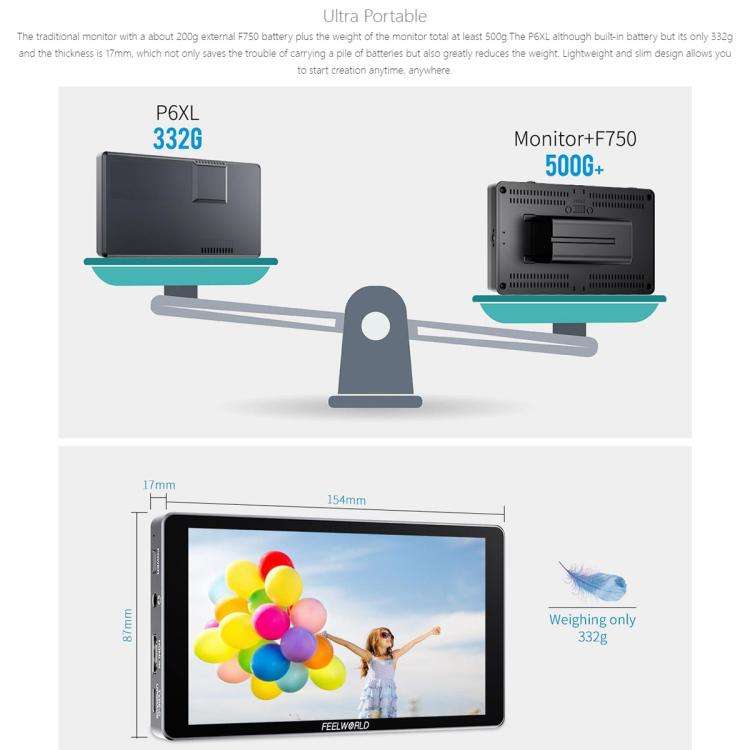

5. Unit Size: 154x87x17(mm)
6. Unit Weight: 332g
Package List
1. Host x 1
2. Micro HDMI cable x 1
3. USB-A to USB-C cable x 1
4. Snail gimbal + wrench x 1
5. USB to Type-C head x 1
6. Sunshade + sunshade frame x 1
7. Magic tape cable management tape x 1
8. HDMI cable x 1
9. Instruction manual x 1
