Features
1. 7-inch 1920x1200 full HD IPS screen, view details with confidence

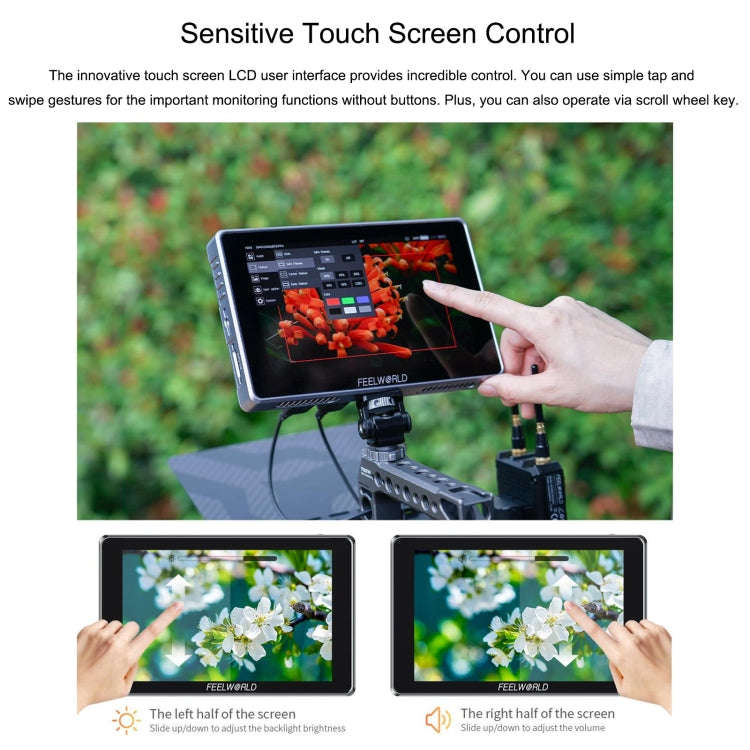

2. Touch screen menu operation, improve shooting efficiency
3. 1600nits visable in sunlight
4. Rugged aluminium housing

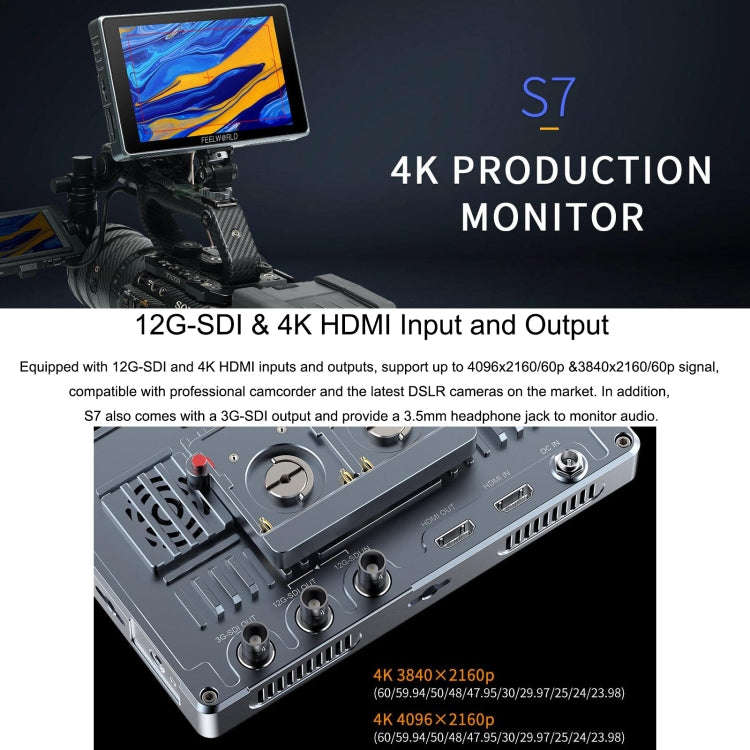

5. 12G-SDI high speed transmission, meet more professional production
6. With SDI & HD-MI cross conversion
7. Both HD-MI and SDI support LUT loop-out

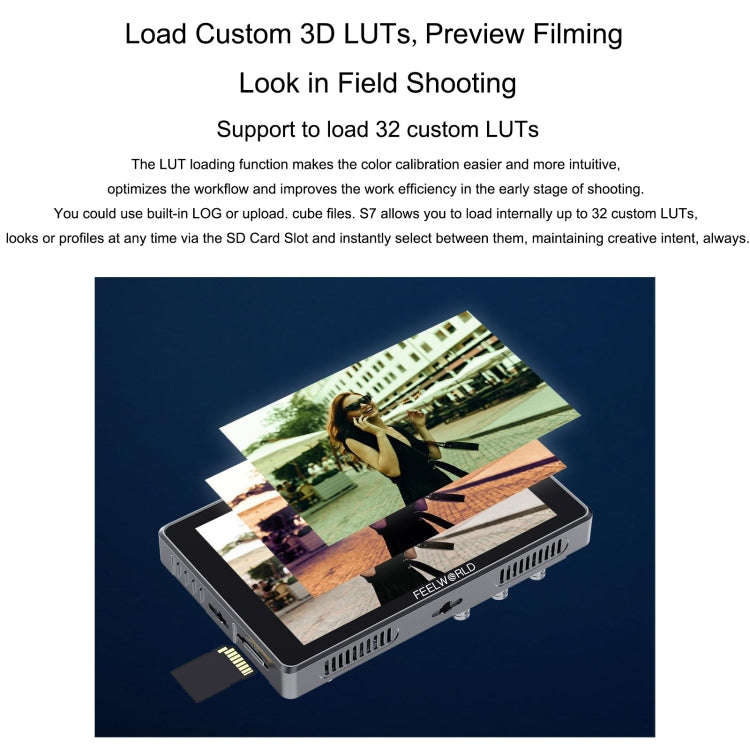

8. Support 3D LUT Log to REC.709 and user 3D LUT upload (up to 32)
9. HDR monitoring, what you see is what you get

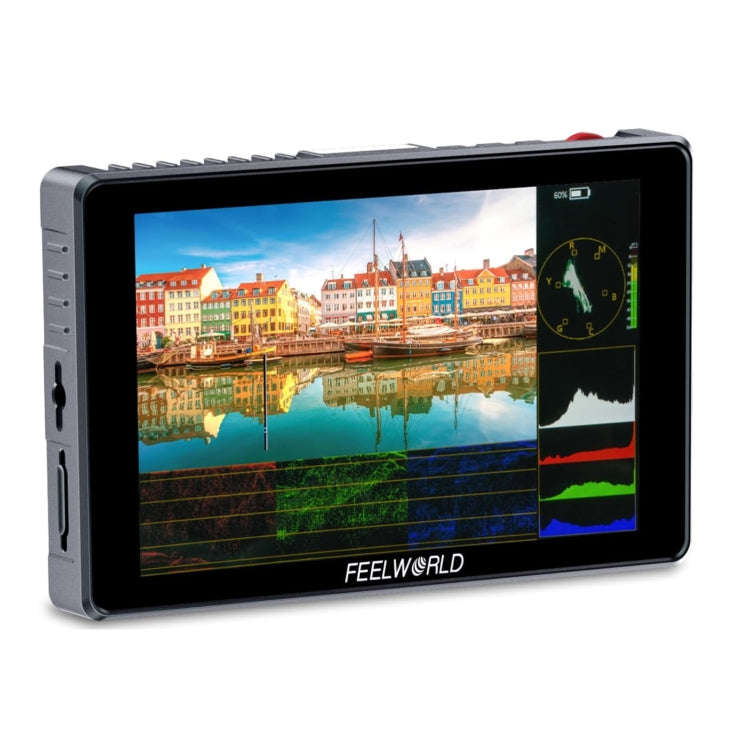

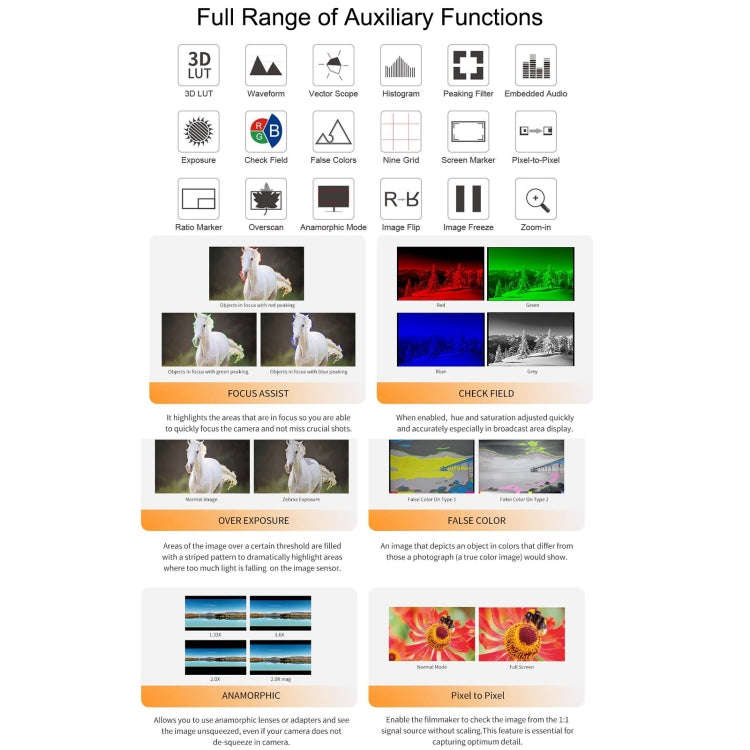

10. Support waveform, vector, histogram, audio meter movable vertically and horizontally
11. Standard accessory F970 dual battery??plates,long-lasting power or outdoor filming
12. Stereo Earphone output
Specifications
Display Spec.:
1. Model: S7
2. Screen Size: 7 inch IPS
3. Resolution: 1920x1200 pixels
4. Pixel Pitch: 26.25 (H) x 78.75 (W) (um)
5. Aspect Ratio: 16:10
6. Brightness: 1600cd/m2
7. Contrast Ratio: 1200:1
8. Backlight: LED
9. Viewing Angle: 80 degree /80 degree (L/R) 80 degree /80 degree (U/D)
Input:
1. 1 X SDI: 12G-SDI
2. 1 X HDMI: HDMI 2.0
3. 1 X Tally: 9 pin
4. 1 X SD Card: SD Card Slot (LUT files and firmware update file import)
Output:
1. 1 X SDI: 12G-SDI
2. 1 X SDI: 3G-SDI
3. 1 X HDMI: HDMI2.0
Media:
1. Audio: Audio: 3.5mm Stereo Headphone
2. 12G-SDI Input and Output Support Format: 720p (60/59.94/50/30/29.97/25/24/23.98), 1080i (60/59.94/50), 1080p (60/59.94/50/30/29.97/25/24/23.98), 2048x1080 (30p/30PsF/29.97p/29.97PsF/25p/25PsF/24p/24PsF/23.98p/23.98PsF), 4K 3840x2160p(60/59.94/50/48/47.95/30/29.97/25/24/23.98), 4K 4096x2160p(60/59.94/50/48/47.95/30/29.97/25/24/23.98)
3. 3G-SDI Output Support Format: 720p (60/59.94/50/30/29.97/25/24/23.98), 1080i (60/59.94/50),1080p (60/59.94/50/30/29.97/25/24/23.98)
4. HDMI Input Support Format: 720p (60/59.94/50/30/29.97/25/24/23.98), 1080i (60/59.94/50), 1080p (60/59.94/50), 4K 3840x2160p (60/50/30/29.97/25/24/23.98), 4K 4096x2160p(60/50/30/29.97/25/24/23.98)
5. HDMI Output Support Format: When set Display 720p (60/59.94/50/30/29.97/25/24/23.98), 1080i (60/59.94/50), 1080p (60/59.94/50), When set Loop-out (without set,it will default to Loop out); 720p (60/59.94/50/30/29.97/25/24/23.98), 1080i (60/59.94/50), 1080p (60/59.94/50), 4K 3840x2160p (60/50/30/29.97/25/24/23.98), 4K 4096x2160p(60/50/30/29.97/25/24/23.98)
Package List
1. Monitor x 1
2. Mini HD-MI Cable x 1
3. HD-MI Cable x 1
4. F970 Dual Battery Plate x 1
5. Mini Hot Shoe Mount + Hex Wrench x 1
6. Manual x 1
