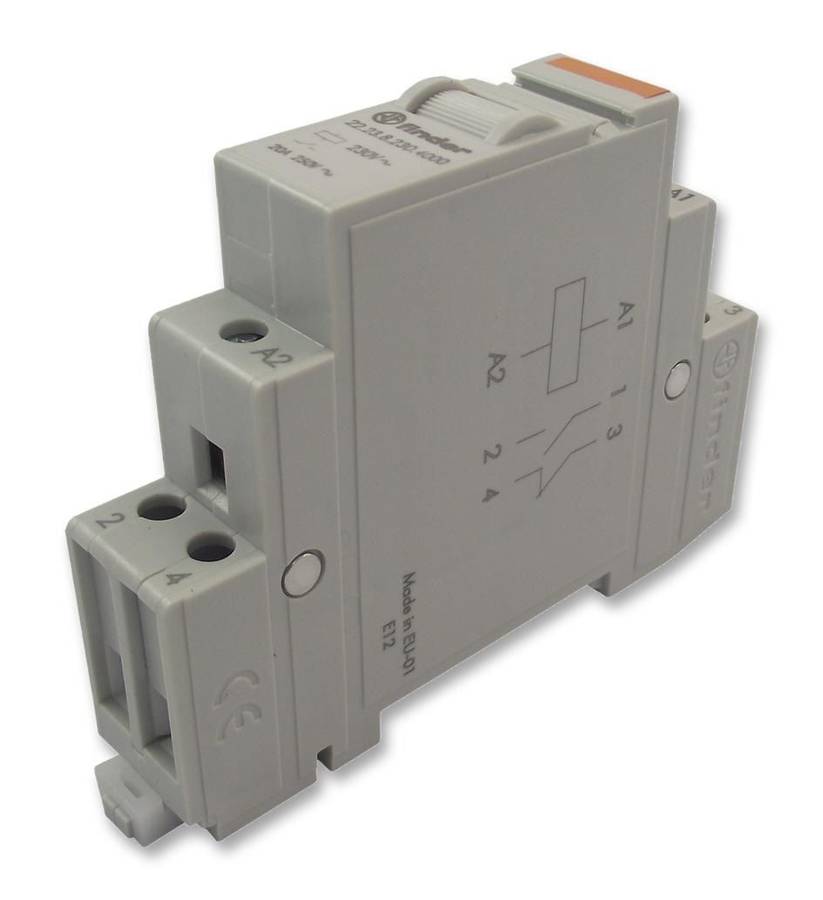

Finder (22.23.8.230.4000) Power Relay, 230 VAC, 20 A, 22 Series, DIN Rail

Finder (22.23.8.230.4000) Power Relay, 230 VAC, 20 A, 22 Series, DIN Rail

New 129 available
R2,055.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
1169298
Bob Shop ID
645121162
Product InformationContact Configuration: SPST-NO, SPST-NCCoil Voltage: 230VACContact Current: 20AProduct Range: 22 SeriesRelay Mounting: DIN RailCoil Type: -Contact Voltage VAC: 250VACRelay Terminals: ScrewContact Voltage VDC: -Contact Material: Silver Tin OxideCoil Resistance: 4.2kohmApprovals & Standards: CEProduct OverviewThe 22.23.8.230.4000 is a 2-pole Modular Step Relay with AC coil, 20.23 series.Double phase switch 1NO-1NC (SPST-NO+SPST-NC), test button with mechanicalindicators. Possible to connect illuminated pushbuttons with the additional part026.00. AgSnO2, cadmium-free contact. Module for illuminated pushbuttons. 35mmrail (EN 60715) mount.4kV (1.2/50µs) Isolation, coil contacts17.5mm WidthIdentification labelIP20 Protection ratingContinuous duty for the coil and contactsAC/DC silent coil (with varistor protection)Protective separation (reinforced insulation) between coil and contactsMechanical and LED indicators as standardAuto-on-off selector version availableAgNi and AgSnO2 contact versions availableApplicationsIndustrial, Power Management, Automation & Process Control, Motor Drive &Control
Add to cart
