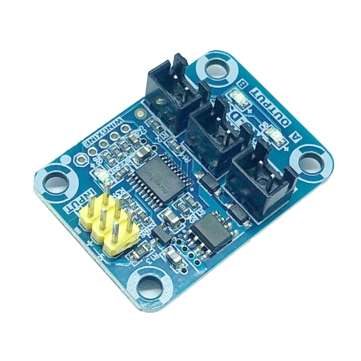

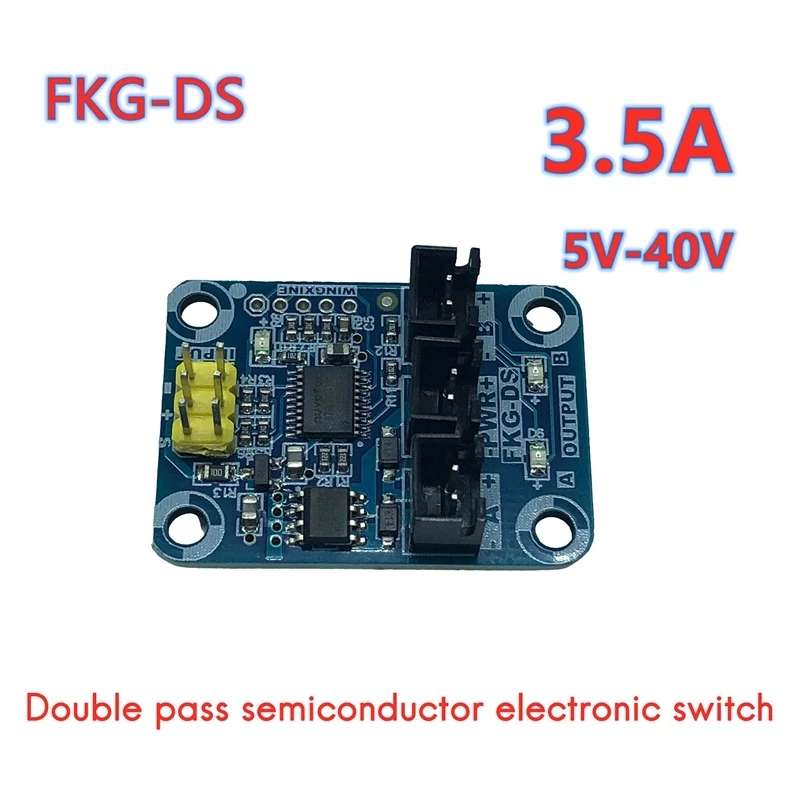

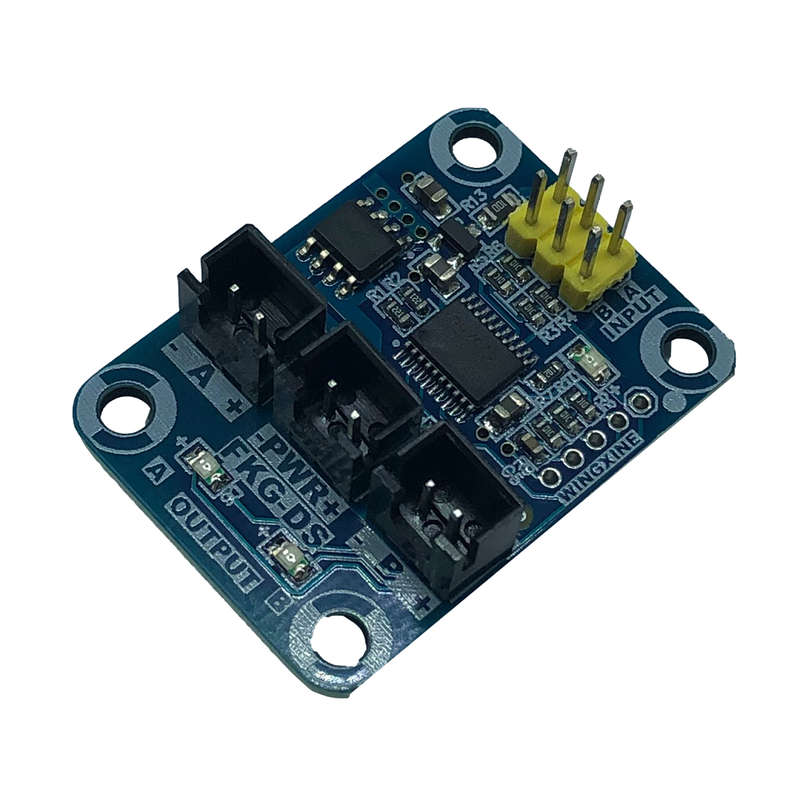

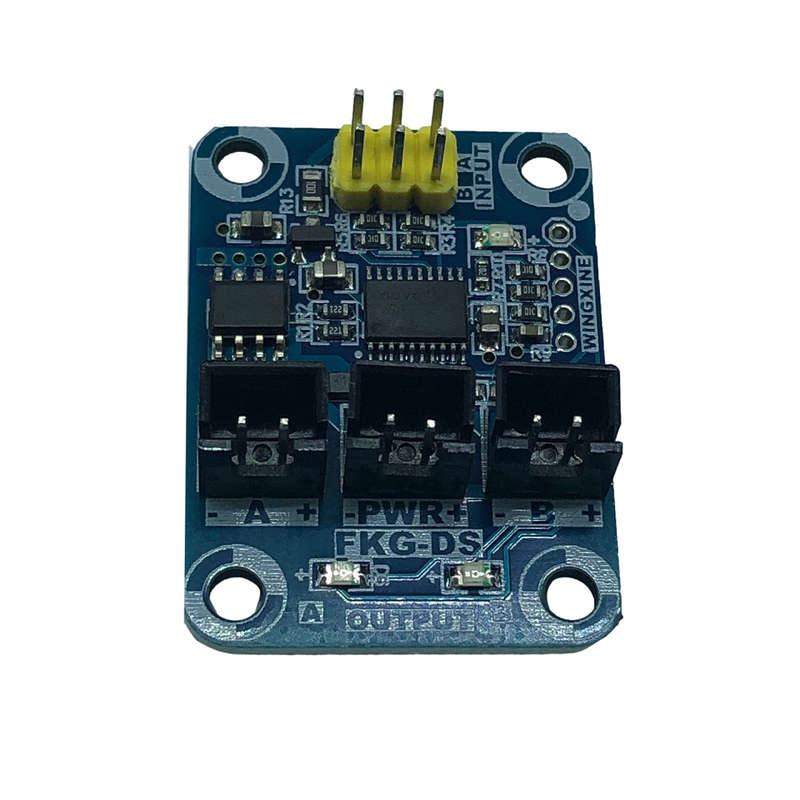

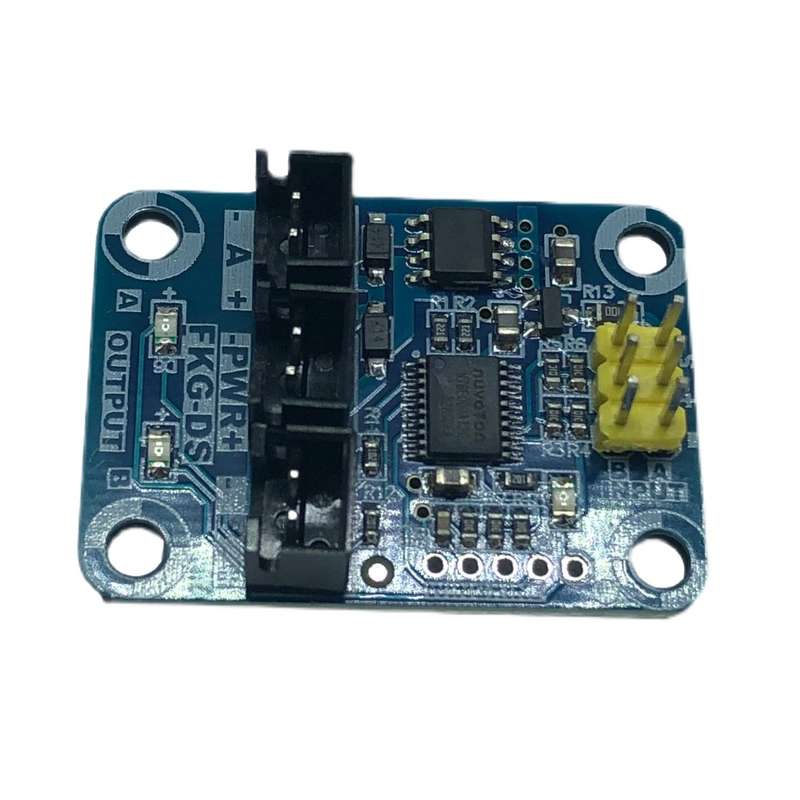

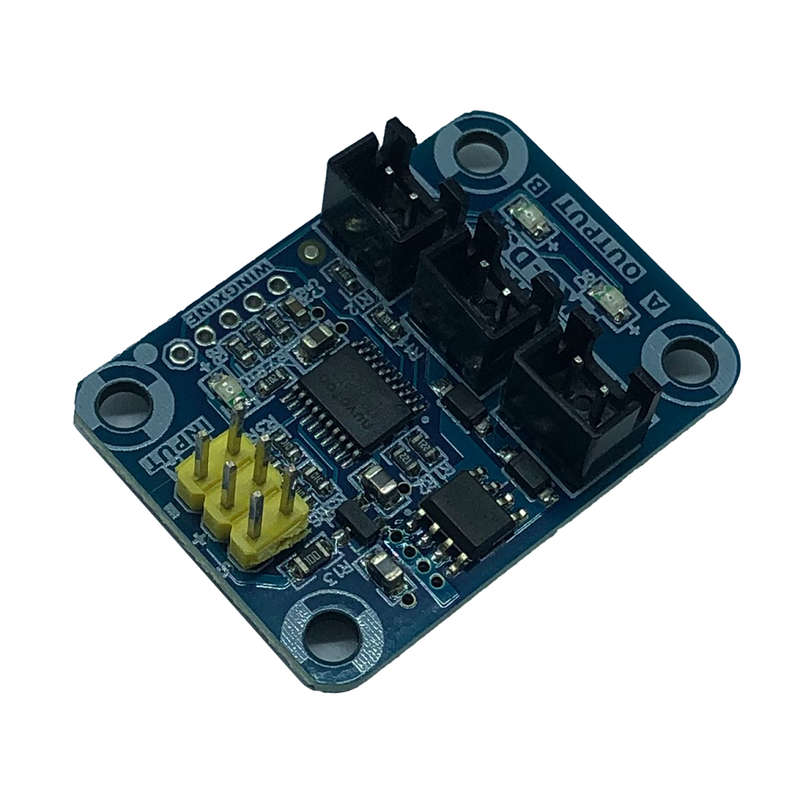

FKG-DS 3.5A 5V 40V Dual-Channel Relay Controller Semiconductor Electronic Switch Aeromodelling Remot

20 available / new

R315.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3513

93.42 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

643379470

Features:
1. With hysteresis input characteristics 2. Prevent manual operation jitter 3. Small size and light weight 4. Strong anti-interference ability 5. The output terminal is isolated from the signal input terminal
Application scope:
Contactor coil control Relay coil control Lighting control Switch signal control motor control
Rated parameters:
Model: FKG-DS Signal line input voltage: 5V-8V/DC (need to get power from the receiver) Quiescent current: 10mA (need to be taken from the receiver) Output characteristics: open-drain output 3.5A, maximum 40V withstand voltage is recommended to be used within 30V Control mode: output with hysteresis curve Features: dual-channel, relay contact, single-pole double-throw, two-channel independent control, isolation control on-off, indicator light shows relay on-off Limit control voltage: 40V/DC (MAX) Limit output current: 3.5A (MAX) Color:Blue Material: PCB+metal Size: 36.8 x 26.5 x 12mm Weight: 4.5g
Package included:
1 x FKG-DS controller
