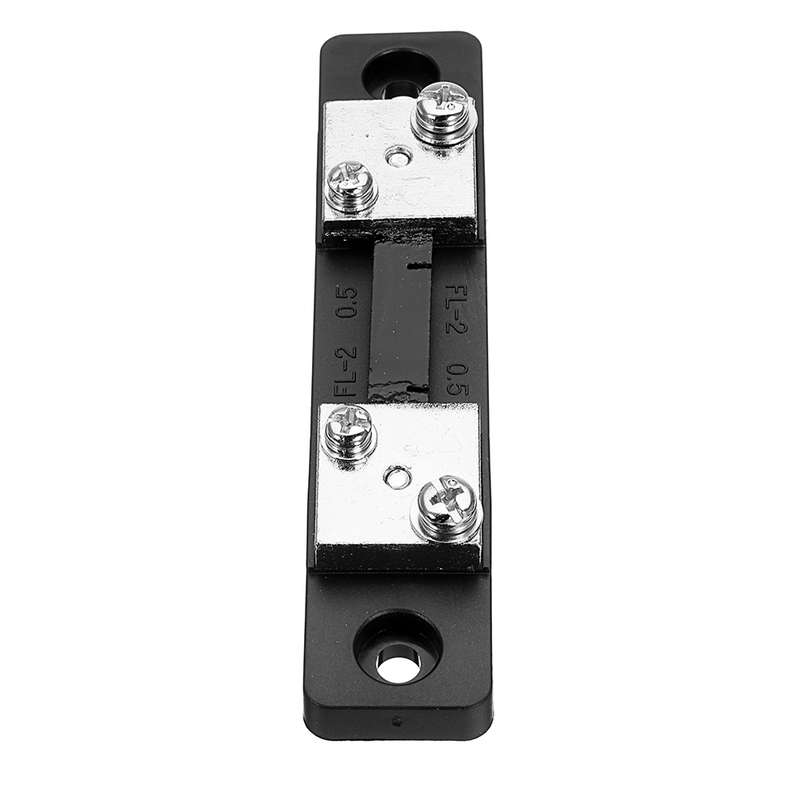

FL-2 Type Ammeter A-Grade 30A 40A 50A75MV GB DC Shunt

FL-2 Type Ammeter A-Grade 30A 40A 50A75MV GB DC Shunt

20 available / new
R369.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
643379472
Use: Fixed-valued fixed-flow shunts are used to expand the meter's measurement current range. Technical Parameters: 1. Accuracy level: 2-4000A; 0.5 level; 5000~10000A; Level 1 2. Environmental conditions: -40~+60ᆪC, relative temperature a95% (35ᆪC) 3. Mechanical resistance: It can withstand the acceleration of the second and the impact frequency of 80~120 times per minute for 6 hours of transportation. 4. Overload performance: rated current 120%, 2 hours. 5. Voltage drop: 50mV 75mV 100mV. 6. Heat under load: After the temperature rise changes to stabilize, the rated current does not exceed 80 ᆪC below 50A; the rated current does not exceed 120 ᆪC above 50A.

Note: This product complies with JB/T 9288-1999, GB/T 7676-1998, IEC 61010-1:1999 standard
Feature:

The accuracy of the FL-2 series shunt is: 0.5. Specification range: 1A-15000A Secondary voltage: 20mV, 30mV, 50mV, 60mV, 75mV, 100mV, 150mV, etc., conventionally 75mV.

Package includes:

1 xDC Shunt

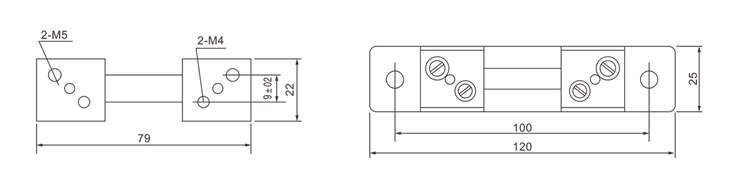

Dimensional: (unit: mm)
