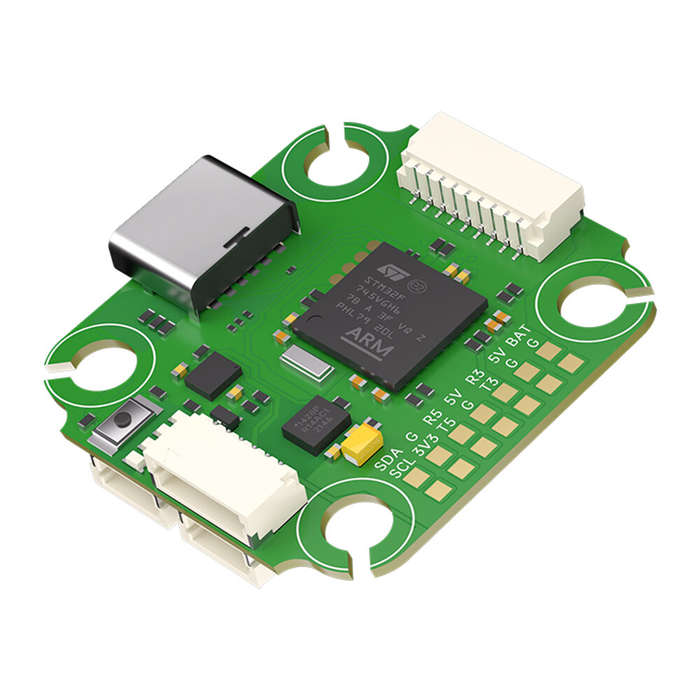

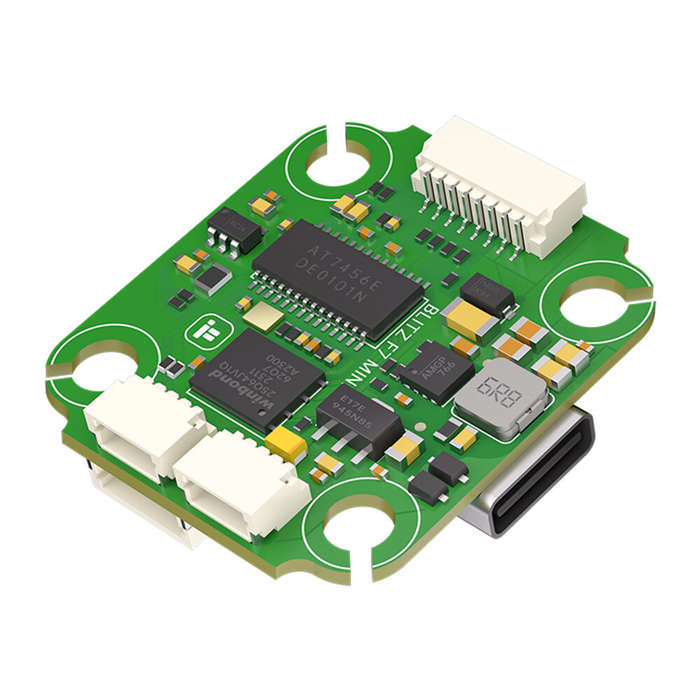

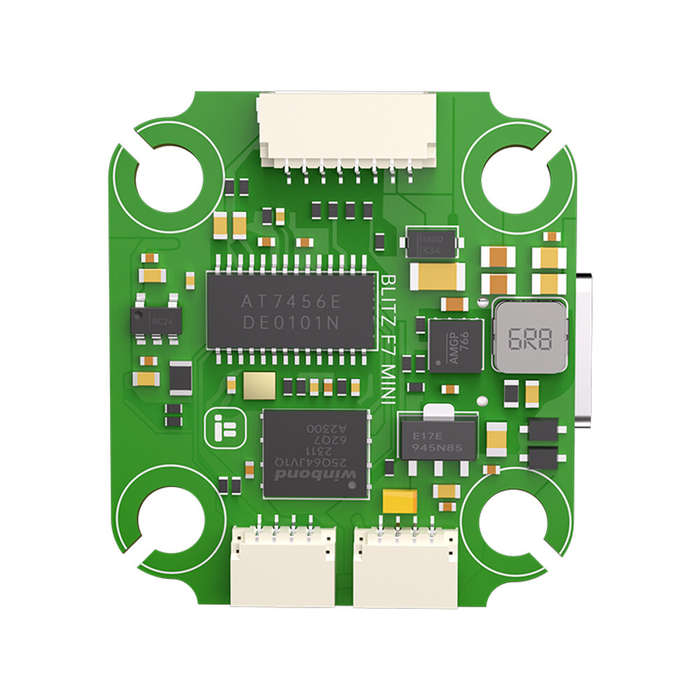

Flight Controller Module - 20x20mm iFlight BLITZ Mini F745 OSD Flight Controller with 5V BEC Output Flight Controller Module - 20x20mm iFlight BLITZ Mini F745 OSD Flight Controller with 5V BEC Output Flight Controller Module - 20x20mm iFlight BLITZ Mini F745 OSD Flight Controller with 5V BEC Output
Flight Controller Module - 20x20mm iFlight BLITZ Mini F745 OSD Flight Controller with 5V BEC Output Flight Controller Module - 20x20mm iFlight BLITZ Mini F745 OSD Flight Controller with 5V BEC Output Flight Controller Module - 20x20mm iFlight BLITZ Mini F745 OSD Flight Controller with 5V BEC Output

Flight Controller Module - 20x20mm iFlight BLITZ Mini F745 OSD Flight Controller with 5V BEC Output

New 1 available
Indicative market price: R2,477.48
Only 1 left – grab it before it’s gone!
R1,621.58
35% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
There are various locker and counter collection points across South Africa.
View locations
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
2018247-POA10927551
Bob Shop ID
652213880

Specifications:

Brand: iFlight

Model: BLITZ Mini F745

MCU: STM32F745
Gyro: ICM42688
Barometer: DPS310
OSD Chip: AT7456E
Flash: 16MB (Blackbox flash)
UARTS: 6
Motor outputs: 4x (SH1.0 connector)
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Mount pattern: 20*20mm/4
Dimensions: 30.5*27 mm
Weight: 4.8g
BEC: Output 5V 2.5A continuous output current, 3A peak current (15 seconds)
BF Firmware target: IFLIGHT_BLITZ_F7_AIO
Ardupilot Firmwarearduplane_with_bl

Wiring Suggestion:
UART 1 for VTX HD / Analog
UART 2 for a Receiver
UART 3/4/5 for GPS or other sensors that require a serial port
UART 6 for ESC Telemet

Features:
1.Improved circuit design, better components, and lower electrical noise!
2.DJI HD VTX Connector (Plug-and-Play / No soldering required).
3.FC indica
