Description:

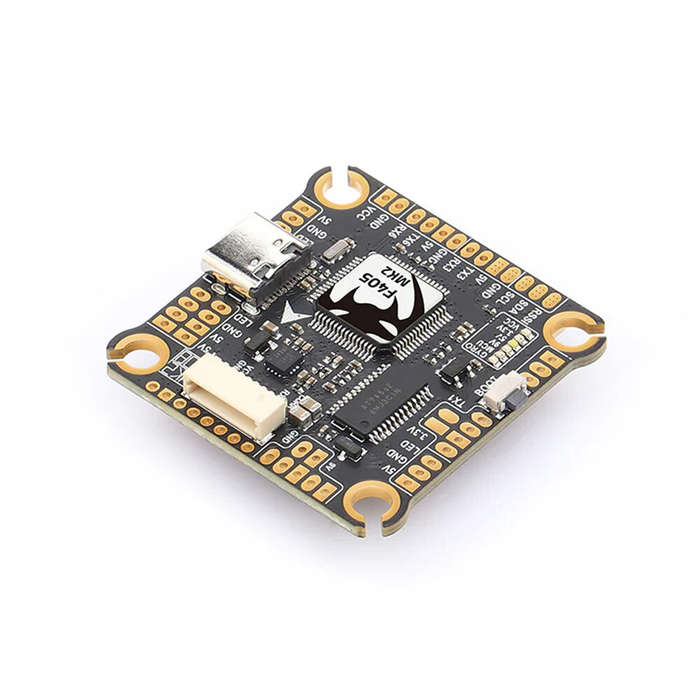

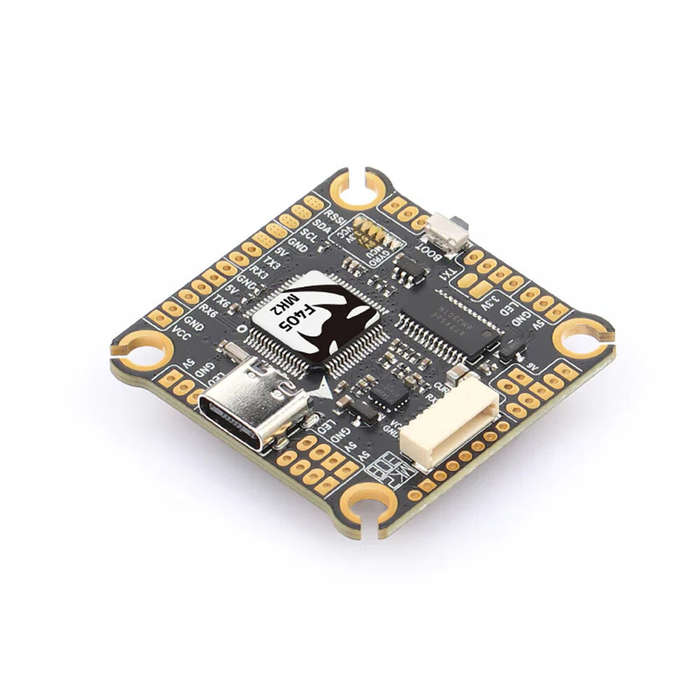

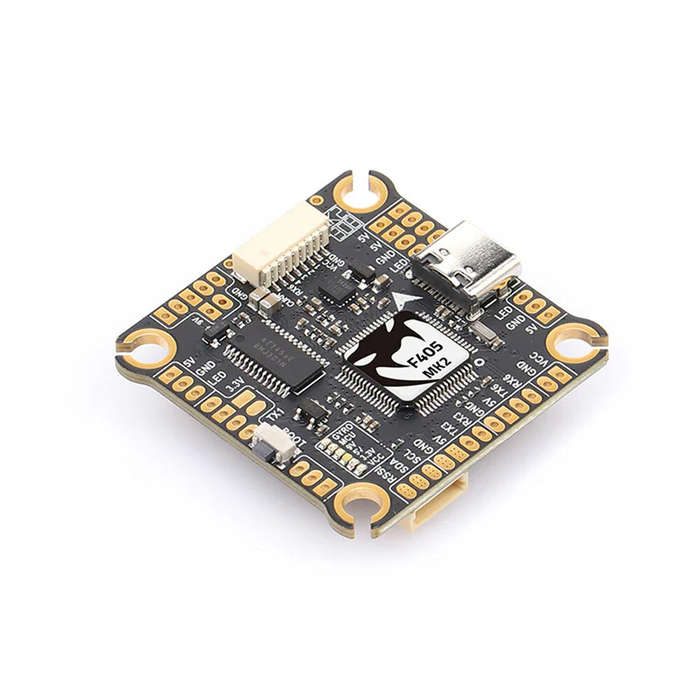

Mamba F405 MK2 is an affordable F4 flight controller with ICM-42688-P gyro. The flight controller has 16MB memory for blackbox, OSD, 5V and 9V BEC. It uses a USB-C connector to connect to a PC. The board also has a connector for easy connection of digital video transmitters and an I2C bus for connecting a compass or barometer. For easy LED installation, pads are available on four sides of the board. The board can be powered by 3-6S batteries and is protected by a TVS diode.
Specification:
Brand: Mamba
Item Name: F405 MK2 V2 Flight Controller
Processor: STM32F405
IMU: ICM-42688-P
Blackbox memory: 16MB
Number of UARTs: 3
BEC: [email protected], 9V@2A
Input voltage: 3-6S
BF Target: FURYF405OSD
Mounting holes: 30.5x30.5mm M3
Size: 38x38x7mm
Package Included:
1x Flight controller
