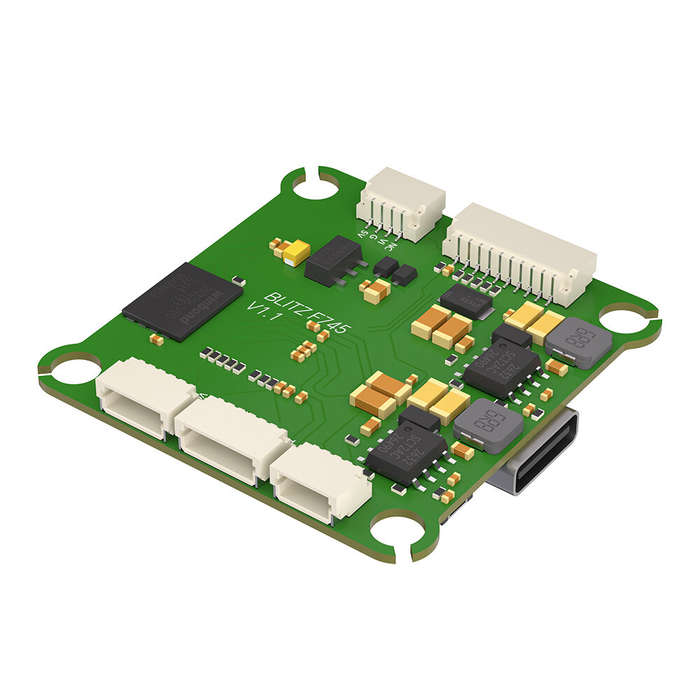

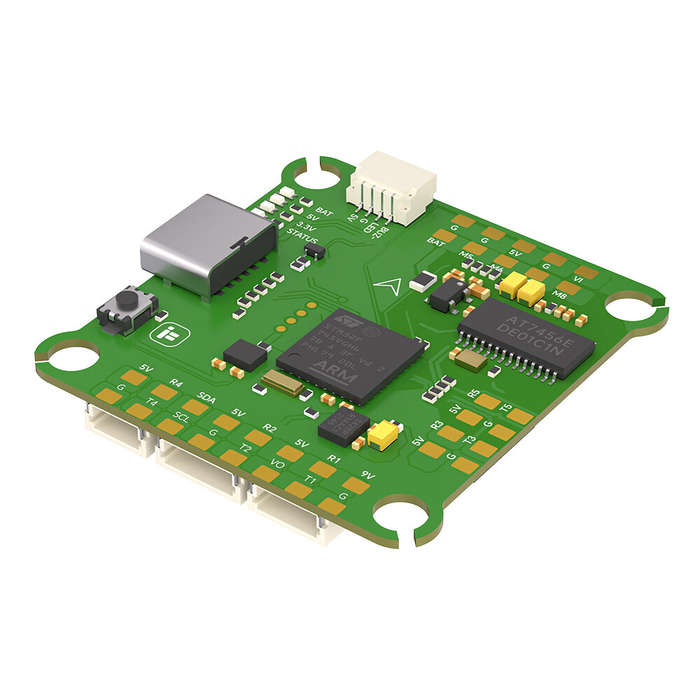

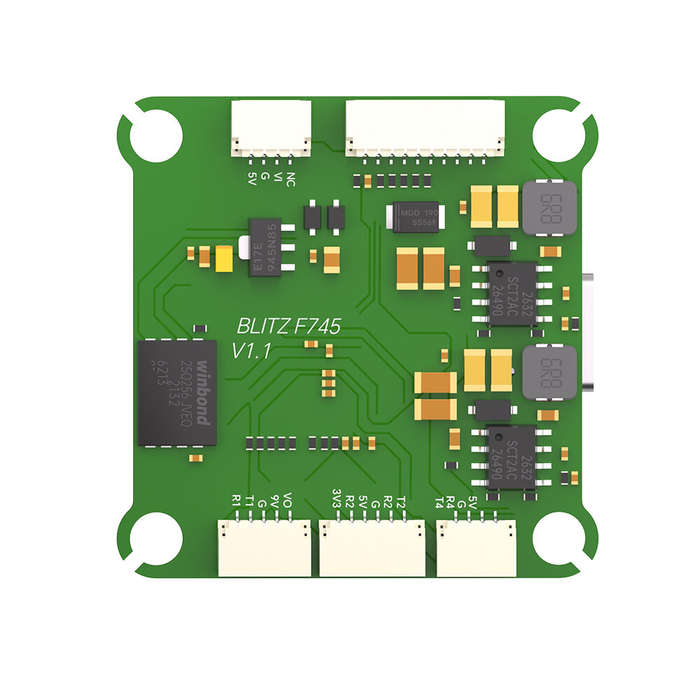

Specifications:
Brand: iFlight
Model: BLITZ F745
Item Name: Flight Controller
MCU: STM32F745
Gyro: ICM42688
Barometer: DPS310
OSD Chip: AT7456E
Flash: 32MB (Blackbox flash)
UARTS: 6
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Mount pattern: 30.5*30.5mm
Dimensions: 36.5*35 mm
Weight: 7.8g
BEC:
Output 5V 2.5A continuous output current, 3A peak current (15 seconds)
Output 9V 2.5A continuous output current, 3A peak current (15 seconds)
BF Firmware target: IFLIGHT_BLITZ_F7_AIO
Ardupilot Firmwarearduplane_with_bl
Features:
1.Improved circuit design, better components and lower electrical noise!
2.DJI HD VTX Connector (Plug-and-Play / No soldering required)
3.FC indicator LEDs for visual debugging
4.Support Betaflight, INAV, Ardupilot firmware
Wiring Suggestion:
