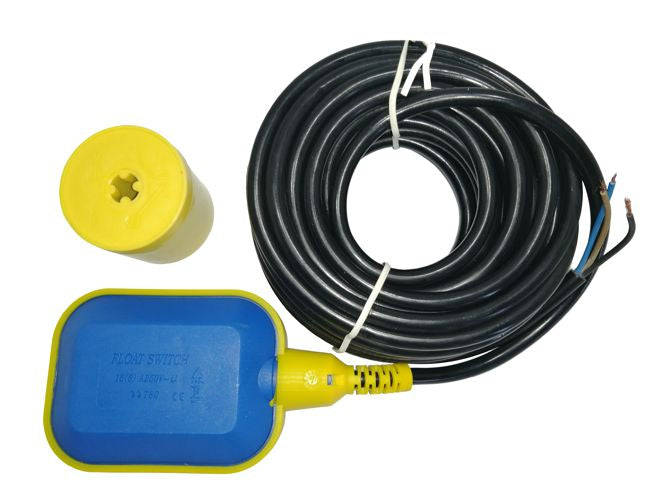

Float Switch with PVC Cable - 5m PVC Cable

Float Switch with PVC Cable. The Float Switch is ideal for JoJo tanks and other enclosed area tanks. Optional sizes from 5m - 20m are now available.

Dispatched in 48 hours - Subject to stock availability from our supplier.

Brand:

Product Features

• Ideal for enclosed area tanks, etc.
• Microswitch with NO and NC contacts.
• Standard PVC cable available in different lengths.

Technical Specs

• Operating Liquid Temperature (Min): 0 C
• Operating Liquid Temperature (Max): 60 C
• Liquid Density (Min): 0.65g/cm
• Liquid Density (Max): 1.5g/cm
• IP Rating: IP 68
• Working Pressure: 0.35 MPa
• Switching Speed: 600/min
• Contact Life: 10 million switches
• Contact Type: Microswitch with NO and NC contacts
• Switching Angle: 20 (from horizontal)
• Max Voltage: 250V AC
• Max Current: 6 amp (COS 0)
• Cable Material: PVC
• Housing Material: ABS - Acrylonine Butadiene Styrene
• Chemical Resistance: Acid - Good | Alkaline - Good
