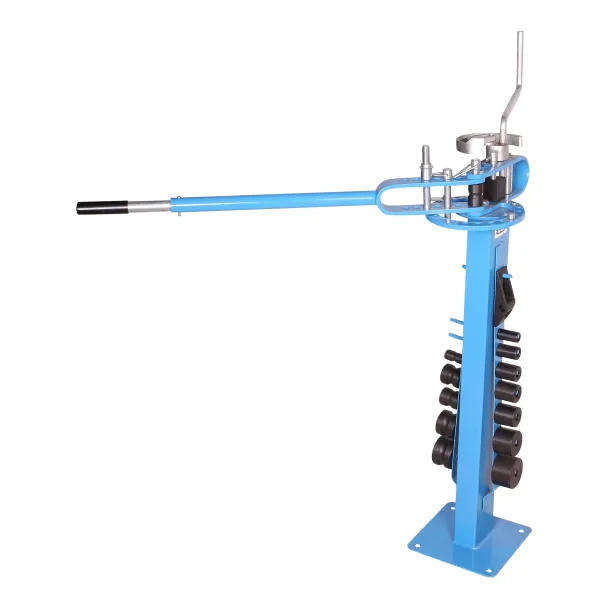

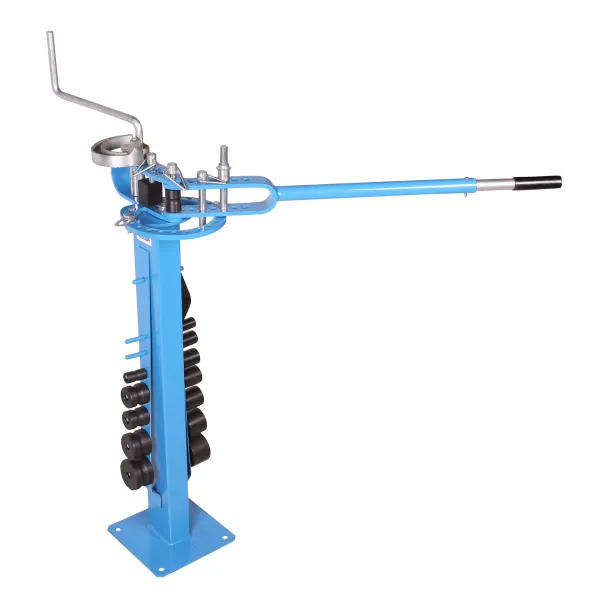

Floor Mounted Steel Bar Bender (Model UBM-30)

Floor Mounted Steel Bar Bender (Model UBM-30)

The UBM-30 Floor Mounted Steel Bar Bender is a robust and adaptable solution for precision metal bending in workshop or field environments. Designed for heavy-duty performance, this unit features a solid steel frame with a wide base plate and four pre-drilled mounting holesperfect for secure attachment to workshop floors, trucks, or agricultural equipment.

Equipped with a 44" telescoping handle, the UBM-30 offers exceptional leverage, reducing physical strain while ensuring smooth, controlled bends. It includes seven bending dies that support a wide variety of profiles, making it ideal for custom brackets, reinforcements, supports, and metal structures. Suitable for construction, fabrication, and farm repair applications, this bender combines durability, power, and versatility in a compact footprint.

Features
Mountable floor-based design with large base plate for maximum stability
44" telescoping handle provides superior leverage for easier manual bending
Bends flat, round, and bar stock with adjustable angles up to 200°
Heavy-duty steel frame ensures reliable operation and long service life
Includes 7 dies for customized shaping and versatile bending needs
Ideal for fieldwork, shop use, structural metal forming, and machinery repair
Simple manual operation with minimal setup required
Compact, rugged construction suitable for both mobile and stationary installations

Specifications
Model: UBM-30
Material Compatibility: Mild steel and flat bar
Mild Steel Capacity: 8 mm × 50 mm (5/16" × 1-1/4")
Flat Bar Capacity: 6 mm × 50 mm (1/4" × 1-15/16")
Maximum Round Bar Diameter: 16 mm (5/8")
Bending Angle Range: 0° 200°
Handle: Telescopic, extends to 44 inches
Construction: Heavy-duty steel, 0.325" frame thickness
Mounting: 4 pre-drilled holes for stable installation
Included Accessories: 7 bending dies for various bar stock types
Weight: 31.36 kg
