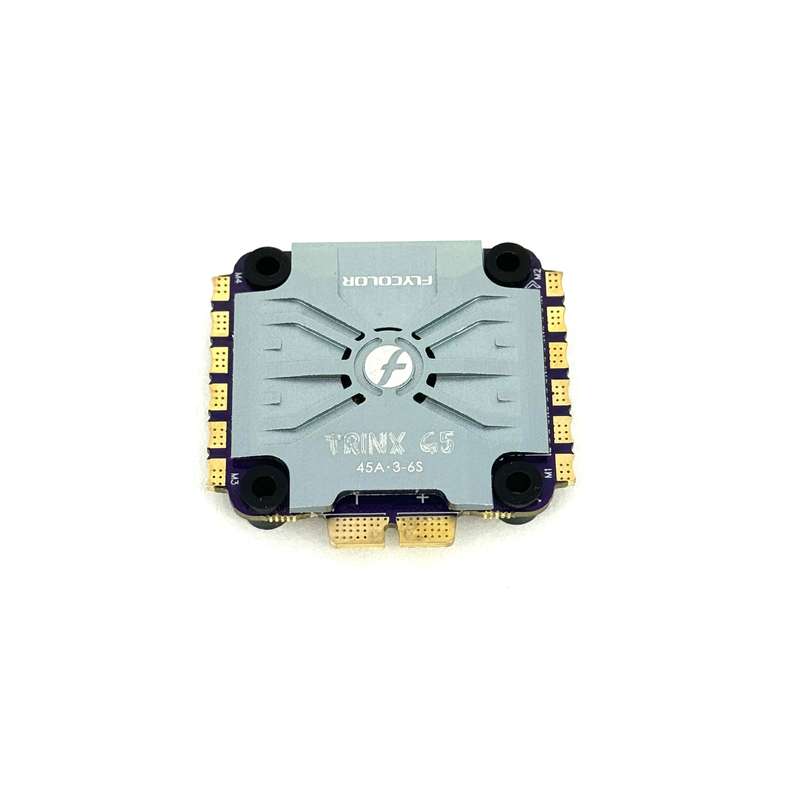

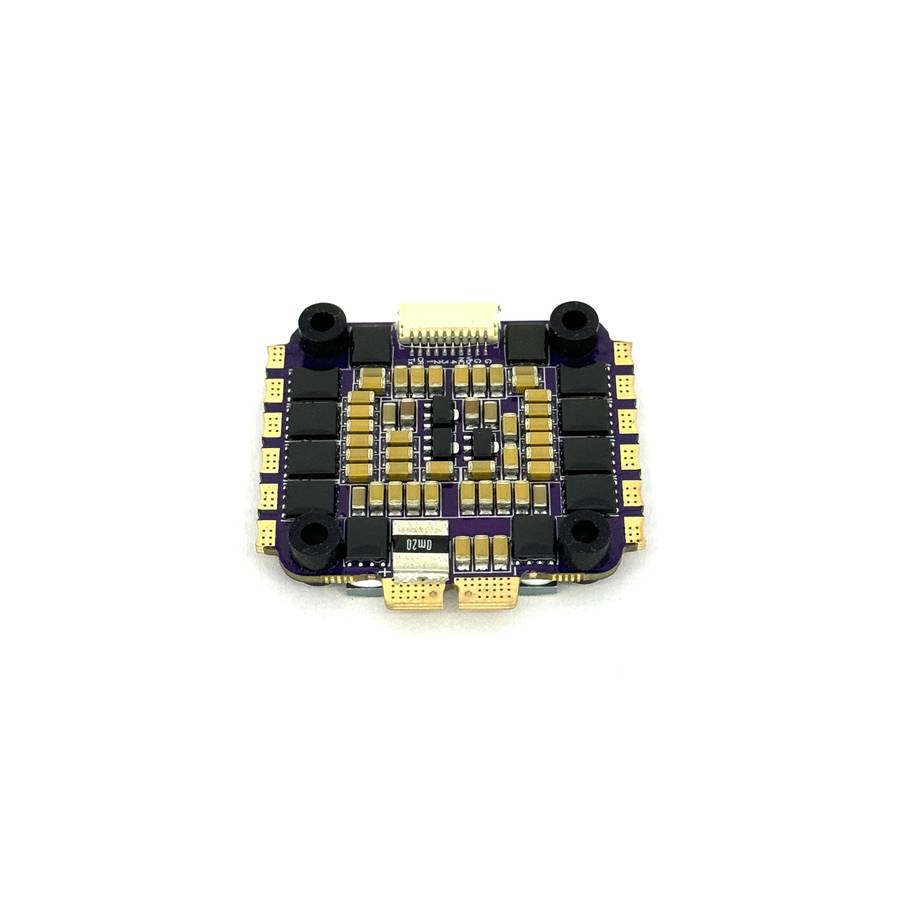

Flycolor Trinx G5 45A BLheli32 3-6S 4IN1 ESC
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Free collection from
Westlake business Park, Westlake
The seller allows collection for this item and will be in contact with the full collection address once the order is ready.
Ready for collection by Friday, 17 May.
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 3 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
South Africa
Product code
FLC016
Bob Shop ID
601681189
Features
- ARM 32-bit Cortex MCU STM32G071, with a frequency up to 64 MHZ, where that's 25% higher than the previous generation of MCU.
- PWM frequency up to 128K, high frequency for higher throttle makes running smoother.
- Multiple Protocols, where all Dshot and Proshot signals are supported
Supports regular 1-2ms pulse width input, as well as Oneshot125, Oneshot42, and Multshot. - 4in1 ESC built-in current sensor and VBAT output.
- Aluminum heat sink, with a large surface area of aluminum heat sink can effectively slow down the temperature rise, hence giving longer and better performance when pushing your quad.
- Damping design, hence reducing the effect of vibration on the flight controller.
Supports higher power load, more suitable for violent flight or racing drone.
Specifications
- MCU:STM32G071
- LiPo Power input: 3-6S
- Cont.Current: 45A
- Burst Current: 55(10s)
- BEC: No
- Weight: 19.6g (with heat sink)
- Dimensions: 45x41x8.3mm
- Mounting holes: 30.5x30.5mm (M3)
- Throttle Calibration: Supported
- ESC Programming: BLHeliSuite32
- Application: 170-450 Multi
- Firmware: Flycolor_Raptor_5
Includes
- Flycolor Trinx G5 32bit 45A 3-6S 30x30 4in1 ESC
- 4x Silicone Vibration absorber
- 5x O-Ring
- 1x Power Cable with XT60
- 1x FC/ESC connector wire
- 1x Low ESR Capacitor
- 1x Heat sink
- User Manual
