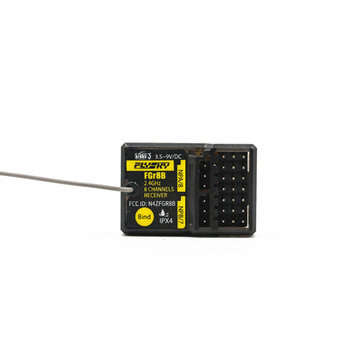

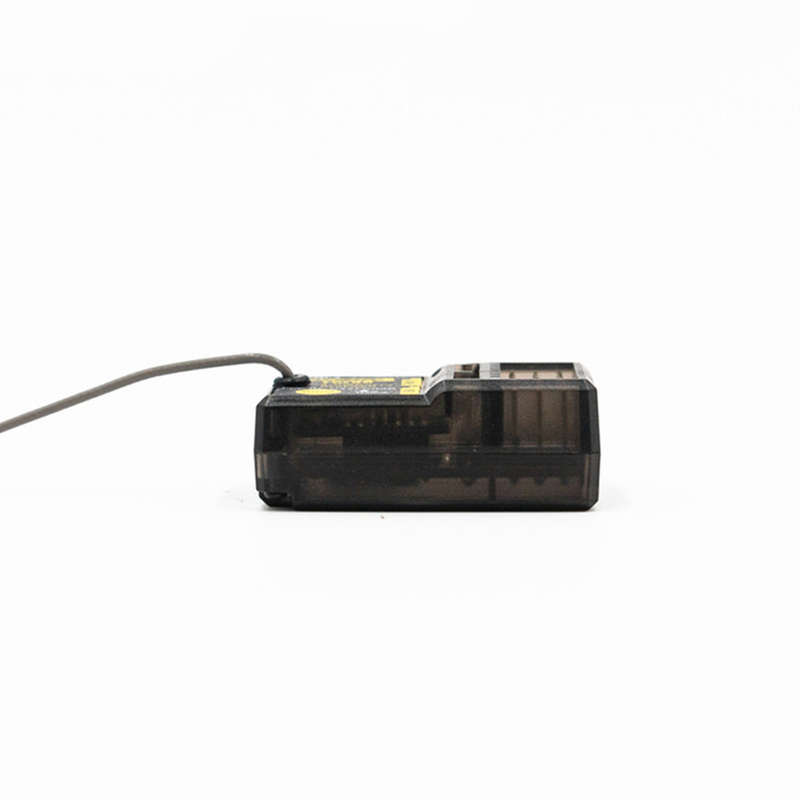

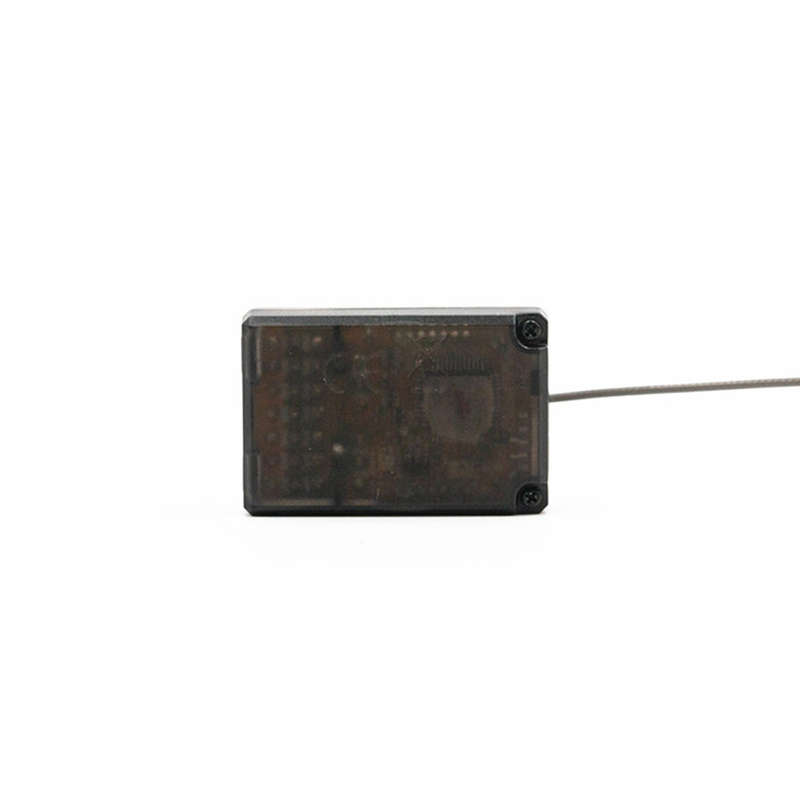

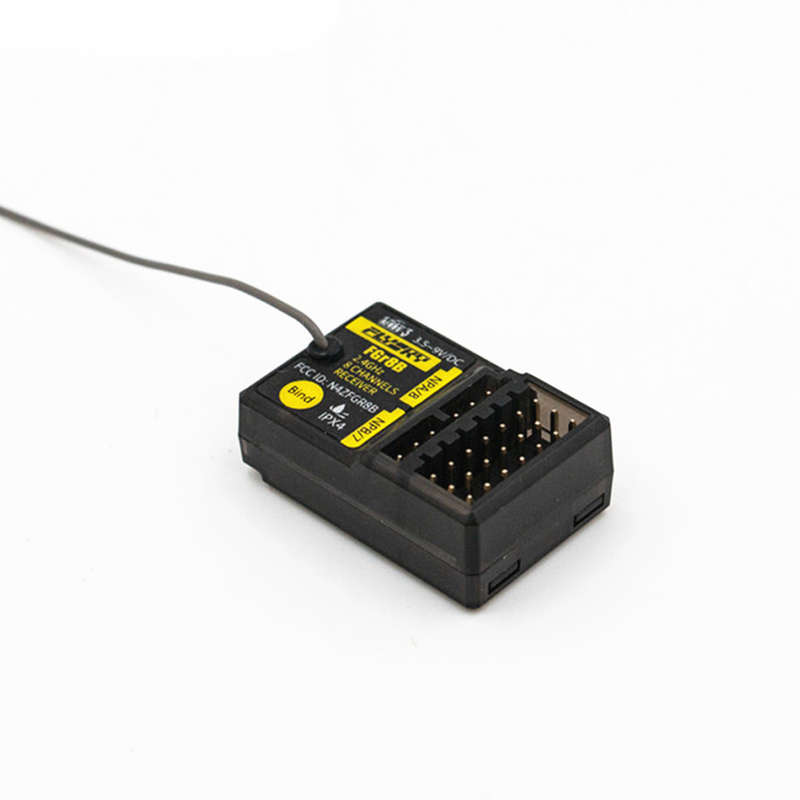

FlySky FGr8B 2.4GHz 8CH AFHDS 3 Micro RC Receiver PWM/PPM/i-bus Output Compatible PL18 NB4/Lite for RC Car Boat
OVERVIEW:
The FGr8B receiver adopts Flysky`s third-generation automatic frequency hopping digital system (AFHDS 3).It uses a single-antenna bidirectional transmission system and is uniquely designed to install and output PWM/PPM/ i-bus in signals. It supports all AFHDS3 transmitter and RF modules.
Description:
Brand Name: FlySky
Item Name: FGr8B Receiver
Model: FGr8B
Weight: 9.4g
Dimensions: 35*23.3*13.3mm
RF: 2.4GHz
2.4G Protocol: AFHDS 3
Antenna: Single Antenna
Input Power: 3.5-9V
RSSI: Support
Data Output: PWMPPMi-bus in
Temperature Range: -10a??a??+60a??
Humidity Limit: 20%-95%
Online Update: Yes
PWM Channels: 7 (Version 2.0 will be upgraded to 8 channels)
Certification: CE???FCC ID:N4ZFGR8B
The FGr8B receiver is compatible with all AFHDS 3 transmitters and RF modules (including PL18, NB4, NB4 Lite, FRM302 etc.)
Binding:
1. Press and hold the receiver BIND button [11] while powering on the receiver, release the BIND button after receiver is powered on, the
LED [12] on the receiver will flash rapidly;
2. Put the transmitter into bind mode;
3. The binding process is complete when the LED on the receiver stops flashing and is on continuously.
- If a transmitter that has had its radio frequency (RF Standard) set to a??AFHDS3 1 waya?? (please refer to your transmitter user manual)
enters bind mode, the receiver LED will instead flash slowly. Exit bind mode on the transmitter and if the receiver LED stops flashing
and is on continuously, the binding process is complete.
4. Check to make sure the transmitter and receiver functions are working correctly, repeat steps 1 to 3 (binding process) if any problems arise.
Forced update:
If after a firmware update is performed and the transmitter is unable to bind to the receiver, the receiver may need to be put into forced update times.
1. Power on the receiver while pressing the BIND button [11] for then approximately ten seconds until the LED [12] flashes three times,release the BIND button.
2. Go to the RX Setup menu on your transmitter and select a??RX Updatea??.
3. When the receiver LED flashes slowly, the update is successful.
Failsafe:
This function protects your vehicle by preventing unexpected behaviors in cases of signal lost.
1. Users should always input Fail Safe parameters before operating their vehicles. If the Fail Safe function has not been set on the transmitter and signal lost occurs, the receiver will continue to operate and maintain all output value at the last received instructions from the transmitter. If the Fail Safe parameters on the transmitter has set been set, the receiver will set output values according to user parameters during signal lost.
Package Included:
1 x FGr8B Receiver
