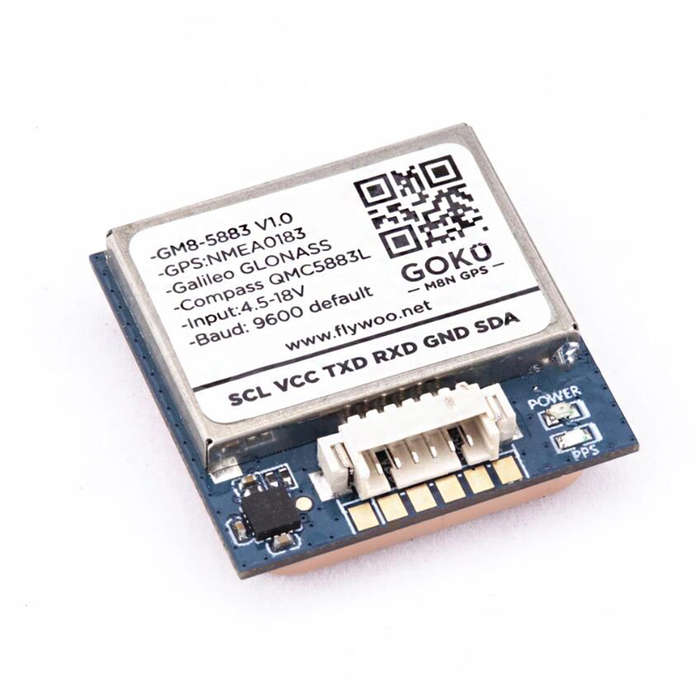

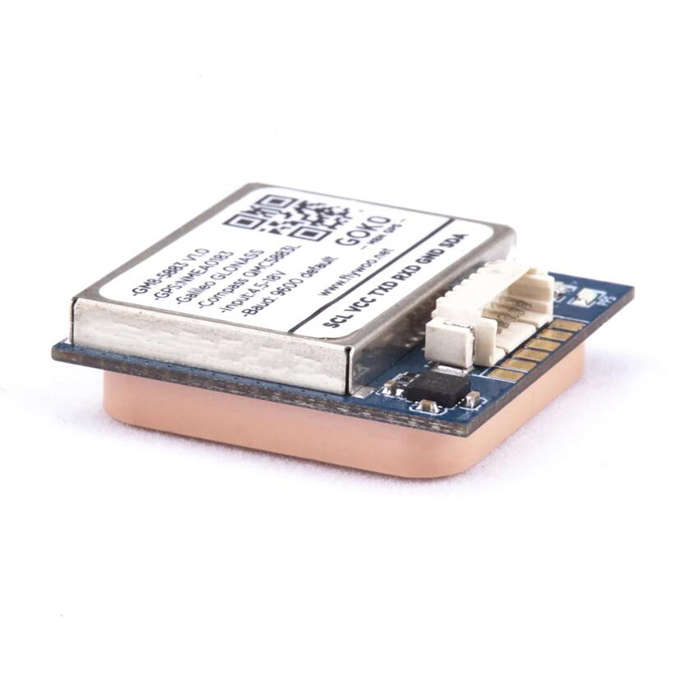

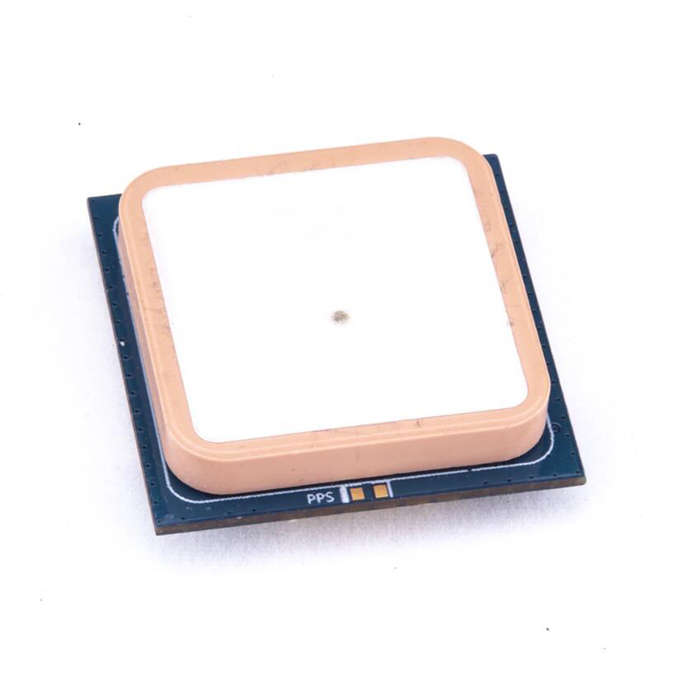

FLYWOO GM8-5883 V1.0 GPS GLONASS Module with Compass Dual Module for Flight Controller RC Drone FPV Racing
Description
Brand: FLYWOO
Model: GM8-5883 V1.0 GPS
Dimension: 28mm*28mm*8.5mm
Weight : 10g
Connector : 1.25mm spacing between the 6pins patch seat
Features:
GPS Module,Dual Module Compass
With electronic compass IC HMC5883L
1.25mm spacing between the 6pins patch seat
Specification
Electrical Characteristics
Chipset : M8030-KT
Receiving Format : GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1
Channels : 72 Searching Channel
Sensitivity
Tracking : -167dBm
Reacquisition : -160dBm
Cold start : -148dBm
Hot start : -156dBm
Accuracy
Position Horizontal : 2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky)
Velocity : 0.1m/sec 95% (SA off)
Timing : 1us synchronized to GPS time
Acquisition Time
Cold Start : 26s
Warm start : 25s
Hot start : 1s
Data and Update Rate
Support Rate : 4800bps to 921600bps,Default 9600bps
Data Level : TTL or RS-232,Default TTL level
Data Protocol : NMEA-0183 or UBX, Default NMEA-0183
Single GNSS : 1Hz-18Hz
Concurrent GNSS : 1Hz-10Hz,Default 1Hz
Operational Limits
Altitude : 50,000m Max
Velocity : 515m/s Max
Acceleration : Less than 4g
Power consumption
VCC : DC Voltage 4.5V-18V
Current : Capture 50mA/5.0V
Operating temp :???-40 ?ﾣC ~ +85?ﾣC
Storage Temp : -40?ﾣC ~ +105?ﾣC
Indicator :
TX LED:RED.The data output, TX LED flashing
PPS LED:red.PPS LED not bright when GPS not fixed,flashing when fixed
The Modulea??s Pins : SCL VCC TX RX GND SDA
Package Included:
1 x GM8-5883 V1.0 GPS Module
1 x 30cm Cable
